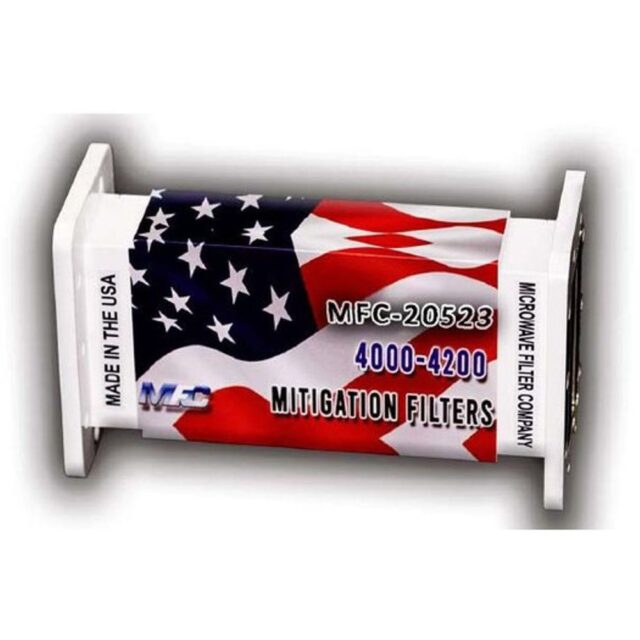

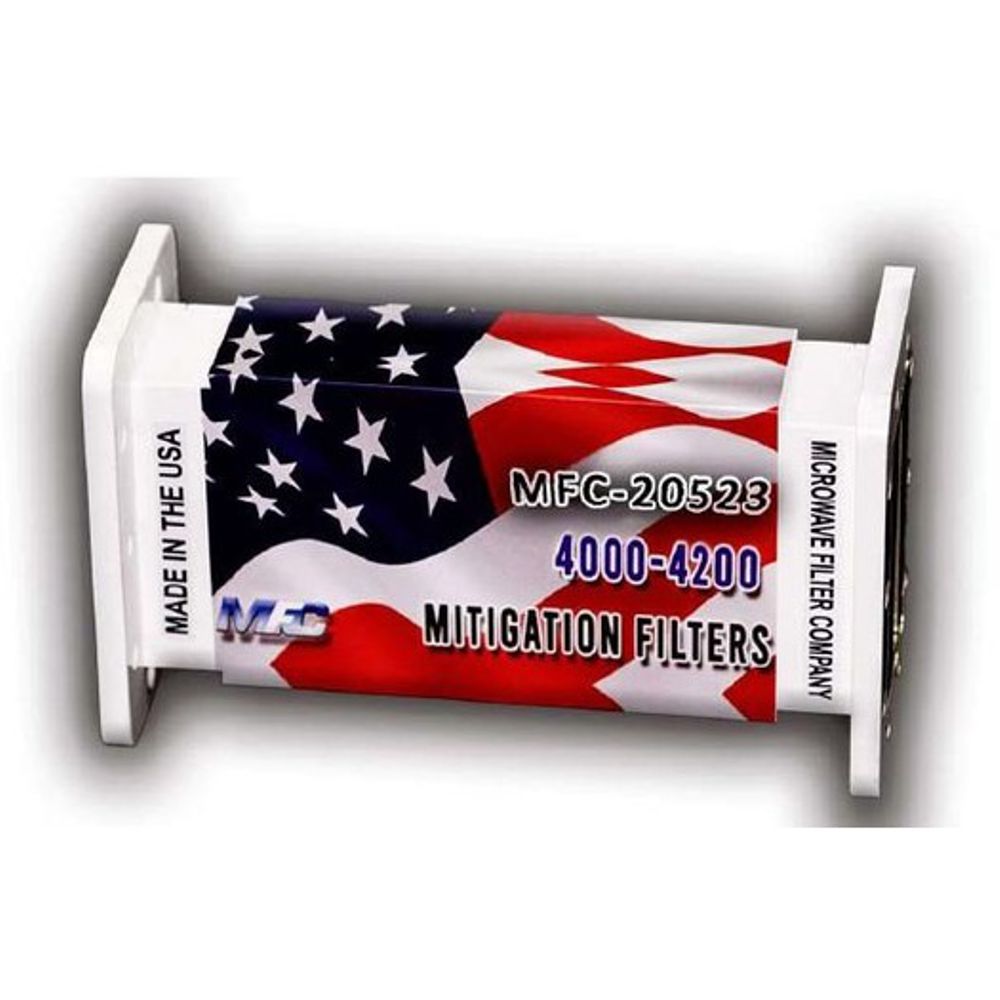

20523 C Band Repack Filter (Blue), 4000 to 4200, 5G interference filter
$470.00 Each
This is the phase II filter needed by December 5, 2023)
Stops 3700-4000 MHz
Ideal for eliminating interference from 5G and virtually any other potential source of out-of-band interference.
The model 20523 combines innovative design techniques with the solid performance of its renowned predecessors.
C-Band Interference Filter 4000-4200 MHz
Usually ships same business day1 Year Limited Warranty
Specifications
- PASSBAND: 4000-4200 MHz
- INSERTION LOSS:
FROM 4000-4005 MHz: 1.4 dB MAX, ±0.2 dB
FROM 4005-4200 MHz: 1.2 dB MAX, ±0.2 dB - RETURN LOSS: 20 dB MIN
- GROUP DELAY VARIATION: 1.45 nSEC TYP ±0.5 MHz FROM ANY FREQUENCY WITHIN PASSBAND
- REJECTION:
70 dB MIN FROM 3700 TO 3900 MHz
60 dB MIN FROM 3900 TO 3980 MHz
30 dB MIN FROM 3980 TO 3985 MHz
25 dB MIN @ 4230 MHz - FLANGES: CPR229G (INPUT) CPR229F (OUTPUT)
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
Brand
Microwave Filter Company
"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.
