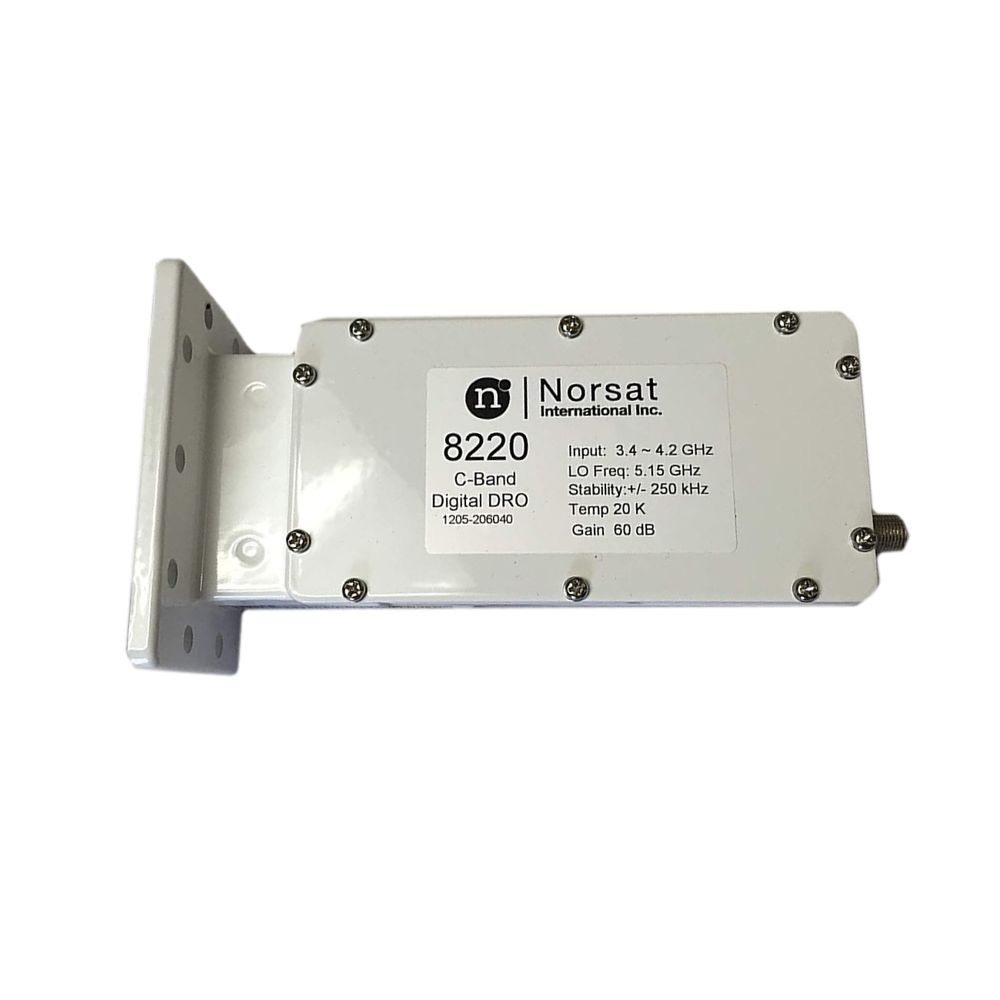

8220F C Band LNB, 20°, 250 KHz L.O.

$128.00

FREQUENCY BANDS AVAILABLE
Typical Service
Input Frequency (GHz) 8000:  3.40 to 4.20  |  8000I:  4.50 to 4.80
L.O. Frequency (GHz) 8000:  5.15  |  8000I:  5.95
Output Frequency (MHz) 8000:  950 to 1750  |  8000I:  950 to 1450



Full Description & Specs
Safe Checkout

TYPICAL SPECIFICATIONS

Noise Temperature 15K to 30K depending on model number
L.O. Stability ±150 kHz to ±500 kHz (over temperature excl offset) depending on model number
Phase Noise (SSB) -65 dBc/Hz at 1kHz  |  -80 dBc/Hz at 10kHz  |  -95 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.2 : 1
Conversion Gain 64 dB
Output P1dB 8 dBm
Power Requirements +15 to +24 V supplied through center conductor of IF cable
Current Drain 130 mA
Input Waveguide CPR 229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm  |  (7.1 x 4.0 x 2.8 in)
Weight 425 g / 15 oz
Temperature Range -40°C to +60°C

Brand

Norsat

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.
8000 Series Spec-Sheet
