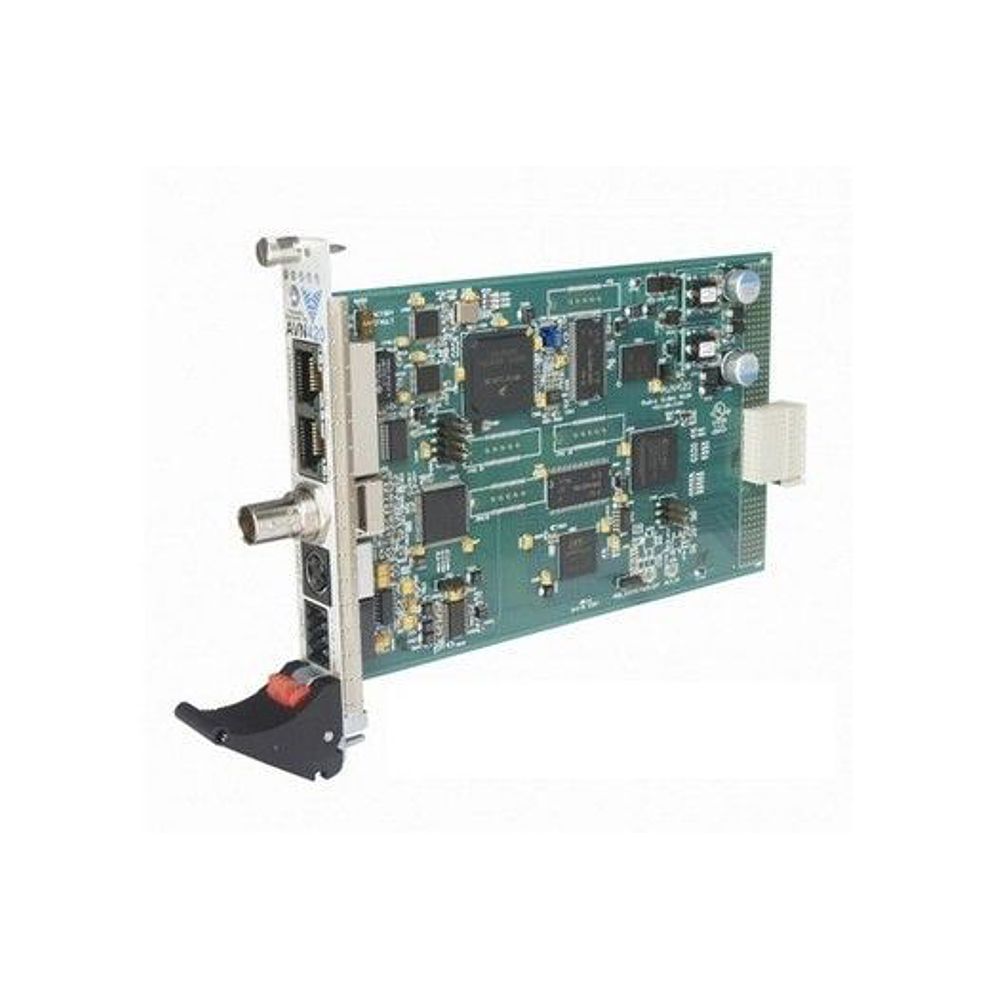

AVN420 SD H.264 IPTV Encoder Blade
Visionary Solutions’ IPTV encoder can turn video from any composite or S-video source into full-screen, full resolution Internet Protocol digital video in real time. The AVN420 encodes standard definition video in an h.264 stream (MPEG-4 Part 10/AVC). It’s used in a Media Processing Platform (MPP), a high density rack mount system. Plug a video source directly into th blade, plug into the network via the RJ-45 connection, and stream real-time digital video over your LAN or WAN. The MPP with AVN420 blades is suitable for all applications requiring cost-effective, low bit rate, standard definition video distribution over IP networks.
Superior Audio/Video Quality
h.264 (MPEG-4 Part 10/AVC) hardware compression and Visionary Solutions’ optimized transmission technology provides a video image at full frame rates and D1 resolution. The video stream can be viewed by an unlimited number of clients on a LAN or WAN with 25fps PAL or 30fps NTSC assured, provided that bandwidth is available. Image resolutions are configurable from D1 (720×480 NTSC, 720×576 PAL) down to 160×120. The video bit rate can be configured from 100 kbps to 4 Mbps. The audio compression is either AAC or MPEG-1 Layer 2 audio encoding at 8 to 384 kbps with up to 48 KHz sample rate.
Video Inputs
The AVN420 includes one BNC composite input and one S-Video input for connecting video source equipment.
Audio Inputs
A terminal block connector provides audio inputs for Balanced and Unbalanced connections. This allows for easy onsite connections regardless of the cabling outputs of the audio source. The AVN420 features user control of audio parameters, including mute, pre-amp and volume.
External Device Connections
The AVN420 includes a serial connection via an RJ-45 connector. This connector can be used as an RS-232 port (fullduplex, no hand shaking) or an RS-422 (full-duplex) port. These ports allow the AVN420 to interface with external devices such as terminal emulation equipment.
Management & Configuration
of the device is accomplished by any of four methods, PackeTV™ Configuration Utility, console menus, a web interface, or the AVN Control Protocol API. TCP/ IP, HTTP, and other Internet-related protocols are supported.
PackeTV™Configuration Utility (included)
enables quick and efficient setup and mass reconfiguration of key settings including bit rate, video resolution and multicast destination IP addresses.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 16 × 12 × 3 in |
