DCWRG Wall Plate Tap

Name: DCWRG Wall Plate Tap
SKU: TCE62109998
Price: 2.15 USD
Availability: InStock

$2.15 Each

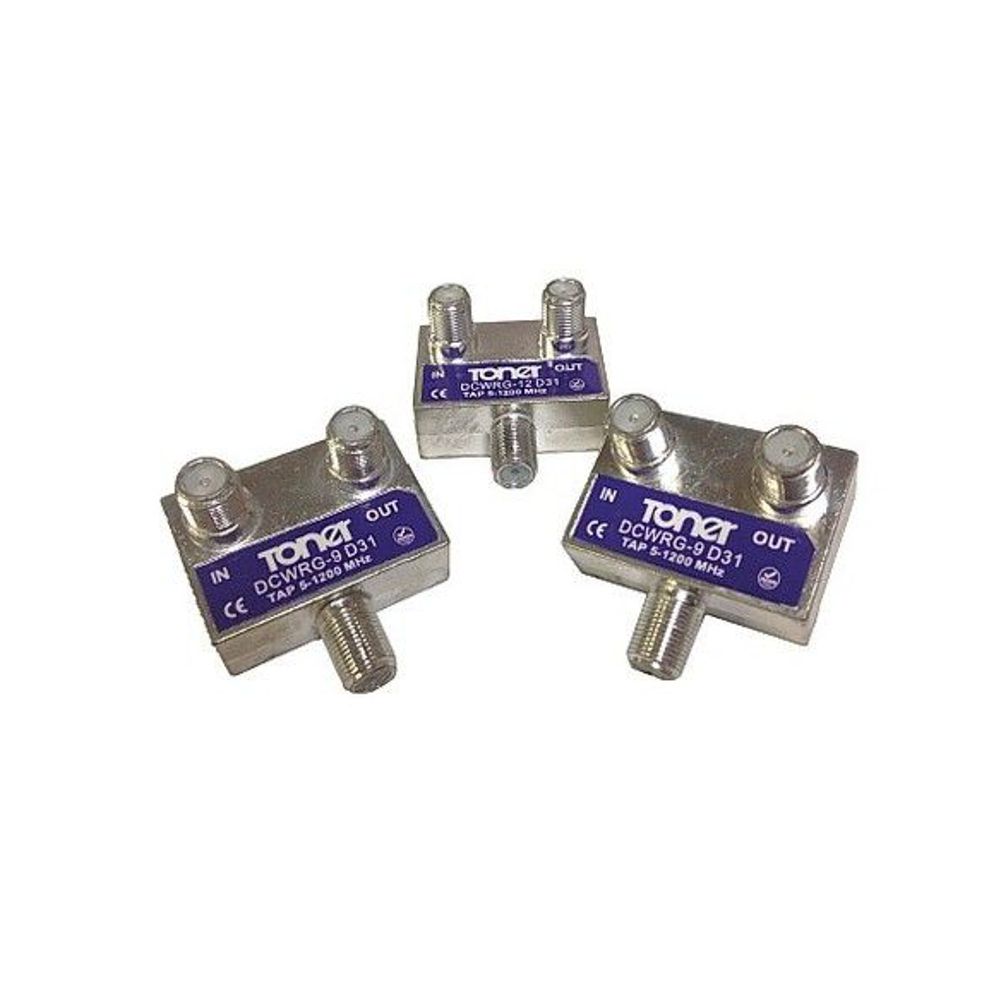

These drop taps from Toner are designed to work in digital systems deploying DOCSIS 3.1 that use the bandwidth from 5 to 1220 MHz. These taps are designed for mounting is a standard duplex wall plate such as the WP-81 or Stainless-steel wall plate model SS-WP38O

By using the latest in ferrite core and winding technology along with premium PC boards and components we have been able to increase bandwidth without any sacrifice in performance. These taps feature a diecast zinc alloy housing with a nickel plating for superior corrosion resistance. Each F port is machined with 3/8-32 UNEF threads to meet SCTE and ANSI specifications and incorporates a patented seal that is waterproof to 15 PSI. The seizure mechanism for the center conductor is also patented and contacts the center conductor on 4 sides and provides more than 200g of retention force which ensures correct electrical contact. The F ports are on 1” spacing which meets SCTE & ANSI specifications.

All of these taps feature DC blocking capacitors on all ports for power isolation protection and for induced spikes protection. These taps feature superior performance, low intermediation distortions and meet or exceed all current industry standards.

Available in 9 different tap values 3, 6, 9, 12, 16, 20, 24, 27 and 30 dB

Full Description & Specs

Usually ships same business day1 Year Limited Warranty

Select An Option

Clear

Solder Back
DOCSIS 3.1 Compatible
5 MHz to 1.2 GHz Bandwidth
Minimum 120 dB RFI Shielding
Low Intermod Distortions < 100 dB
Nickel Plated Zinc Alloy Housing
15 PSI Waterproofed F Ports
200 G Center Conductor Retention
75 Ohm Impedance
Machined F Connectors On 1” Spacing
Blocking Capacitor On All Ports
Integral Ground Block
6 kV Ring Wave Surge Protection

Additional information

Weight	0.10 lbs
Dimensions	2 × 1.5 × 1 in
Select An Option	3 dB, 6, 9, 12, 16, 20, 24, 27, 30
