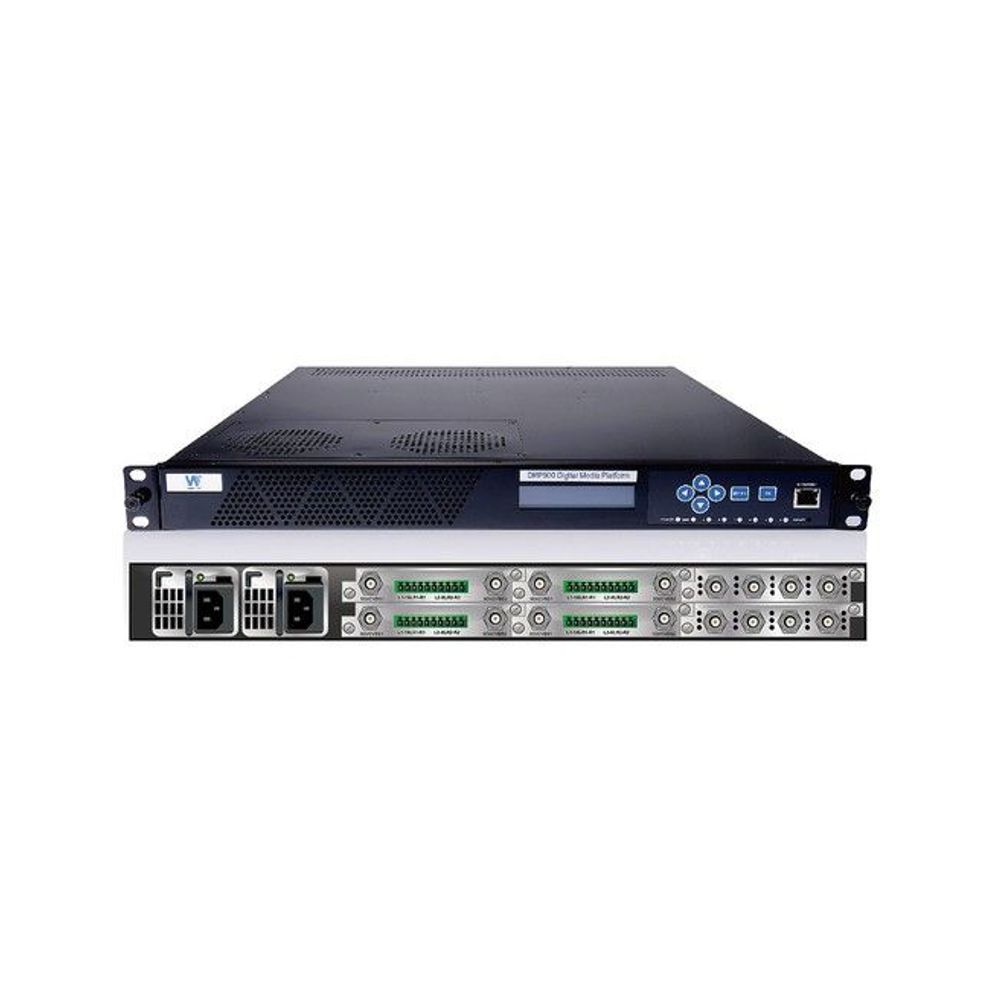

DMP900 Digital Media Platform
$2,550.00 Each
The DMP900 is Wellav’s most advanced product for service operators. It provides proven headend technology in a compact, 1RU chassis. With over 30 different input and output module options that can be combined as needed, it offers a true, comprehensive video delivery solution. Whether it is for multiplexing, receiving, encoding, transcoding, modulating, scrambling or descrambling applications, the DMP900 provides more capacity, flexibility and reliability while requiring less space, fewer connections and less power.
24/7 Non-stop Service Guaranteed
DMP900 offers the best reliability with redundant power supply and I/O design. Each DMP900 has been tested under the strictest aging conditions before delivery. All features give you a guarantee for 24/7 service.
Reduced Rack Space and Energy Savings
The DMP900 modular design reduces the rack space required for your headend system. This design also offers a 40% reduction in energy usage and simplifies the headend system operation and maintenance.
Flexible Distribution with Any-In-Any-Out Features
DMP900 has a variety of popular I/O interface modules that can be easily integrated into a new or existing video distribution networks for Digital/Cable TV or IPTV/OTT operators.
Easy Management and Configuration
DMP900 comes with a Web GUI or Network Management Software (NMS) which provides operators a convenient way to monitor, manage and configure the installed modules. SNMP protocol is also supported for external management integration on every chassis.
With specific modules, DMP900 provides:
- Any Input to Any Output
- Compact modular design: 1RU with 6 modules
- Multi-Function: multiplexing, receiving, encoding, transcoding, modulation, scrambling, descrambling and more.
- Power and I/O redundancy
- Hot swappable power supply modules
- Future modules/functions supported
Highly integrated digital TV solution
- 6 module slots in 1RU chassis, with more than 30 different modules to meet any requirements.
Encoding/Transcoding
- Up to 20 SD or 10 HD programs of encoding
- Up to 40 SD or 10 HD programs of transcoding (With 5
- TCHD-M modules and IP module)
- Multi-audio MPG/AAC/AC3 encoding options available
Receiving
- Up to 20 frequencies of DVB-S/S2/C/T/T2/ISDB-T/8VSB receiving
Modulation/Scrambling
- Up to 40-QAM stream modulation
- Up to 20-OFDM stream modulation
- Up to 16 frequencies trans-modulation(DVB-S/S2/T/T2/ ISDB-T/8VSB to QAM/OFDM)
Stream processing
- Up to 6 Gbps processing (approx. 1500 programs)
- 24 ASI ports of multiplexing
- 20 ASI to IP gateways
- Internal multiplexing
- EIT multiplexing
- Supports SI and EPG data insertion
Management interface
- Supports both Web GUI and client-based NMS
- SNMP supported for system integration
- Configurations importable or exportable for easy maintenance
- Signal status monitoring
Additional information
| Weight | 31 lbs |
|---|---|
| Dimensions | 29 × 24 × 7 in |
Brand
Wellav
