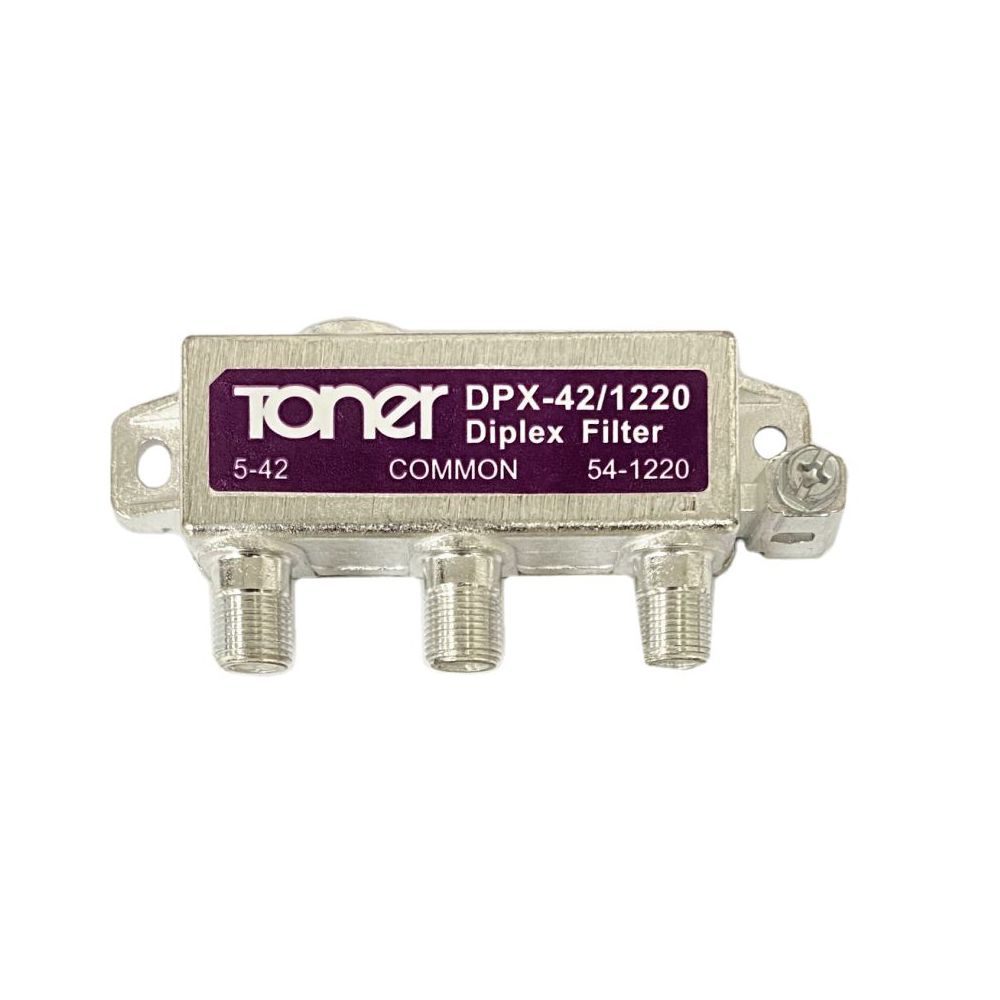

DPX-42-1220 Diplex Filter 5-42/54-1220 MHz
$19.00 Each
Toner’s Diplex Filters are designed for the new DOCSIS 3.1 frequencies but are also compatible with standard 1000 MHz system.
They feature a small compact housing that has a solder back for 120 dB RFI shielding. Three models are available to fit different reverse frequencies 5-85 MHz, 5-42 MHz and 5-204MHz for use depending on system requirements.
The DPX-42 passes to 1222 MHz and the DPX-85, DPX-204 pass to 1794MHz so they are future proof as systems increase bandwidth.
General Specifications
Impedance: 75 Ω
Connectors: “F” Female
Size: 3-1/2” x 1-3/8” x.5/8”
DPX-85-1794
Insertion Loss: (105-1794 MHz)
1dB (typ)/1.8 dB (Max)
Return Loss: (5-85MHz, 105-1794MHz) 18 dB
(typ)/ 14dB (min)
Isolation: (5-85MHz, 105-1794MHz)
50dB (typ) / 45dB (min)
DPX-42-1220
Insertion Loss: (5- 42 MHz)
0.85dB (typ)/1.5 dB (Max)
Insertion Loss: (54-1220 MHz) 1dB(tap)/1.8 dB(Max)
Return Loss: (5-42 MHz, 54-1220 MHz)
18 dB(typ)/ 14dB(min)
Isolation: (5-42 MHz, 54-1220 MHz)
50dB(typ) / 45dB(min)
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 3.5 × 1.375 × 0.625 in |
