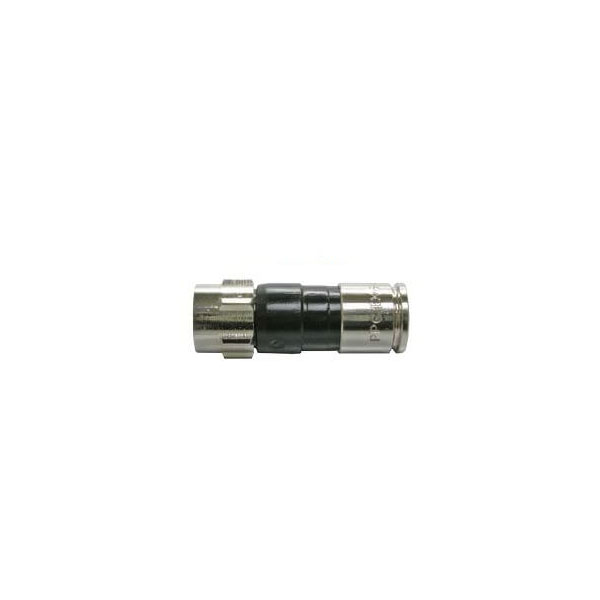

EX6XL Universal RG6 Compression type F connector

$0.49 Each

Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match.

The unique patented design of the EX® body achieves true universality on 60% through Quad Shield for PE, and PVC jackets.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

Bandwidth: 0 MHz to 3 GHz

Impedance: 75 Ohms (nominal)

Return Loss: Minimum -30 dB to 3 GHz

Insertion Loss: Less than .10 dB to 3 GHz

Operating Voltage: 90 V (at 60 Hz continuous AC)

Operating Temperature: -40o F to + 140o F (-40o C to 60o C)

Cable Retention: 45 lbs (20.41 kg) minimum

Additional information

Weight 0.005 lbs
Dimensions 2 × 0.5 × 0.5 in

Brand

Belden

Quality Coaxial Connectivity Solutions Belden is a global leader in end-to-end signal transmission solutions for data,video and audio applications. Our coaxial connectivity solutions productsfeature superior quality, high-performance compression connectors, tools andaccessories for a variety of coaxial installation applications.The patented design features of our Snap-N-Seal®, Double Bubble™ and F-Conn™connector brands provide a secure, dependable connection from start to finish.• TRUE 360º compression technology creating tools and connectors to work together asa complete, intregrated system• Connectors meet/exceed SCTE-IPC and Bellcore requirements• Connectors provides superior pullout strength• One-piece design option on connectors eliminate loose pins and sleeves• Non-blind entry sleeve and pin-guide in one-piece connectors assist with theinsertion of the cable into the connector• Connectors feature internal compression rings to reduce/eliminate water migration
EX6XL Spec Sheet
