EZE-HDMI-4K-IP HDMI over IP Encoder

$440.00 Each

HDMI 2.0, 4K60, 4:4:4 with USB, Audio, IR & RS-232 over IP

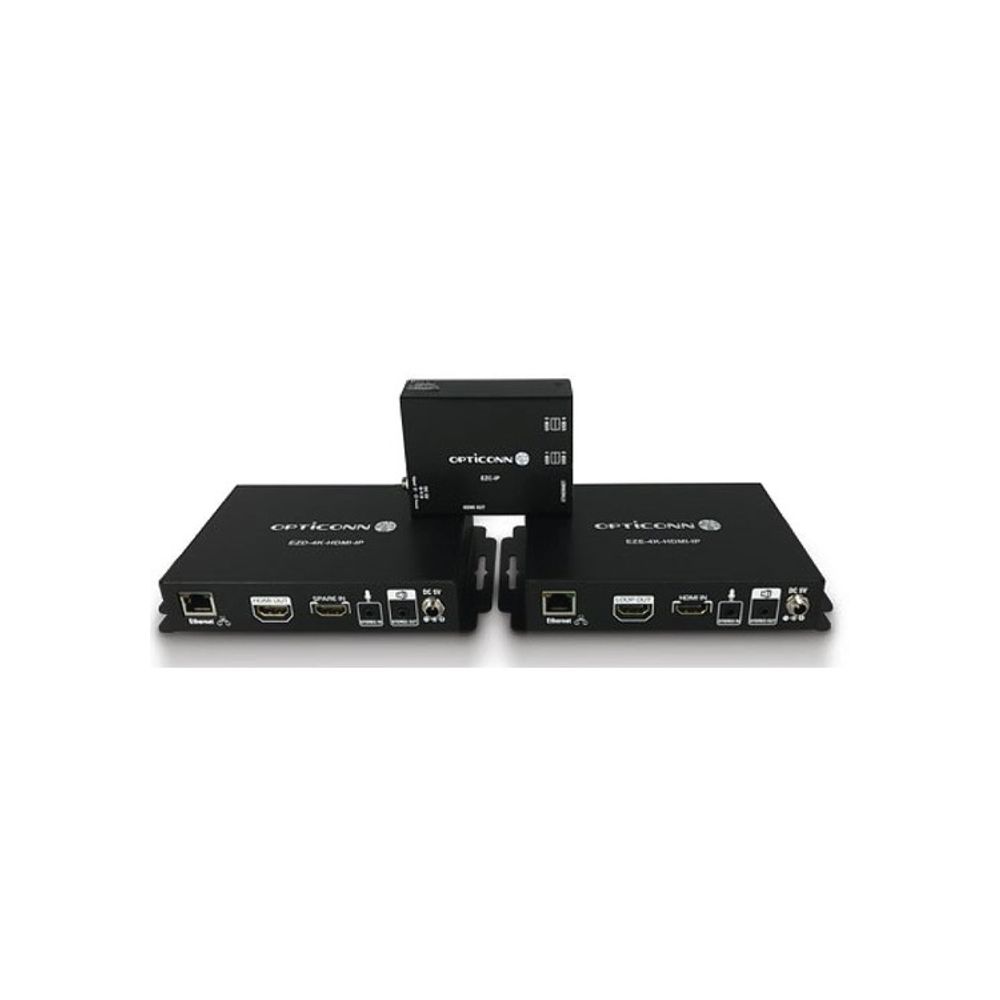

4K EzIP Matrix is the perfect solution for virtually unlimited connectivity of HDMI 2.0 over IP. It is a high quality, IP video matrix solution that distributes HDMI 2.0, 4K60, 4:4:4, 8 bit or HDR, 4K60, 4:2:0, 10 bit video with USB, RS-232 and IR simultaneously over an IP network. It is easily managed and controlled using a centralized controller with a user friendly web UI. The 4K EzIP Matrix consists of extremely low latency (<30 ms) encoding and decoding using the EZE-4KHDMI-IP and EZD-4KHDMI-IP as end points in the network. Each encoder and decoder can be powered via optional POE through a POE enabled Gigabit Ethernet Switch or powered with the provided power supplies. The 4K EzIP Matrix software provides the ability to switch any input to any output in a point to point or point to multi-point configuration, easily set up & configure video walls, manage & control each end point, provide system monitoring with event logging, assign user access privileges and schedule video I/O’s on and off. This powerful, unique, and user friendly software is what makes it easy for anyone to build their own 4K EzIP Matrix.

Full Description & Specs
Ships in 4 to 6 weeks1 Year Limited Warranty
Safe Checkout

  • HDMI 2.0 over IP
  • Resolutions up to 4K60, 4:4:4
  • Extremely low latency: 25ms end to end
  • Virtually unlimited connections
  • Switch & connect with managed Gigabit switch
  • One to one or one to many
  • USB (keyboard/mouse) over IP
  • Bi-directional audio, IR & RS-232 serial data
  • Auto-discovery of all end points in the network
  • Manage & create 4K video walls
  • Easy to use, centralized UI to manage 4K matrix
  • Software control of matrix switching, video walls, managing end points, system monitoring, event logging, scheduling & assigning user access

Additional information

Weight 1.5 lbs

Brand

Opticonn

Provider of leading-edge, cost effective and advanced technologies to the commercial AV markets. Opticonn offers many years of experience and technical expertise, striving to provide the highest quality solutions for AV over fiber and AV over IP networks. Offering the latest technologies to meet market demands for 4K60, 4:4:4, HDMI 2.0, Display Port 1.2, 12G-SDI, IP streaming, IPTV as well as many other advanced fiber and IP solutions for any AV network requirement.
4K EZIP Spec-Sheet
