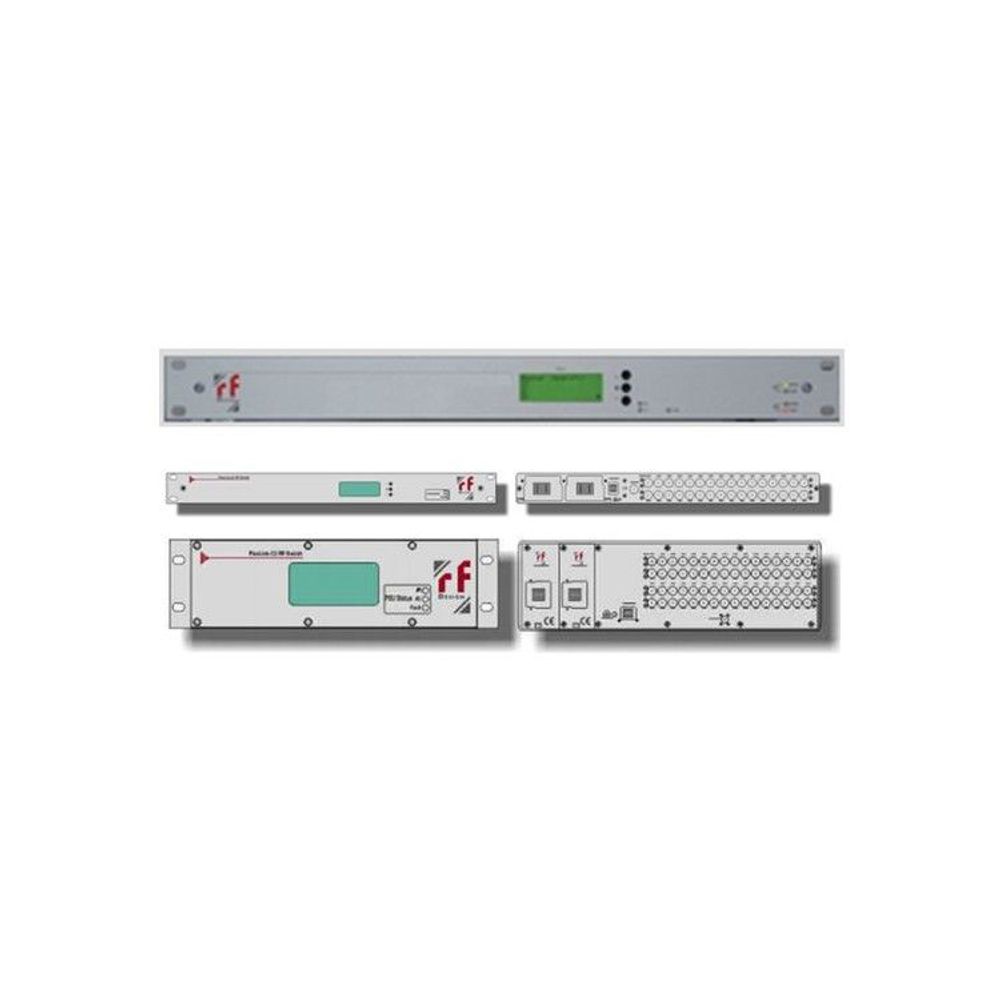

FlexLink C2 Switch Series L Band or IF switch Options from 2 x 1 to 32 x 1

The FlexLink-C2 series represents professional and reliable active RF-switch units available as 2:1, 4:1, 8:1, 16:1, 32:1 (1RU/19″) and 64:1 (3RU/19″) RF-switches allowing to switch the output port to one of the input ports. The units are available either for L-Band (950…2.150MHz) or *IF frequency range (10…200MHz, *upon request only). The FlexLink-C2 RF-switches are perfectly suited for integration in Teleports, Satellite Earth-Stations, as well as Broadcasting and CATV/IPTV architectures. The units feature RF-power monitoring upon request and provide 1:1 power-supply redundancy (hot-swappable). Excellent RF performance assures stable operation and perfect signal quality. A front-panel LC-Display/keypads (1RU/19″) or 5,7″ touchscreen (3RU/19″) allow user-friendly local configuration while remote configuration can be realized via its Ethernet Interface (WEB-GUI/SNMP).

Full Description & SpecsCall 215-675-2053
Safe Checkout

  • Space saving 1RU/19″ or 3RU/19″ (64:1) design
  • 1:1 redundant power-supply (hot swappable)
  • Supports 2:1, 4:1*, 8:1*, 16:1*, 32:1* or 64:1* RF switching (*upon request only)
  • Supports L-Band or IF* frequency range (*upon request)
  • Available with 50Ohm SMA(f) or 75Ohm F(f)/BNC(f) connectors  (see order information)
  • Local control via front-side LC-Display/ keypads (1RU/19″) or 5,7″ touchscreen (3RU/19″)
  • Front-side status LED´s
  • Remote control via Ethernet-Interface (WEB-GUI/SNMP)
  • Remote and front-side alarm, RF-power monitoring* (*upon request)
  • Excellent and stable RF performance

Brand

RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.
FlexLink C2 Spec-Sheet
