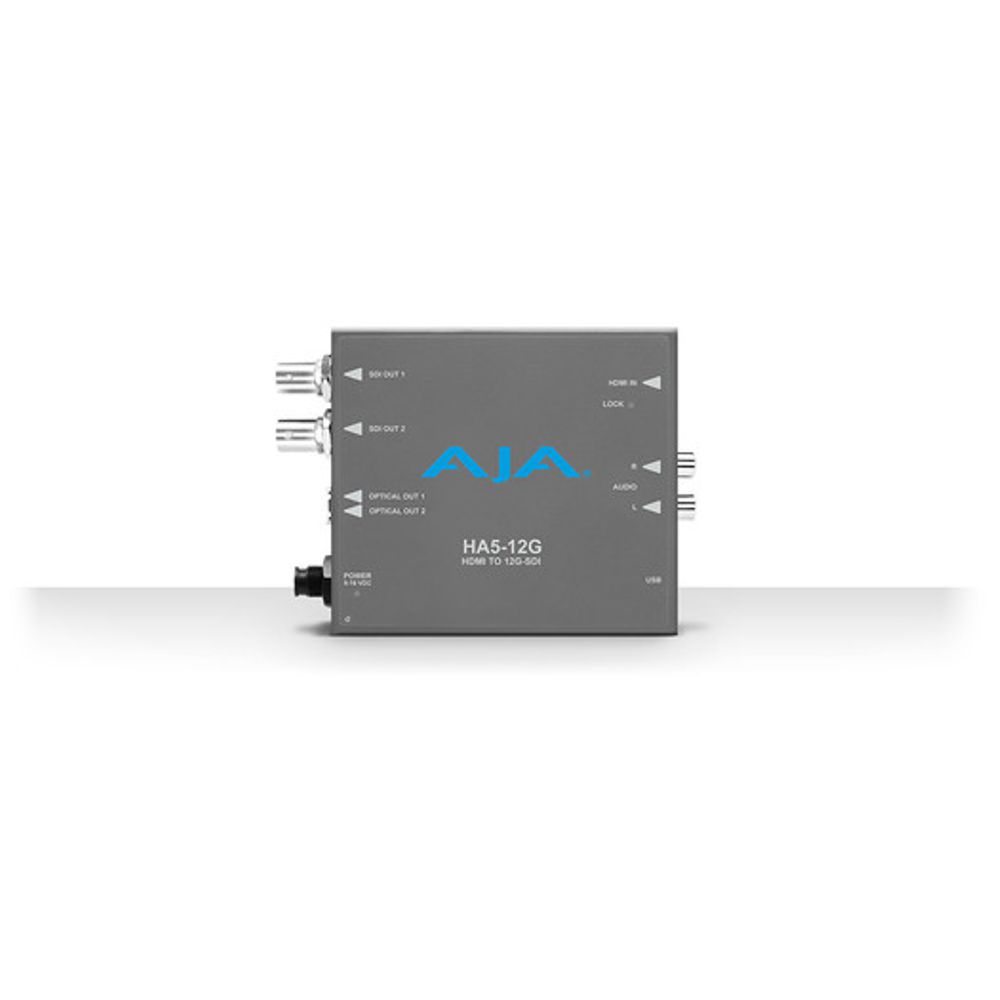

Ha5-12G HDMI 2.0 to 12G-SDI Mini Converter

$999.00 Each

AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.

Fiber SFP equipped HA5-12G models are available (please see separate listings), including the HA5-12G-T single channel transmitter, which extends HDMI source 4K signals over long distances (10 km Single Mode). The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fiber outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.

Full Description & Specs
Ships in 6 to 8 weeks1 Year Limited Warranty
Safe Checkout

  • Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
  • Two 12G-SDI outputs
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Fiber SFP models available
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

Additional information

Weight 3 lbs
Dimensions 8 × 6 × 4 in

Brand

AJA

Digital Video Solutions AJA Video Systems is a leading manufacturer of high-quality and cost-effective digital video acquisition, interface, conversion solutions for professional broadcast, production and post-production. AJA simplifies professional digital video workflows with a line of award-winning products designed and manufactured in Grass Valley, California. AJA was founded by engineer John Abt in 1993. Today the company employs over 200 people worldwide, building industry-leading video capture cards, digital recording devices, video routers, frame synchronizers and scalers, digital converters. AJA’s engineering has consistently supported advancements in broadcast technologies as well as format standards to provide video professionals with future-proof workflow solutions.
