HDE-CSV-QAM/IP MPEG2 HD Encoder

$1,940.00 Each

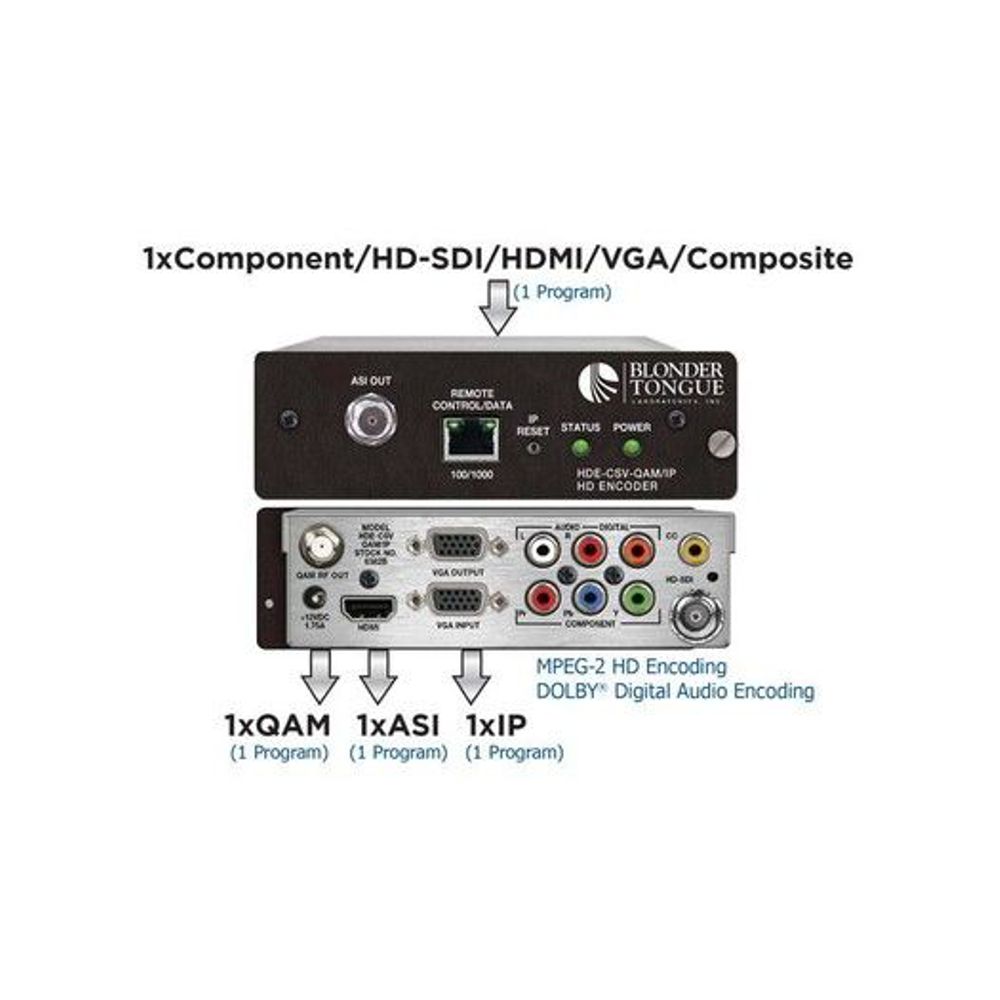

 HDE-CSV-QAM/IP (MPEG-2 HD Encoder – 1xComponent/HD-SDI/HDMI/VGA/Composite – 1xQAM + 1xASI + 1xIP) accepts one (1) high-definition (HD) program from any of the following inputs: 1xComponent, 1xHD-SDI, 1xHDMI (unencrypted), 1xVGA, and 1xComposite. MPEG-2 encoded outputs are available in the following formats simultaneously: 1xQAM, 1xASI, and 1xIP (100/1000Base-T Ethernet). The QAM RF output is frequency agile over the entire CATV frequency range of 5-1002 MHz (channels T7 to T14, 2 to 158) with an output level of +40 dBmV.

The encoder supports Dolby® Digital audio encoding, and Closed Captioning (EIA-608 and EIA-708). Comprehensive remote monitoring and control is accomplished using any standard Web browser via a front-panel 100/1000Base-T Ethernet connection. A rear-panel VGA output port is available for loop-through applications.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • Accepts one program from any of the following inputs: 1xComponent, 1xHD-SDI, 1xHDMI (unencrypted), 1xVGA, and 1xComposite
  • Simultaneously delivers the following outputs: 1xQAM, 1xIP, and 1xASI
  • Full QAM output channel coverage from 5 to 1002 MHz (T7 to 158)
  • Provides +40 dBmV QAM RF output level
  • Provides comprehensive GUI-based monitoring and control via standard Web browsers
  • Compact design permits installation of up to 3 Encoder modules in 1RU
  • Supports Real-time Dolby® Digital audio encoding
  • Supports user-defined PSIP configuration
  • Supports Closed Captioning EIA-608 and EIA-708

Additional information

Weight 2.5 lbs
Dimensions 20 × 8 × 6 in

Brand

Blonder Tongue

Solutions for All Your Applications Blonder Tongue Laboratories, Inc. offer customers more than 130 years of combined engineering and manufacturing excellence with a solid history of delivering reliable, quality products. As a leader in the field of Cable Television communications, they provide system operators and integrators serving the cable, broadcast, satellite, IPTV, institutional and professional video markets with comprehensive solutions for the provision of content contribution, distribution and video delivery to homes and businesses. The B-T designs, manufactures, sells and supports an equipment of SD/HD digital video solutions, as well as core analog video and high speed data solutions for distribution over coax, fiber and IP networks. For over 60 years, Blonder Tongue has customized cost-effective solutions for the broadcast, hospitality, education, healthcare, government, sports, entertainment, and enterprise markets. From supporting major broadcast networks to campuses, hotels, stadiums, and airports Blonder Tongue has its customers’ needs covered. Blonder Tongue was founded in 1952, in Old Bridge, NJ by Ike Blonder and Ben Tongue. The company started building Amplifiers or boosters for TV antennas and also building TV antennas. Ike was awarded a patent for inventing the log-periodic television antenna. In the following years, Blonder Tongue expanded their range of products to support the growing Cable TV industry. In 1972, Toner Cable became a stocking distributor for Blonder Tongue and today is their largest stocking distributor worldwide.
HDE-CSV-QAM/IP Spec-Sheet
