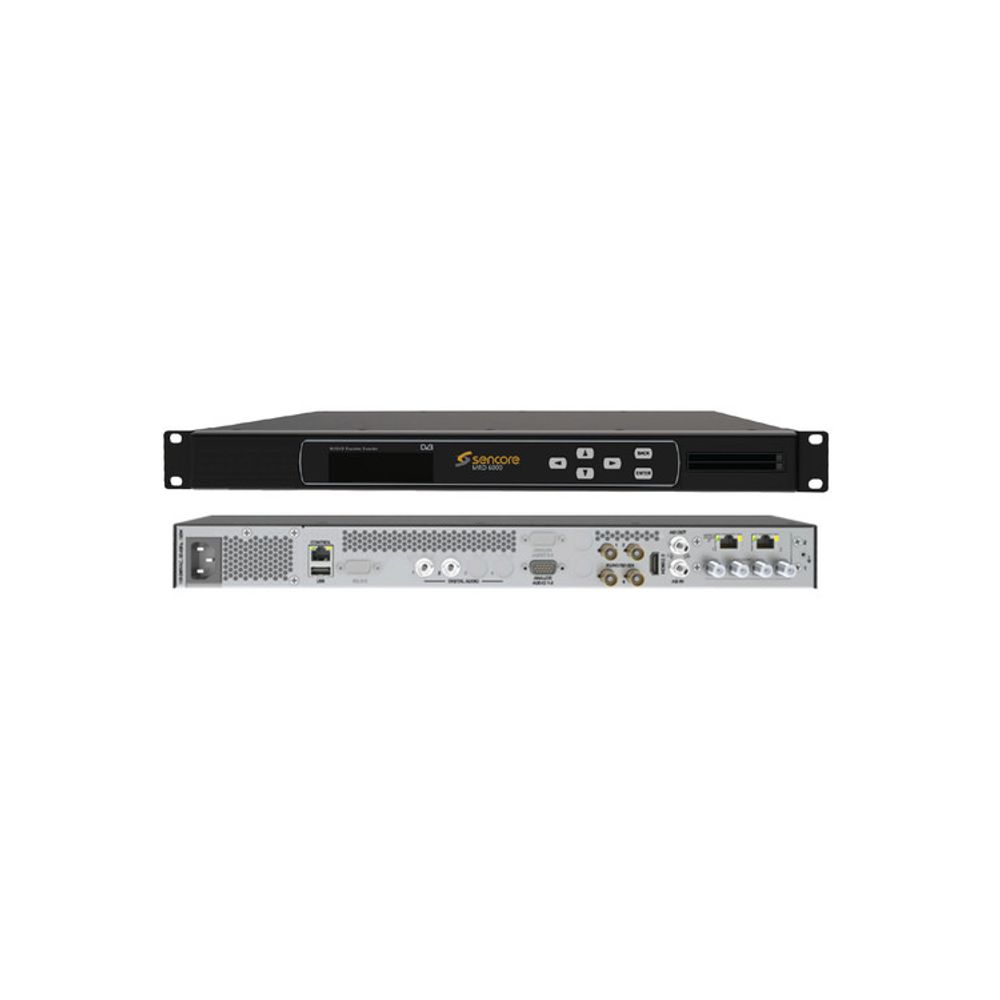

MRD6000 4K/UHD Receiver Decoder
The MRD 6000 is a new UHD receiver decoder platform built with the latest generation ASIC in order to deliver a reliable, cost-effective multiformat decoder. Perfect for applications such as monitoring, digital-turnaround, digital signage, hospitality and enterprise video delivery.
The MRD 6000 will decode HEVC/H.264/MPEG2 and output UHD/HD/SD video with 4 audio services (8 audio channels) with all ancillary data required for professional video delivery networks. Input and output options include ASI, MPEG/IP, DVB/S/S2/S2X, QAM/VSB, DVB-T/T2, C/C2 and ISDB-T. Licenses and hardware options for descrambling include with BISS and dual DVB-CI CAM slots.
The MRD 6000 maintains our long tradition of ease of use, with a straight-forward user interface and web APIs and backed by Sencore’s best-in-class staff of ProCare support engineers.
- Multiformat support to decode any stream
• HEVC/H.264/MPEG2 up to 4:2:0 10-bit
• Up to 8 channels of audio processing for MPEG1/2, AAC and Dolby AC3/AC3+
â–ª HDMI 2.0a connector for UHD and HD outputs
- Input and output options include ASI, MPEG/IP, DVB/S/S2/S2X, QAM/VSB, DVB-T/T2, C/C2 and ISDB-T
- SDI, HDMI and composite outputs
â–ª 5x 3G-SDI ports
• 4x3G-SDI for UHD output in four quadrant or 2SI
• 1x3G-SDI for simultaneous 1080 output
