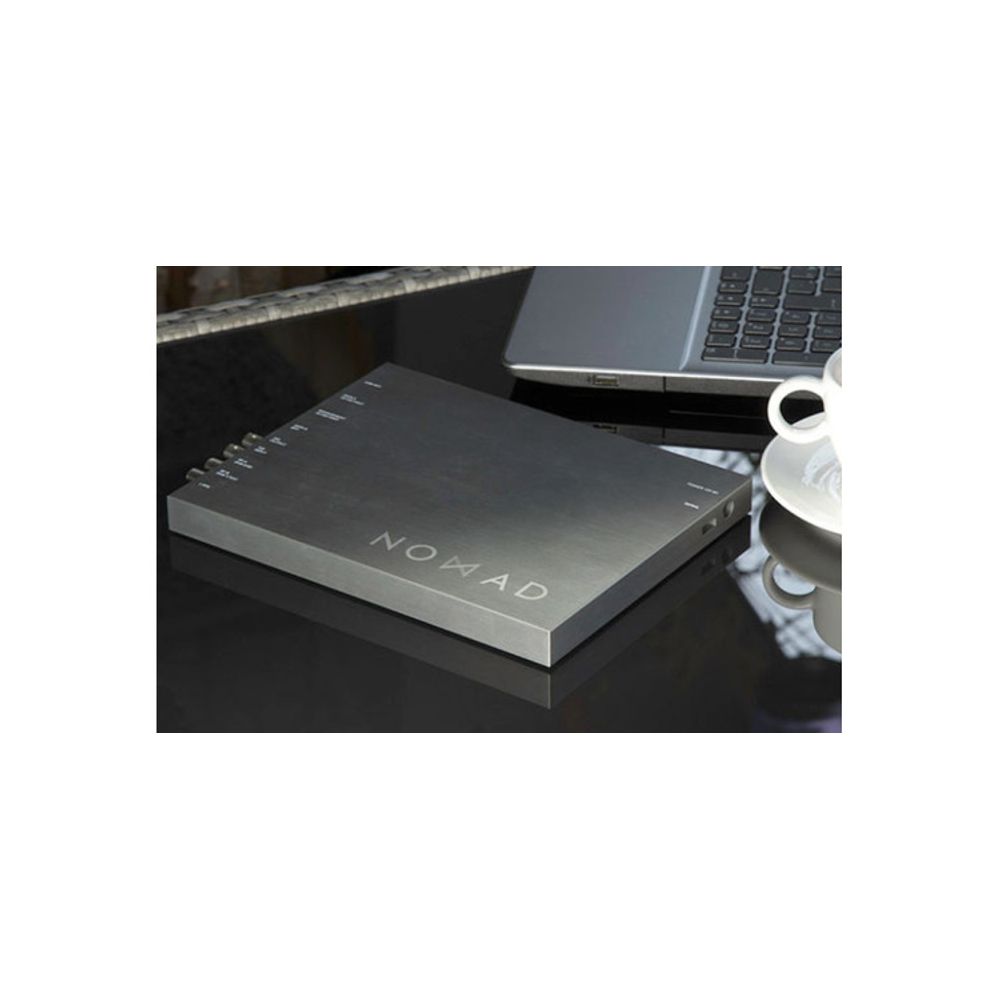

Nomad Pro I/P, QAM, 8VSB,SAT & ASI Test probe

$10,595.00 Each

With support for almost all modern broadcast delivery technologies, Nomad Pro is the Swiss Army knife of digital media monitoring. It enables instant understanding and deep analytics of OTT multiscreen streams, IP multicasts, SDIoIP, ASI, satellite, terrestrial and cable sources. Nomad Pro covers all the monitoring needs encountered in hybrid IP multicast, OTT and RF networks. It is the ultimate, all-in-one and rugged monitoring and analysis solution for the technician on the move.

Once shipped Test equipment is not returnable

Full Description & Specs
Ships in 1 to 2 weeks1 Year Limited Warranty
Safe Checkout

  • Intuitive web GUI for remote access via Wi-Fi or wired Ethernet
  • Accurate packet behavior, IAT histogram, protocol ana-lysis, traffic overview, autodetection of IP uni/multicast
  • HLS, HDS, DASH, SmoothStream™, RTMP, post-CDN URL token support and manifest validation. Innovative framework for measuring delay of OTT services through distribution chain
  • Return Data Path forwarding of any transport stream monitored with automated alarm triggered recording to 32GB of on-board Flash memory
  • PCAP Ethernet packet capture onto on-board storage
  • Support for MPEG2-TS. H.264/AVC HD, H265/HEVC 4K, J2K, AAC, PCM Audio, SCTE-35 signalling, T2-MI encapsulation and more
  • Compliant with SMPTE2022.6, 2022.7, IEEE4175 and AES67 IP-streams for SDI analytics. AIMS and ASPEN
  • Total packet understanding with the patented MediaWindow™ visualisation technology for RTP/UDP uni- and multicasts
  • The award-winning ETR290 Engine with detailed analytics of Priority 1, 2 and 3 tests plus extensions to test CA behaviour, alarm history view and timeline view
  • Autonomous operation. Nomad Pro is a completely freestanding unit with its own CPU and can perform without the need for any external host system
  • VideoBRIDGE Nomad Pro Exclusive Features
  • Support for integrating with VideoBRIDGE controller and included Eii API for NMS control
  • Included 10 ETR290 engines, one for each of the 10 IP Uni/Multicasts it monitors. Both upgradable to 50.
  • 2 included OTT engines for monitoring up to 20 OTT streams
  • 5 years of included software upgrades

Additional information

Weight 12 lbs
Dimensions 14 × 12 × 3 in

Brand

Sencore

Advanced Video Delivery & Signal Transmission Technologies For Broadcast, Cable, Satellite, IPTV, & More Sencore is the leader in the development of high-quality signal transmission solutions for the broadcast, cable, satellite, IPTV, and professional audio/video markets. Their product line of top-rated equipment includes video delivery products, system monitoring and analysis solutions, and test and measurement equipment – all designed to support system interoperability and backed by best-in-class customer support. Sencore meets the rapidly changing needs of modern media by ensuring the efficient delivery of high-quality video from the source to the home. Sencore’s advanced video delivery and signal transmission technologies overcome the complexities to enable consistent, high-quality video distribution. Their solutions offer proven compatibility with a wide range of technologies including analog, digital, HD/SD, MPEG2, H.264, IP, 8VSB, QAM, and DVB-S/S2. Their comprehensive digital video system monitoring products ensure consistent, high-quality content delivery by providing continuous logging and monitoring of multiple signal types in both digital TV and IPTV networks. Broadcast engineers can remotely identify and resolve problems before they occur, respond to alerts and alarms, and quickly isolate the cause of outages with real-time system metrics and comparative analysis of critical measurements and system logs.
VideoBRIDGE Nomad Pro Spec-Sheet
