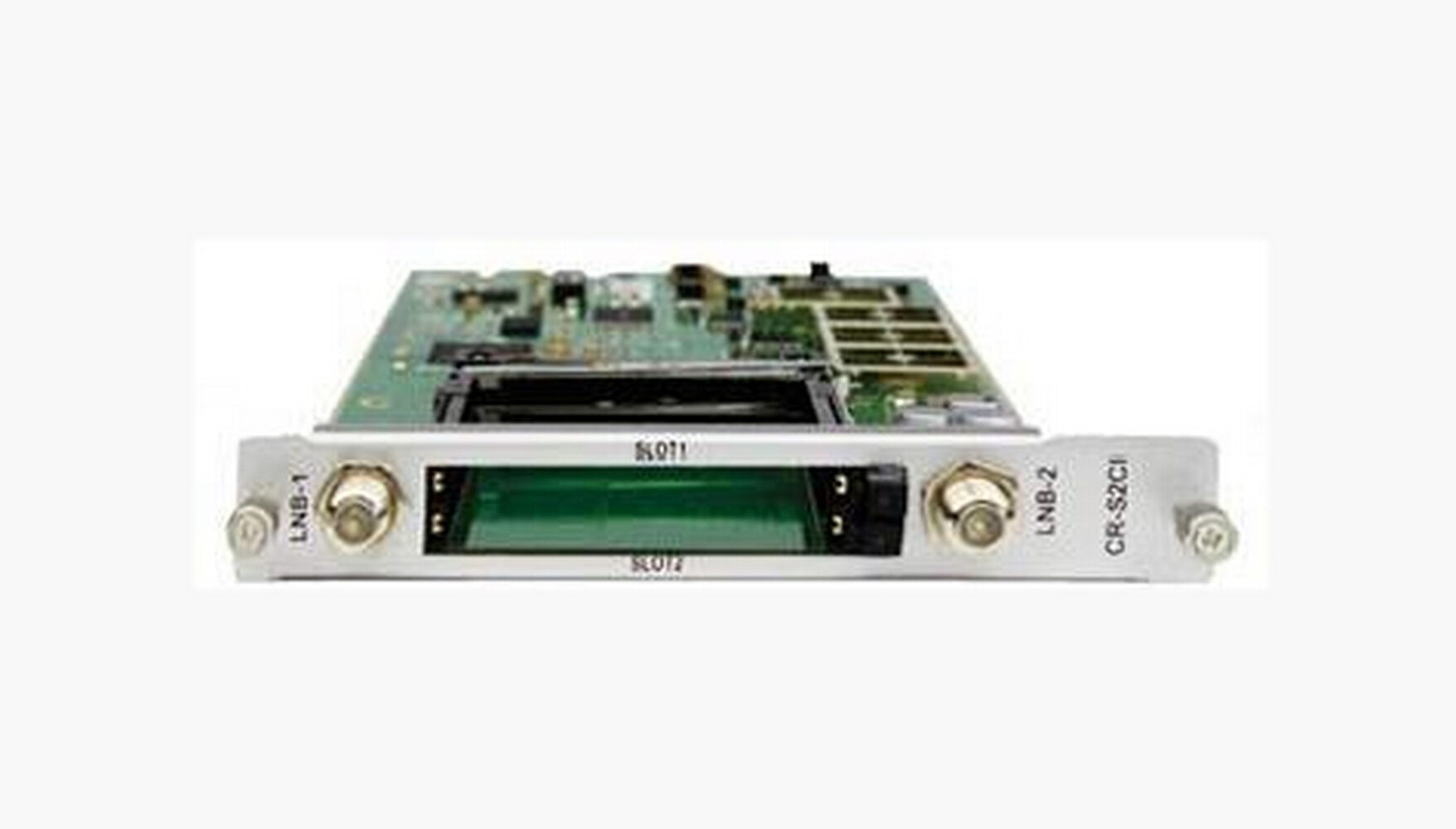

OHR6-DVBS2CI-00 DVB S/S2 Receiving module

DVB-S2 receiving module, Satellite RX, 4 CH, with 2 CI slots, Independent power supplies for each LNB.

Full Description & SpecsCall 215-675-2053
Safe Checkout

  • Input C/Ku Band satellite RX 4 channels via 2 RF female connectors, CH1 & CH2 via LNB-1, CH3 & CH4 via LNB-2
  • LNB Power Independent power supplies for each LNB
  • LNB Voltage 13V/18V
  • LNB Current Max. 400mA
  • CI 2 x PCMCIA CI slots
  • CAM Descrambled channel quantity depends on CAM capability
  • Constellation QPSK, 8PSK
  • Frequency Range 950~2150MHz
  • Signal Level -70~-20dBm
  • Roll-off Factor 0.15, 0.20, 0.25, 0.35
  • Symbol Rate DVB-S: 1~45MspsDVB-S2: 1~45Msps
  • FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8, DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • CA System Supports mainstream CAS
  • Power Consumption Max. 22W
