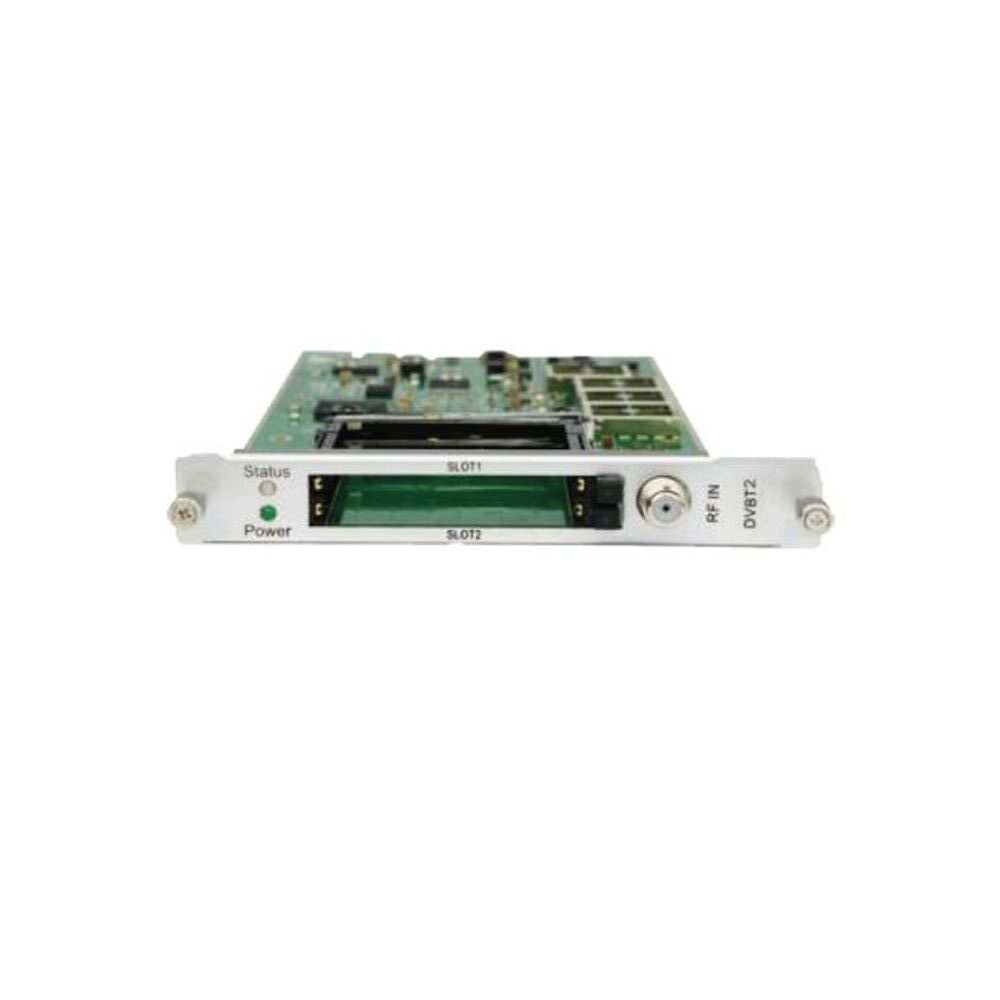

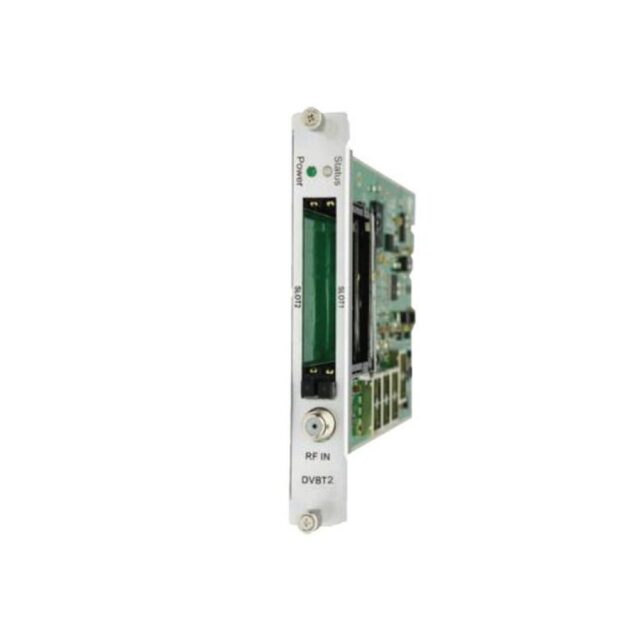

OHR-DVBT2CI-00 – DVB-T/T2 Receiving Module

4-ch DVB-T/T2 receiver module (one F connector, Support internal signal passthrough, with two CAM slots)

Full Description & SpecsCall 215-675-2053
Safe Checkout

  • Input 4 channels via 1 RF female connector
  • CI 2 x PCMCIA CI slots
  • CAM Descrambled channel quantity depends on CAM, capability, 2 CAMs could be different
  • Frequency Range 47~862MHz
  • Bandwidth 6/7/8MHz
  • Constellation DVB-T: QPSK/16QAM/64QAM, DVB-T2: QPSK/16QAM/64QAM/256QAM
  • Guard Interval DVB-T: 1/4, 1/8, 1/16, 1/32, DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/128, 19/256, 19/128
  • FFT Size DVB-T: 2K, 8K, DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K
  • Signal Level -80~-20dBm
  • CA System Supports mainstream CAS
  • Power Consumption Max. 8W

Additional information

Weight 5 lbs
Dimensions 7 × 2 × 7 in
