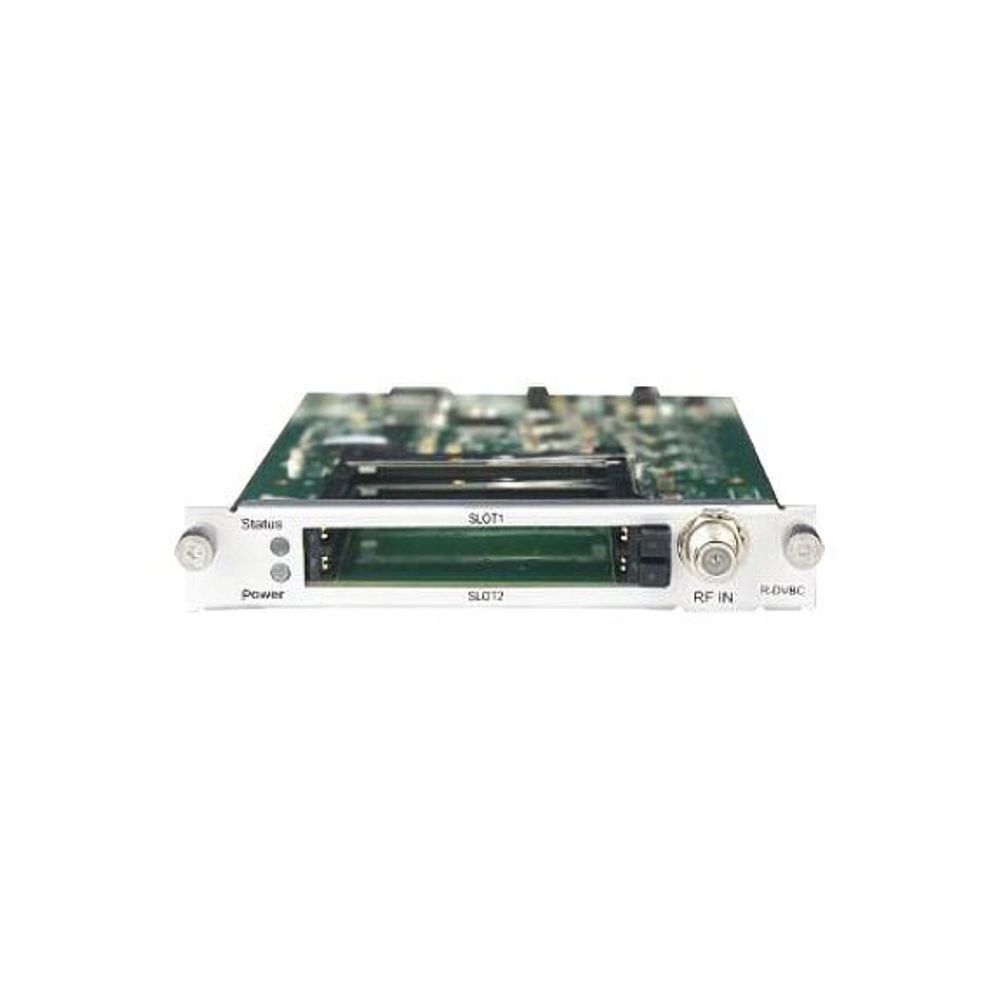

OHR6-DVBC-ISDBT-01 DVB-C / ISDB-T OmniHub 16 Receiving Module
DVB-C Annex B/ISDB-T receiving module, 4 CH, 1 RF input connector with 4 tuners, w/ CI slots.
DVBC Annex B
- Input 4 channels via1 RF female connector
- CI 2 x PCMCIA CI slots
- CAM Descrambled channel quantity depends on CAM capability, 2 CAMs could be different
- QAM Mode Annex B
- Frequency Range 47~862MHz
- Bandwidth 6MHz
- Constellation 64QAM, 256QAM
- Symbol Rate 5.057Ms/s (64QAM)5.360Ms/s (256QAM)
- Signal Level 40~80dBuV
- CA System Supports mainstream CAS
- Power Consumption Max. 9.5W
ISDB-T
- Input 4 channels via1 RF female connector
- CI 2 x PCMCIA CI slots
- CAM Descrambled channel quantity depends on CAM CAM capability, 2 CAMs could be different
- Frequency Range 177.143-863.143 MHz
- Bandwidth 6/7/8MHz
- Constellation DQPSK, QPSK, 16QAM, 64QAM
- FEC 1/2, 2/3, 3/4, 5/6, 7/8, Automatic
- Signal Level -80~-20dBm
- CA System Supports mainstream CAS
- Power Consumption Max. 9.5W
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 7 × 2 × 7 in |
