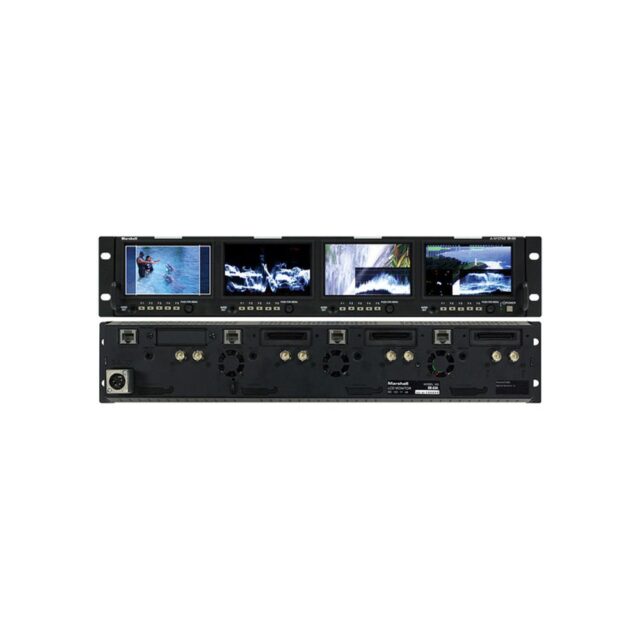

OR-434 Quad 4.3″ Rack mount monitor
$4,995.00 Each
The OR-434 Quad 4.3″ ORCHID® rack mount monitor has all the features that customers have asked for and more. The OR-434 is only 2RU and has 5 user-assignable function keys with a joystick menu system.
The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.
The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.
All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system.
The OR-434 will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-434 comes standard with auto- sensing HD-SDI inputs, re-clocked outputs, and an open modular slot for additional inputs in the future.
- Real-Time Waveform Monitor
- Real-Time Color Vectorscope
- Sixteen 64-segment Tri-color Audio Meters
- Tri-Color Tally Indicator
- On-Screen Time Code
- 7 assignable GPI inputs
- Adjustable Color Temperature
- Optional Input Modules
- Auto-Sensing Front Panel Headphone Jack
- Auto-Sensing Rear Unbalanced Stereo Output Adjustable Clipping Indicator
- Precision Gamma Settings
- Adjustable Color Temperature
- Variety of Safety Markers
- HD-SDI / SDI Inputs and Outputs
- Automatic Color Calibration with ORCHID Color Probe
Additional information
| Weight | 7.0 lbs |
|---|---|
| Dimensions | 024 × 6 × 10 in |
Brand
Marshall Electronics
