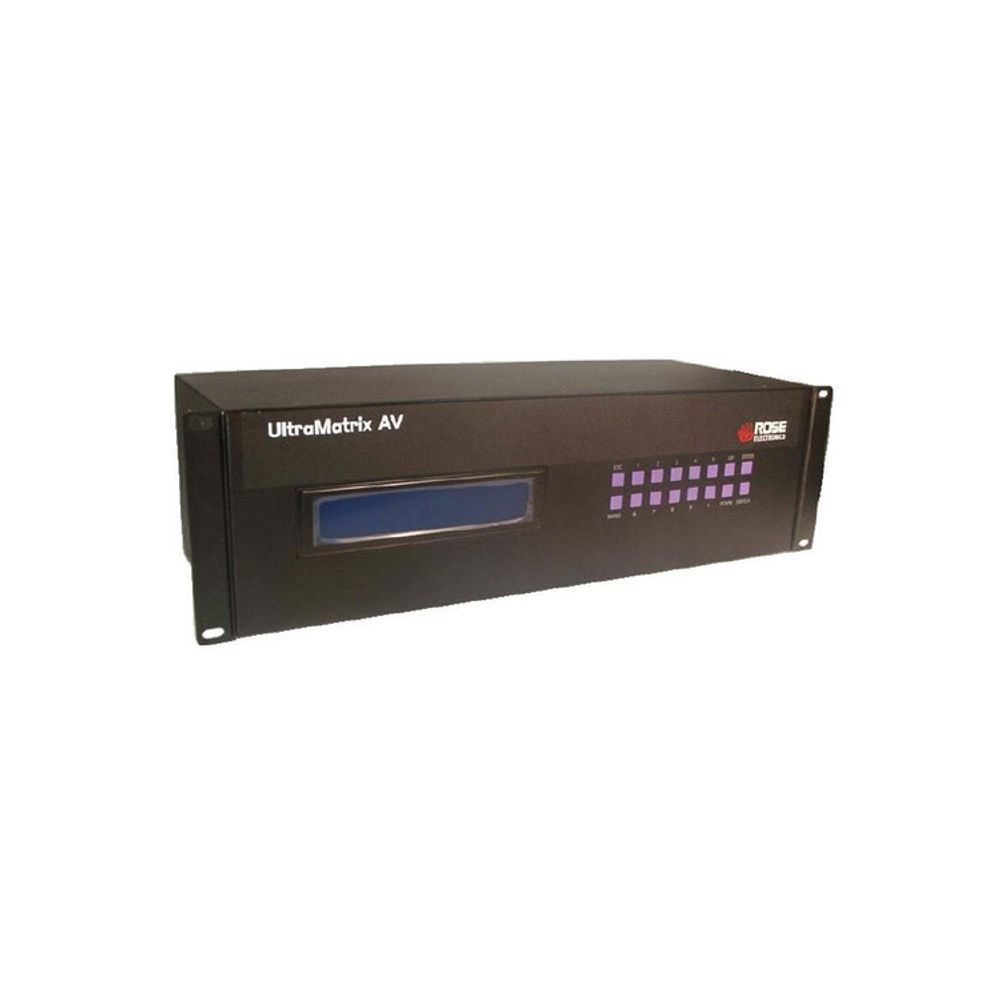

Orion UltraMatrix AV HD
The UltraMatrix AV HD is the perfect addition to new or existing installations that need to display up to 16 HDMI video sources on 1 to 16 remote HDMI displays. Any video source can be displayed on 1, 2 or all monitors.
The unit provides easy front panel selection of the video source to be displayed on each remote monitor. Just press a button to select the source, and then select the destination. The front panel display shows which inputs are connected to which displays.
Selection can also be performed by using the RoseControl software to send switching commands to the unit. With one click on the cross-point, that computer’s video is instantly switched to the selected HDMI monitor. The RoseControl software is installed on a computer or laptop external to the switch and connected to the RS232 port on the unit.
The matrix can also be controlled through an optional IR controller, allowing the unit to be controlled from a distance.
Models with the optional LAN card can be assigned an IP address, allowing control from a web browser anywhere in the world.
- HDMI Output resolutions up to 1080p
- Input sources and output displays can each be up to 40 feet from the switch
- Supports 7.1 Digital Surround Sound audio
- Unique “Learn Mode” acquires the EDID information for any output monitor. Once learned, the monitors do not have to be connected for the computers to boot.
- Switch a video source to any output monitor using either the front panel push buttons, remote matrix switching software, optional IR controller, or serial commands to the unit.
- Intuitive RoseControl software makes switching, routing, and controlling the video displays quick and easy.
- Optional IR control available
- Model available with built-in LAN card for TCP/IP control
- HDMI input is HDCP 1.4 compliant
- Set-up multimedia presentations where information is displayed from multiple computers
- Rack mountable options
