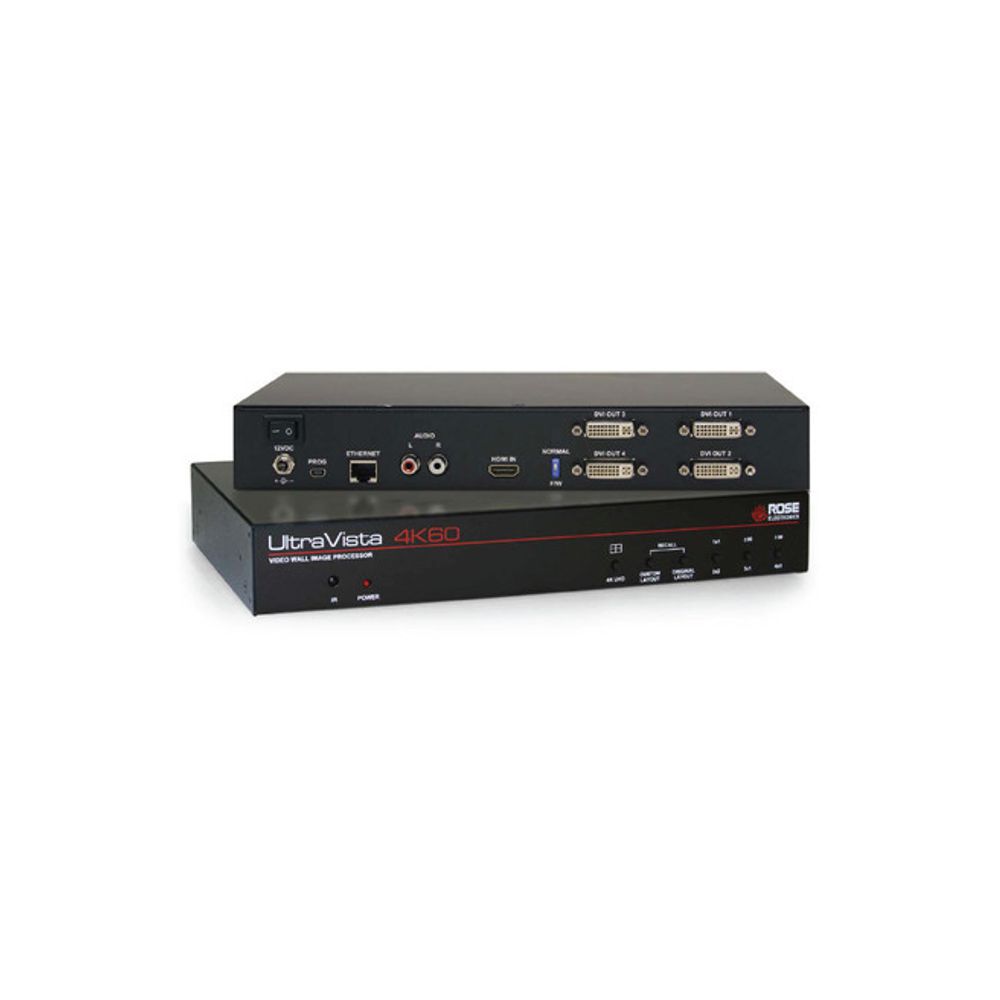

Orion UltraVista 4K60
The Rose Electronics UltraVista 4K60 is a state of the art product for creating real time multiple screen video displays. It accepts HDMI input signals at resolutions from 640×480 up to Ultra HD 4K 60. Use of 4K video input helps ensure crystal-clear HD output to four DVI or HDMI displays at resolutions up to 1920×1200@60Hz.
Windows compatible configuration software connects through USB or Ethernet ports, allowing for positioning, resizing, and zooming the output video. Configuration details are automatically saved in flash memory for recall.
Output of audio embedded in the HDMI signal is through stereo analog RCA outputs on the unit and through HDMI displays equipped with speakers by using a DVI to HDMI cable.
The product is supplied with an IR remote control for changing layouts on the fly and for controlling audio output.
- Input 4K 60 video can be divided and displayed in a 2×2 layout at 1080p60 on each of the four outputs Four HD DVI outputs at resolutions up to 1920×1200@60Hz
- Each output is independently controllable
- Stereo audio output
- EDID can be sourced from output monitors, internal default selections, or from files
- Windows based software allows simple configuration control via USB or Ethernet connection
- HDCP compliant
- IR remote control allows switching between display layouts and control of audio volume
- Image parameters and layouts are automatically saved in flash memory for recall
- Screen resolution and coordinates are selectable, including options for clockwise or counterclockwise rotation.
- Input and output resolutions are selectable from a drop-down menu
