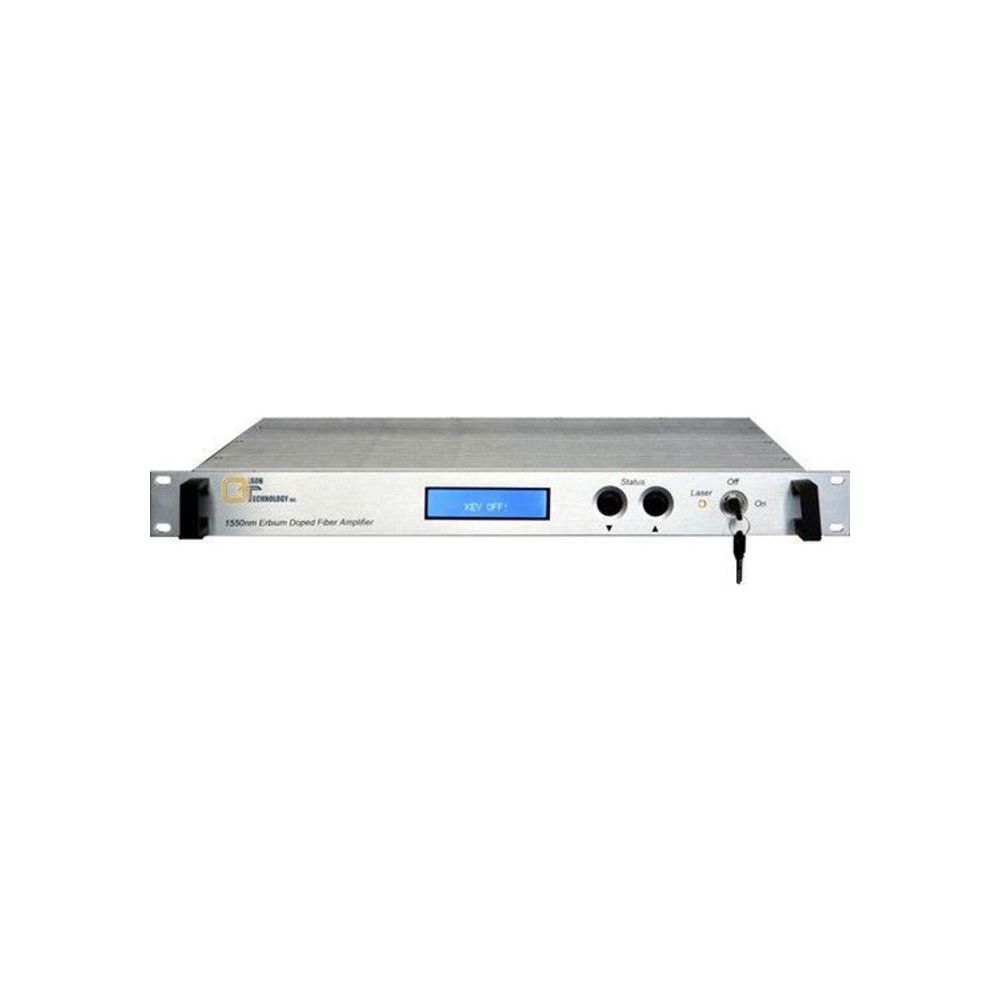

OTEB-CO-B Booster EDFA
The Olson OTEB-CO-B Series EDFA incorporates a reliable optical output drive circuit, and laser TEC to provide a highly reliable Erbium-doped optical amplifier. Built-in microprocessor software allows the user to monitor a number of system parameters, including: laser status, systems alarm, network management, TEC circuit operation, etc. If a critical problem is detected, the power supply for the laser will shut down automatically, a red LED indicator will light, and the front panel display will show the nature of the problem. Optional SNMP network management is available through the RS-232 interface. The EDFA is housed in a 1RU 19″ rack mount configuration with an integrated 90-254 Volts AC power supply.
This rugged, low-profile, high-efficiency EDFA design utilizes highly reliable pump lasers for maximum reliability. The unit accepts a wide optical input range (-10dBm to +10dBm) and provides a total composite/saturated output power from +13dBm to +26dBm, depending on the specific model. The LaserLite Model OTEB-CO-B Series erbium doped fiber amplifier is the perfect companion to the Olson LaserPlus and LaserLite families of 1550nm EM and DM transmitters and MetroNode and PremiseNode families of receiver/nodes. It is also designed to operate seamlessly with optical transmitters, receivers and nodes from most leading manufacturers.
Specifically for distribution of 1550nm CATV/video/data in HFC, PON/AON or FTTH systems.
- Typically used in a launch or midspan application. Optimized for use with Olson fiber-based DCM.
- Low optical input level requirements with excellent low noise performance at high output
- 90-254 Volts AC power supply. DC option not available.
- Optional SNMP monitoring.
- 1540nm to 1560nm wavelength range
- LED indicators and LCD display for easy setup and maintenance.
- Single, dual and quad optical output options
- SC/APC optical connector standard.
Brand
Olson Technology
