PEG-PLUS IP PEG Channel Encoder MPEG2/4 (H.264)

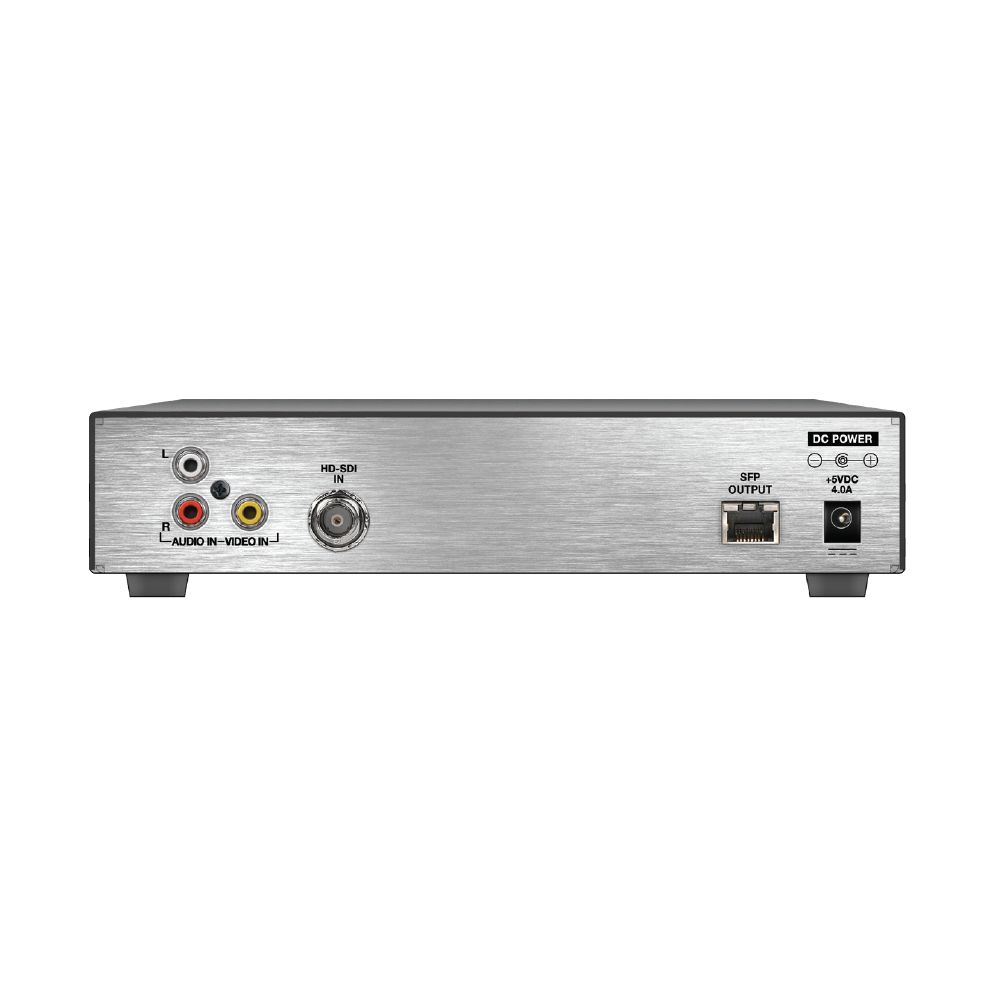

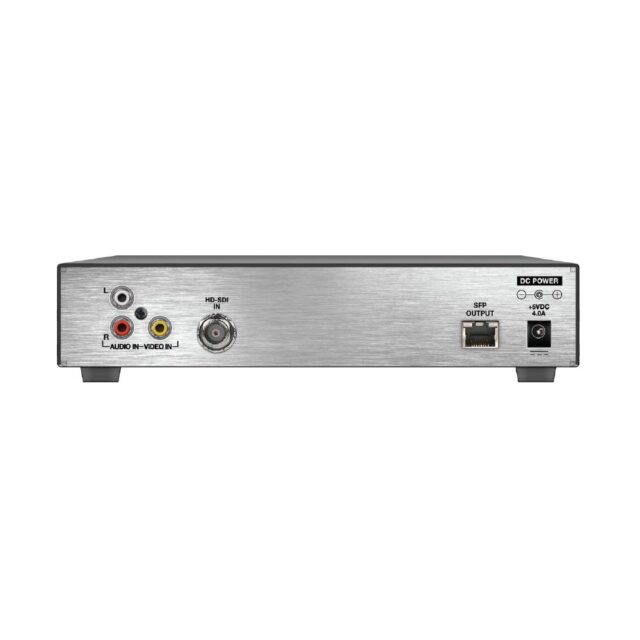

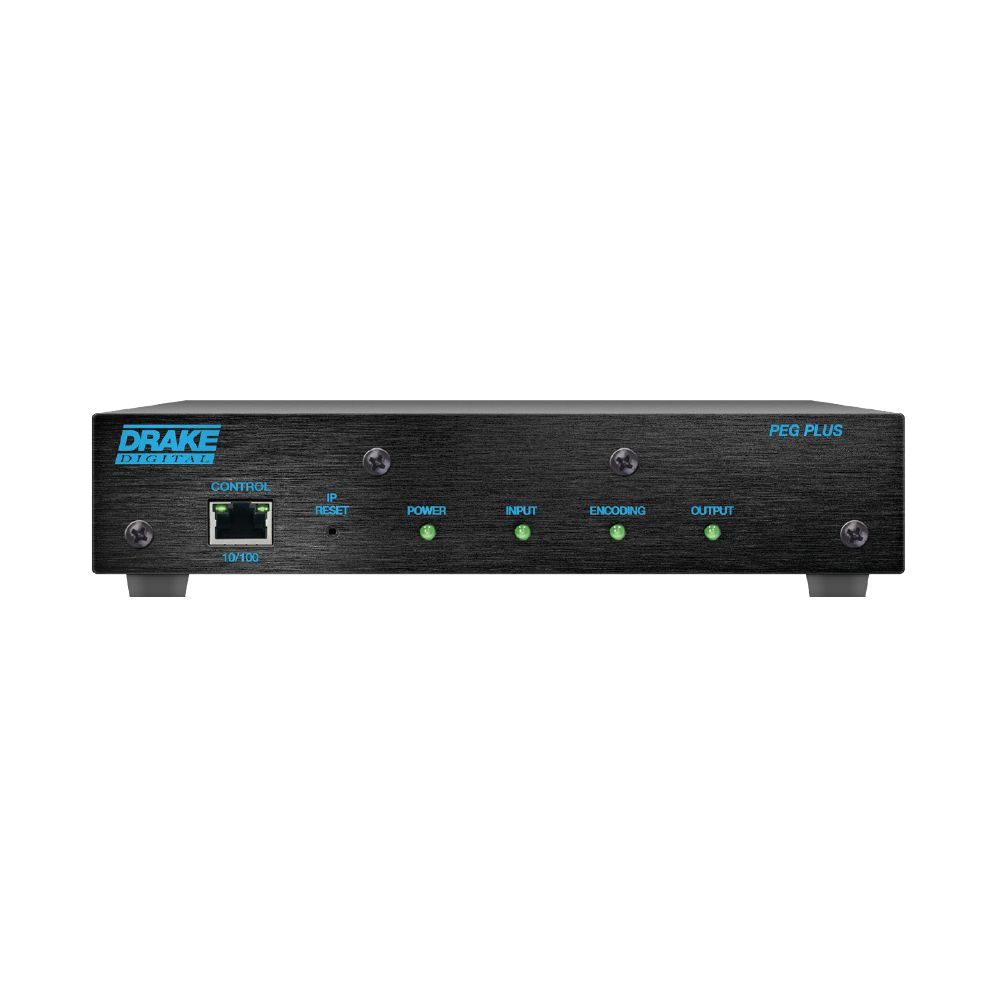

The PEG PLUS is a stand-alone MPEG-2 or H.264 digital video PEG channel encoder with a single SD/HD-SDI, or composite video input, and an IP-encapsulation output via a single SFP Ethernet port. A separate RJ45 10/100 Ethernet port is provided for control and monitoring capability. The PEG PLUS features selectable SDI PCM-embedded audio, or analog left and right audio. Audio compression can be either Dolby® Digital, MPEG1-Layer 2 stereo, or AAC stereo.

An optional Zixi output protocol is also available to provide the ability to stream content in H.264 format over an unmanaged network, including the public internet. The Zixi UDP-based video optimized protocol provides professional broadcasters, sports networks, and service providers a mechanism to adapt to the public internet using standard IP networks as a way to􀀃ingest and transport broadcast quality video. An optional rack mount panel is available for up to (2) PEG PLUS encoders.

Full Description & SpecsCall 215-675-2053
Safe Checkout

  • MPEG-2 or H.264 video encoding
  • Selectable SD/HD-SDI or Composite video input
  • Encodes two HD or SD streams of the same content in either MPEG-2 or MPEG-4/H.264 formats
  • Supports video resolutions of 480i, 720p, or 1080i
  • Dolby® Digital, AAC, or MPEG1-Layer 2 stereo audio encoding from PCM-embedded audio source
  • IP output via SFP port (SFP sold separately)
  • Unicast and multicast capable
  • Separate Management port and streaming port
  • Built-in watchdog timer with system reboot capability
  • Field-upgradable firmware
  • Configuration and shutdown control via HTTP server UI and programmable API
  • Supports VLAN & QoS for streaming or traffic mgmt.
  • SNMP V2
  • User-defined PID configuration
  • Supports ATSC PSIP tables
  • DVB Service information table generation (NIT+SDT)
  • Compositing support to add program PNG logo file

Additional information

Weight 5 lbs
Dimensions 16 × 12 × 3 in

Brand

Drake

About Drake Digital: Video Encoders, Transcoders & Processing Equipment For over 65 years, RL Drake, (now Drake Digital) has been committed to developing quality communication products that enrich the lives of your consumers. Drake delivers innovative electronic communications solutions for cable television systems, digital television reception, video signal distribution, and digital video encoding. Drake’s digital video encoders, transcoders and processing equipment are known for their advanced features, cutting edge technology and reliability in demanding environments. Superb value, performance and versatility have earned Drake’s digital video encoders awards for innovation and development. Advanced encoder features offer industry-leading performance while simplifying hardware networks and reducing inefficiency. Exacting standards, quality, and reliability have made Drake the go-to name for video applications in every type of high profile, no-fail situation or environment around the world, including Higher Education Institutions, pro sports arenas, marine applications, extreme weather conditions within the Arctic Circle, and even at the White House. Everywhere you want to deliver your signals Drake will get you there.
