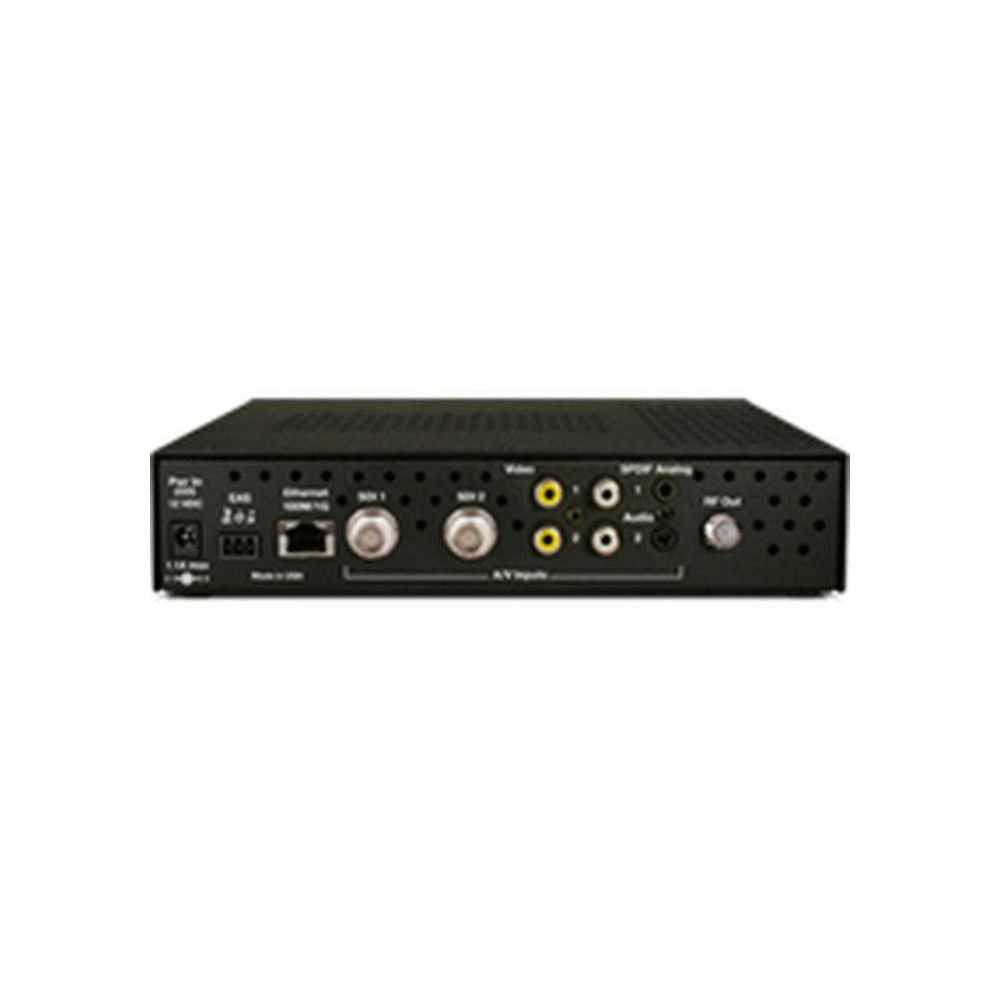

QMOD-SDI 2 HDTV Modulator/IPTV Encoder

$2,810.00 Each

The dual-channel QMOD-SDI2, with two SDI inputs, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 3G 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Able to deliver two HD programs in one channel, the QMOD-SDI 2 can also output the content as a Multicast or Unicast IPTV stream. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, Component, RGBHV and NTSC video sources.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

Sources

  • Two HD-SDI inputs, 3G 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES audio
  • Two Composite/CC video inputs for encoding, captioning, or EAS use
  • Two analog Stereo and two SPDIF coax audio inputs

Encoding

  • Creates a high-definition dual-program 720p/1080i MPEG-2 stream for broadcast over RF or IPTV
  • Converts stereo and PCM to stereo AC-3, can create SAP dual-language audio for each program
  • Decodes Line 21 captioning from composite video inputs
  • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
  • Dual-channel operation is standard, creates one physical channel with two HD programs

Output

  • Delivers a fully agile QAM 64/256 dual program digital cable channel 2-135
  • Up to 270 HD Programs/Channels per system
  • Streams Unicast/Multicast IPTV from GigE Ethernet port
  • Distributes channel over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible with all cable format broadband systems

Operation

  • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
  • Onboard Web page for setup and monitoring, also accessible from front-panel USB port – an Ethernet connection is not required
  • Updates firmware via USB and Ethernet

    Fan cooled, with adjustable speed

  • Saves power and rack space using efficient design
  • Includes compact switching power supply
  • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
  • Meets RoHS safety and California energy standards

Additional information

Weight 3 lbs
Dimensions 15 × 11 × 3 in

Brand

Contemporary Research

Simple Solutions for System Integration Contemporary Research Corp. was started in 1994 by Scott Hetzler, they design and manufacture intelligent, yet simple solutions for system integration that set the standard for the AV industry. Starting with professional TV tuners and AV routers, the Contemporary Research family of innovations includes cutting-edge HDTV tuners, QMOD HDTV Modulators, Display Express Control Systems, and classroom integration solutions. Created for the systems market, Contemporary Research solutions offer state-of-the-art features, integration-friendly control, and easy-to-use application software, backed with solid technical support and customer service. They have earned an enviable record of innovation, researching future trends, engineering new technology, and delivering contemporary solutions at just the right time. All Contemporary Research products are built in the USA, and are designed to function in demanding, mission critical 24/7 installations. Toner Cable is a stocking distributor of Contemporary Research products.
Contemporary Research Brand
QMOD-SDI 2 Spec-Sheet
QMOD-SDI 2 User Manual
