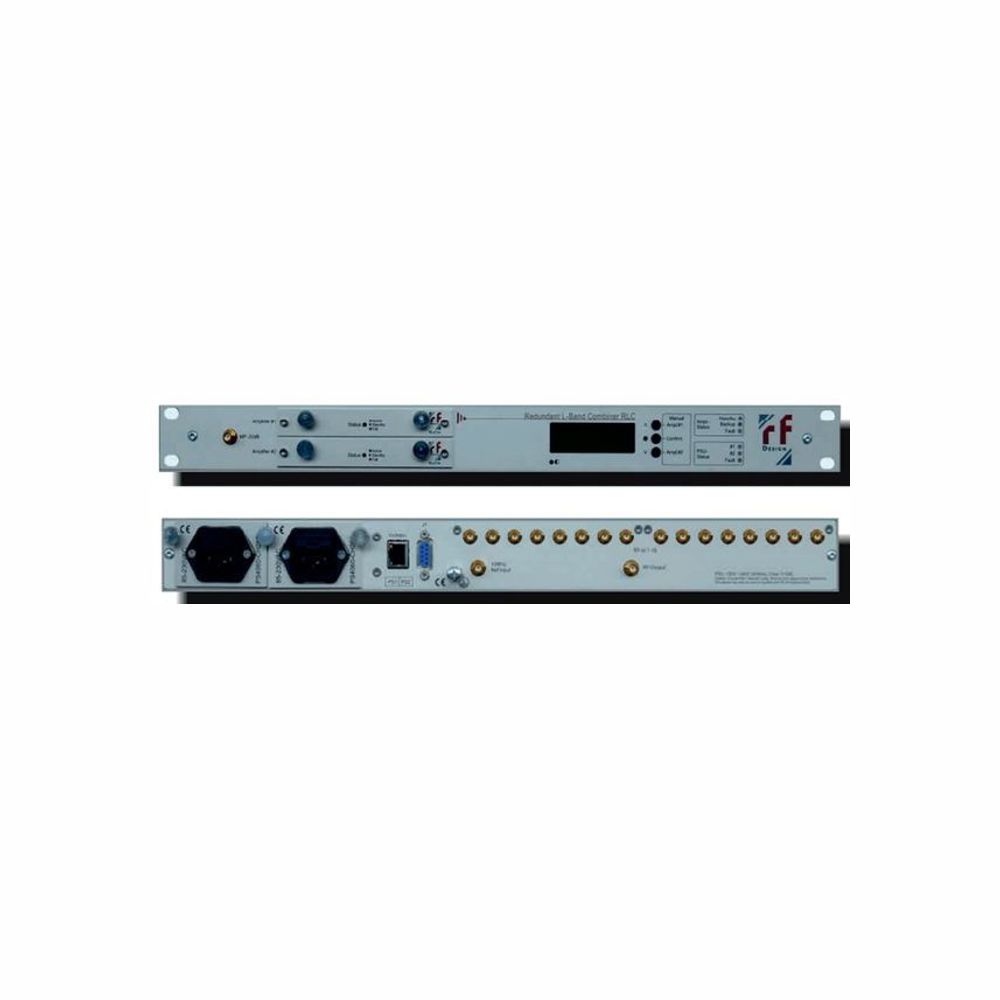

RLC2716L L band 16 port Active Combiner
16:1 L-Band combiner with 1:1 redundant Line Amplifier, 1RU/19″, 75Ohm F(f)
- Space saving and compact 1RU/19″ design
- 16:1 L-Band combiner & 1:1 operating amplifiers in one unit
- 1:1 redundant hot-standby operating amplifier-modules
- Variable gain-adjust -11…+13dB (MGC/AGC), 1dB steps
- Less then 5ms switchover between ampflifier 1 & 2
- Supports slope-equalization 0…9dB, 1dB steps
- Front-side monitoring-port (-20dB)
- Permanent RF-power monitoring (Input/Output) for both amplifier-modules
- Threshold alarm function and switchable output limiter
- 10MHz external reference signal, rear-side 50Ohm SMA(f)
- 1:1 redundant power supply (hot swappable)
- Local access & configuration via front side LC-Display/keypads
- Front side status LED´s indicating amplifier- and power-supply status
- Remote configuration via Ethernet-Interface, RS232/485 (WEB-GUI/SNMPv2c)
