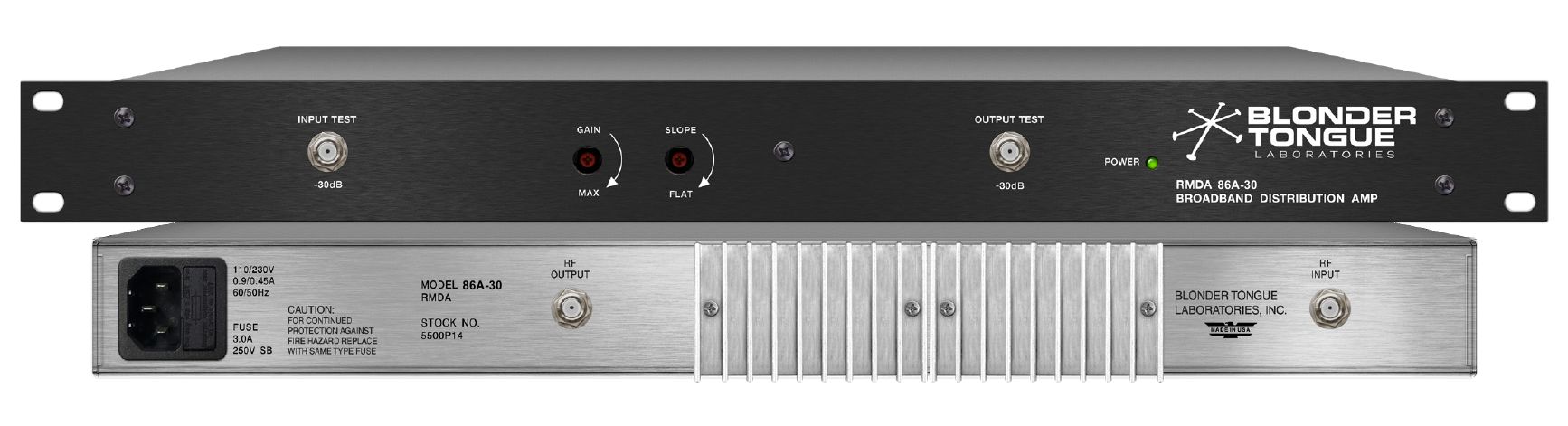

RMDA-86A-30 Rack Mount Distribution Amplifier

RMDA86A-30 Rack Mount Distribution Amplifier

$990.00

The RMDA (active return path) are rack mounted 2-way broadband distribution amplifiers. Utilizing push-pull hybrid amplifier technology, they are ideal for MATV, SMATV or CATV applications. The amplifiers have a forward bandwidth of 54 – 860 MHz with a gain of 30 dB. The reverse path of 5-40 MHz is field configurable for active or passive operation.

The RMDA amplifier has built-in variable gain controls on both the forward and reverse paths. A forward path variable slope control is provided inter-stage as is the variable gain control. Additionally, a fixed forward equalizer and forward and reverse attenuator plug-ins can be installed for further signal conditioning at the input to the amplifier. 30 dB back matched test ports at the input and output are provided for monitoring both forward and reverse signal levels without interrupting service. The amplifier is housed in a lRU aluminum chassis that provides exceptional heat dissipation.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • 860 MHz Push Pull Hybrid Technology
  • 5-40 MHz Return Path, Field Selectable Active/Passive Operation
  • Built-in Variable Gain and Slope Controls
  • Optional Plug-in Forward Equalizer and Attenuator
  • Optional Plug-in Reverse Attenuator

Additional information

Weight 6 lbs
Dimensions 8 × 22 × 3 in

Brand

Blonder Tongue

Solutions for All Your Applications Blonder Tongue Laboratories, Inc. offer customers more than 130 years of combined engineering and manufacturing excellence with a solid history of delivering reliable, quality products. As a leader in the field of Cable Television communications, they provide system operators and integrators serving the cable, broadcast, satellite, IPTV, institutional and professional video markets with comprehensive solutions for the provision of content contribution, distribution and video delivery to homes and businesses. The B-T designs, manufactures, sells and supports an equipment of SD/HD digital video solutions, as well as core analog video and high speed data solutions for distribution over coax, fiber and IP networks. For over 60 years, Blonder Tongue has customized cost-effective solutions for the broadcast, hospitality, education, healthcare, government, sports, entertainment, and enterprise markets. From supporting major broadcast networks to campuses, hotels, stadiums, and airports Blonder Tongue has its customers’ needs covered. Blonder Tongue was founded in 1952, in Old Bridge, NJ by Ike Blonder and Ben Tongue. The company started building Amplifiers or boosters for TV antennas and also building TV antennas. Ike was awarded a patent for inventing the log-periodic television antenna. In the following years, Blonder Tongue expanded their range of products to support the growing Cable TV industry. In 1972, Toner Cable became a stocking distributor for Blonder Tongue and today is their largest stocking distributor worldwide.
RMDA-86A-30 Spec-Sheet
