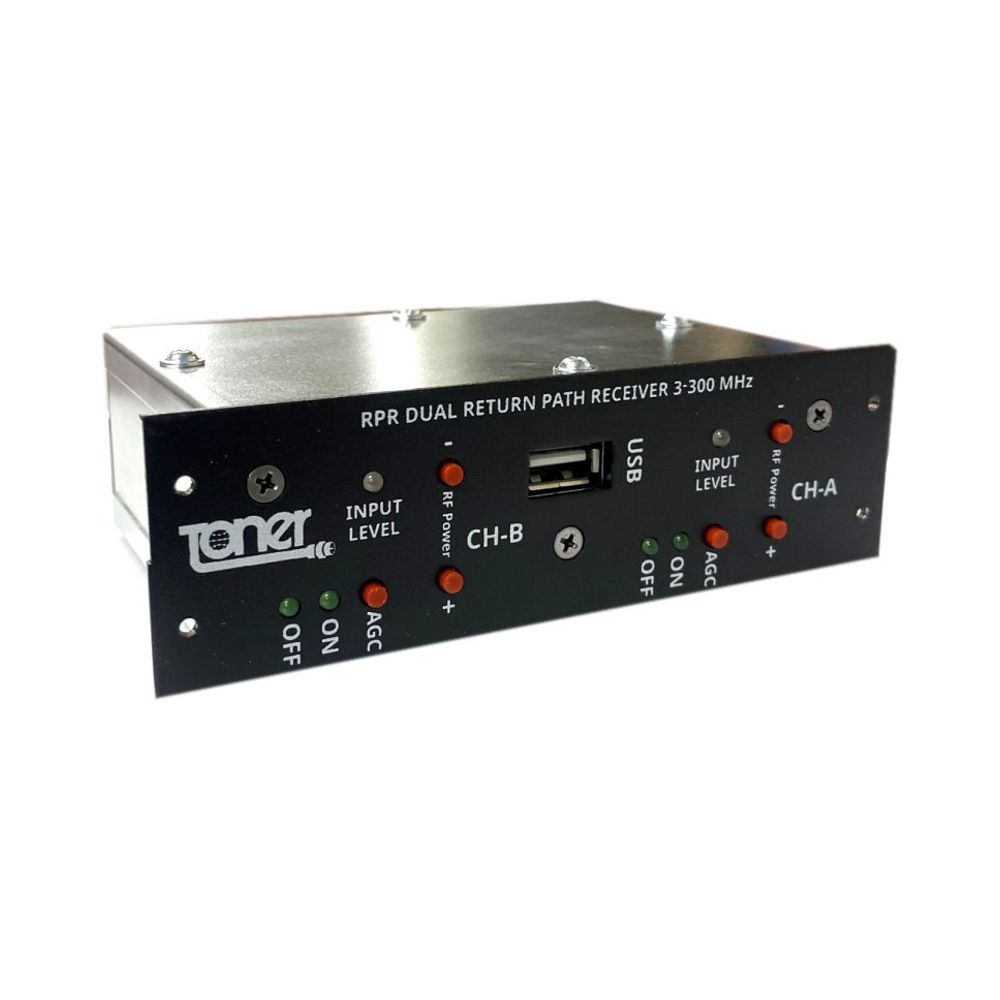

RPR-2 Return Path Receiver
The Toner Cable RPR-2 is a high performance dual Return Path Fiber optic receiver with a wide RF bandwidth of 5-300 MHz which is ideal for todays various cable modem upstream architecture. The RPR-2 dual return path receiver is two independent return channel receivers that is either a compact standalone dual receiver or a rack mount using the OTLL rackmount panel. With a high performance 1100-1650nm photodiode this receiver will preform with any optical frequency range including WDM and CWDM systems.

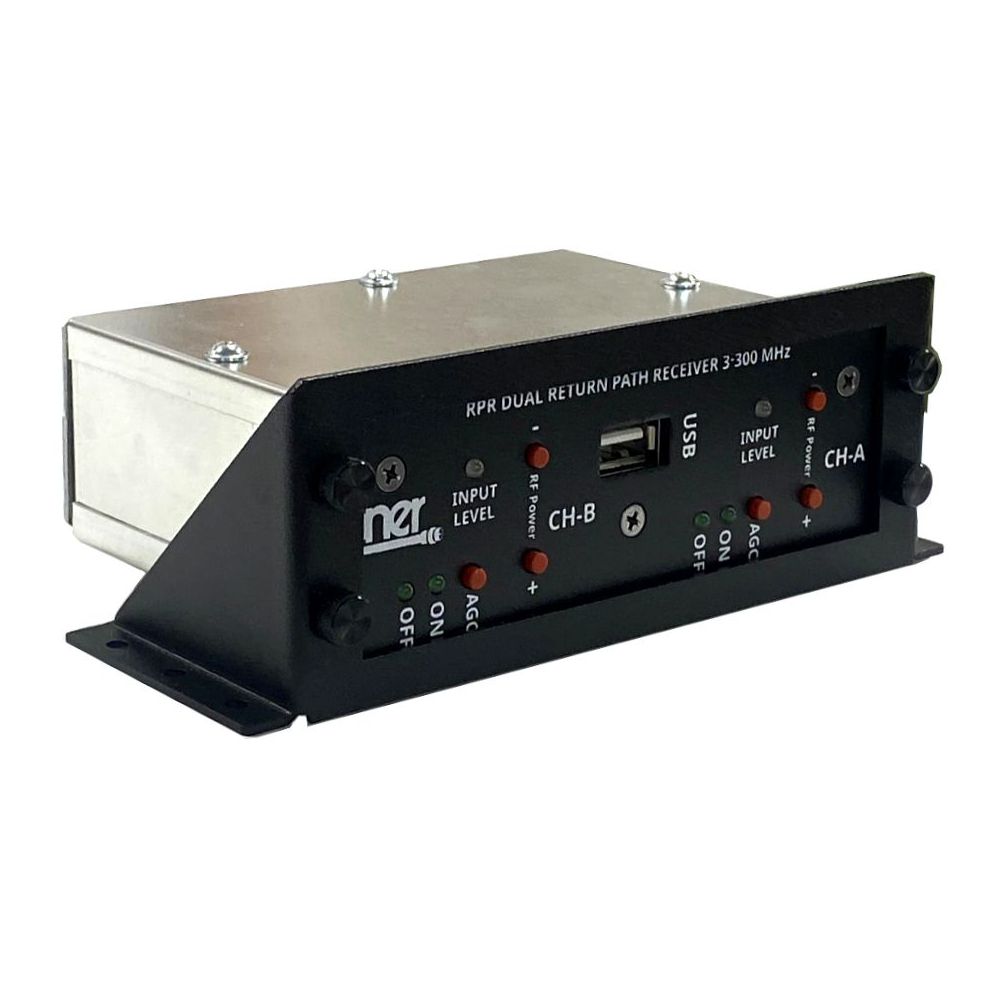

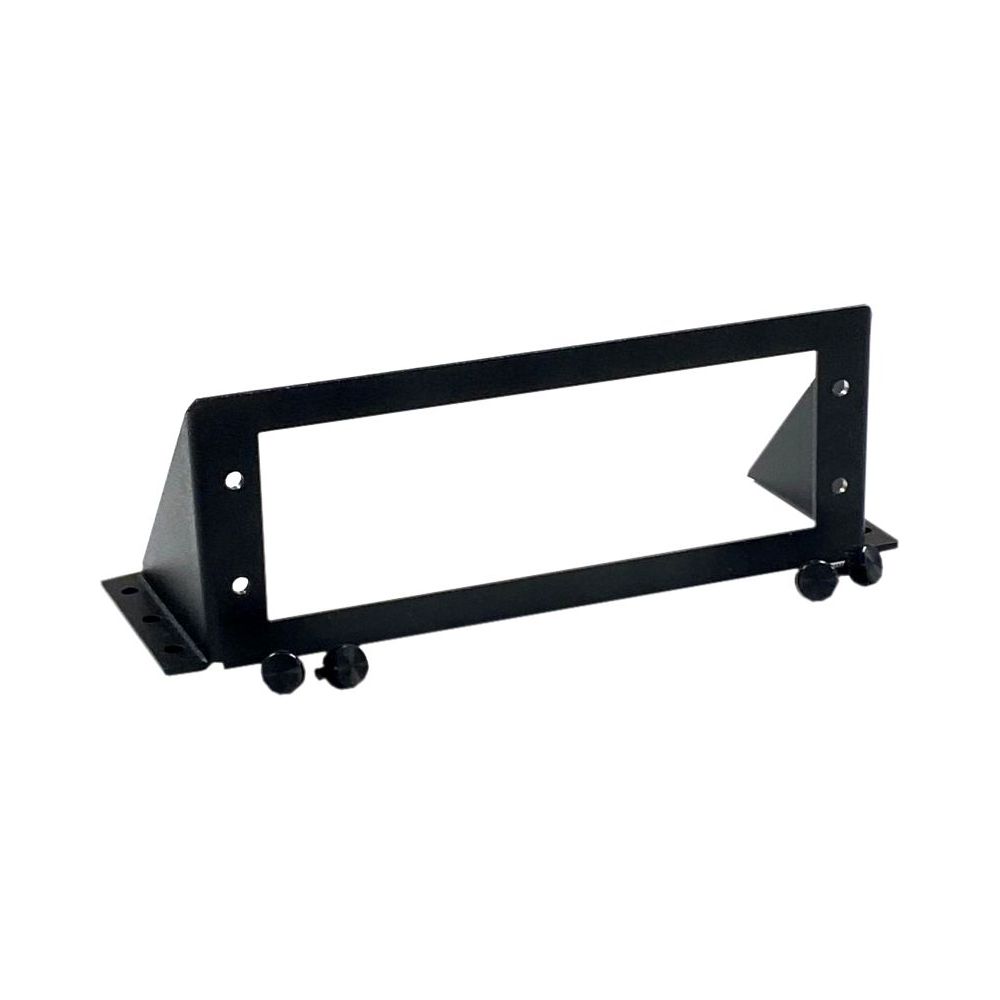

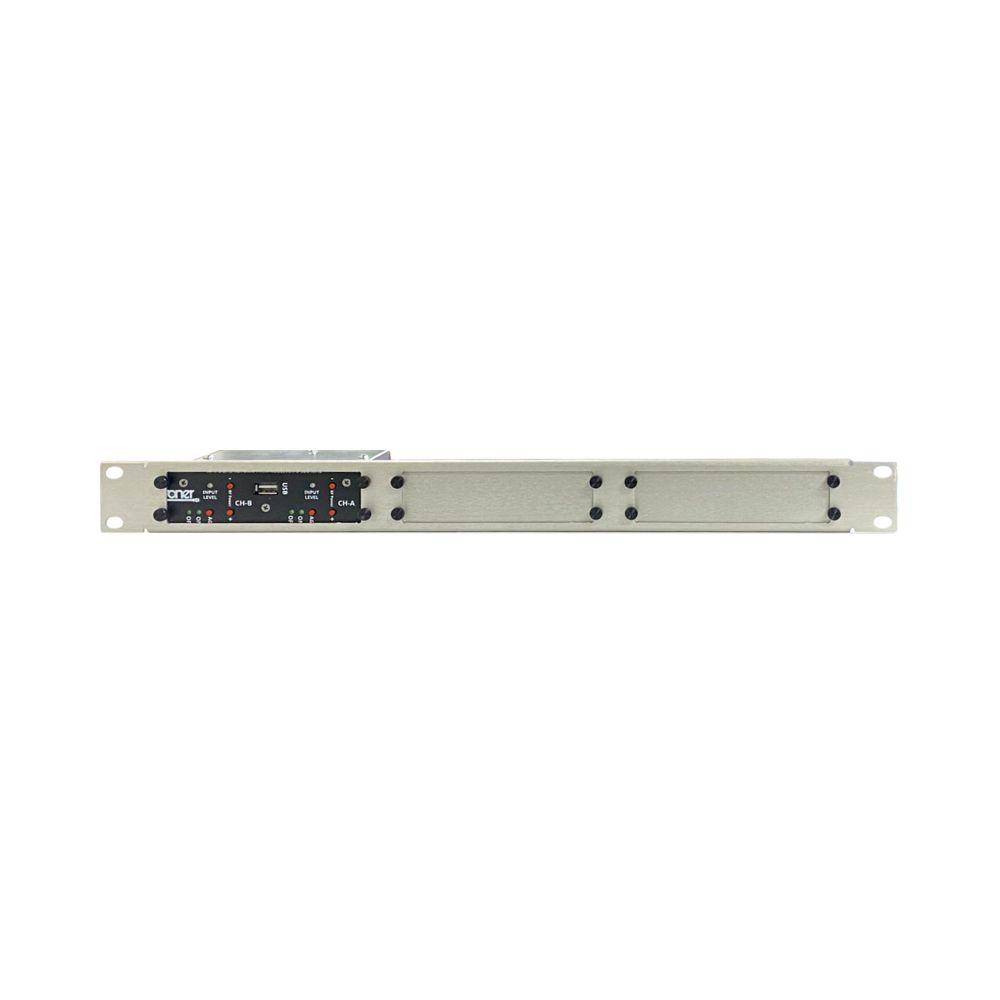

The RPR-2 uses a GaAs hybrid for high performance RF output up to 50 dBmV with low distortions and has a AGC that will to maintain a steady RF output. The compact size of 4.5” x 3.75” x 1.75” allows it to be either rack mounted (up to 3 pieces) or wall or shelf mounted using the RPR-WMB mounting bracket.
- 5-300 MHz RF Bandwidth
- 1100-1650 nm optical input

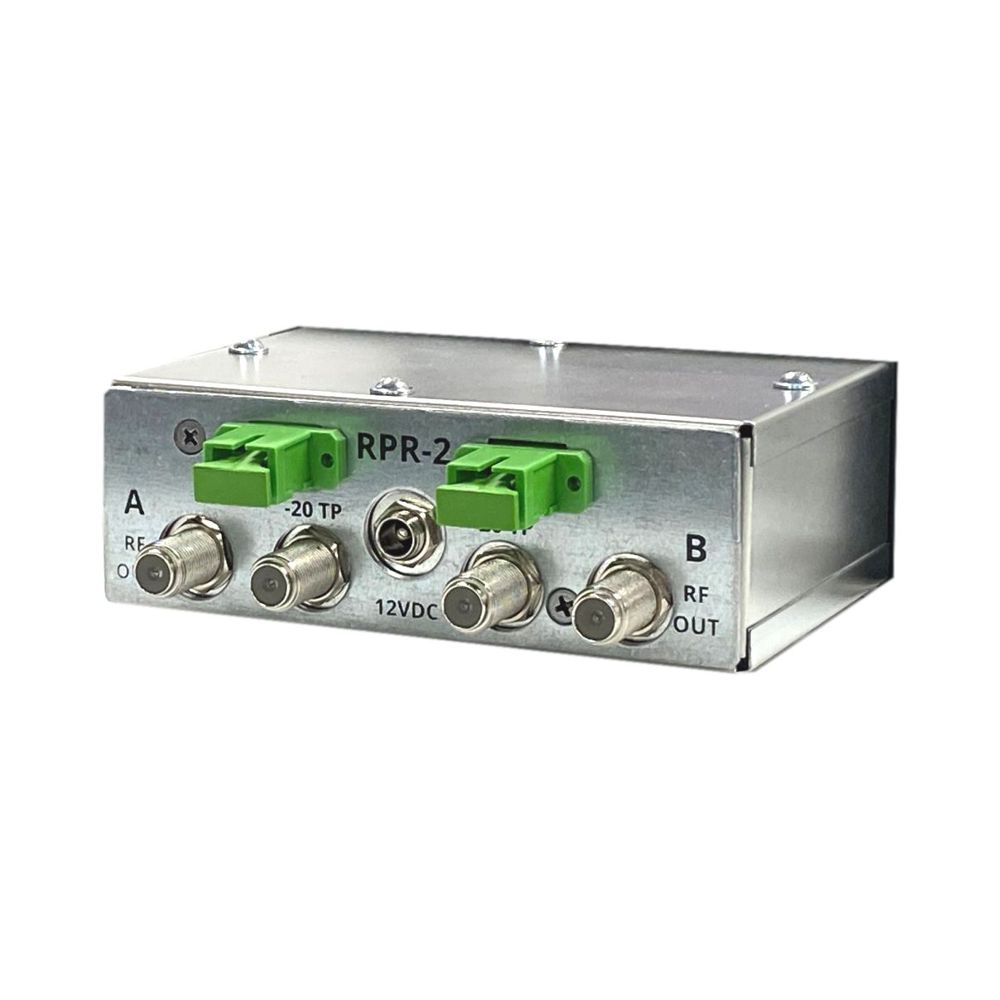

- SC/APC single mode fiber optic connector
- -6 to 0 dB Optical AGC
- 17 dB optical input range
- Single 12VDC power supply for both receivers
- Works with all current DOCSIS Architecture
Brand
Toner Cable Equipment Inc.
