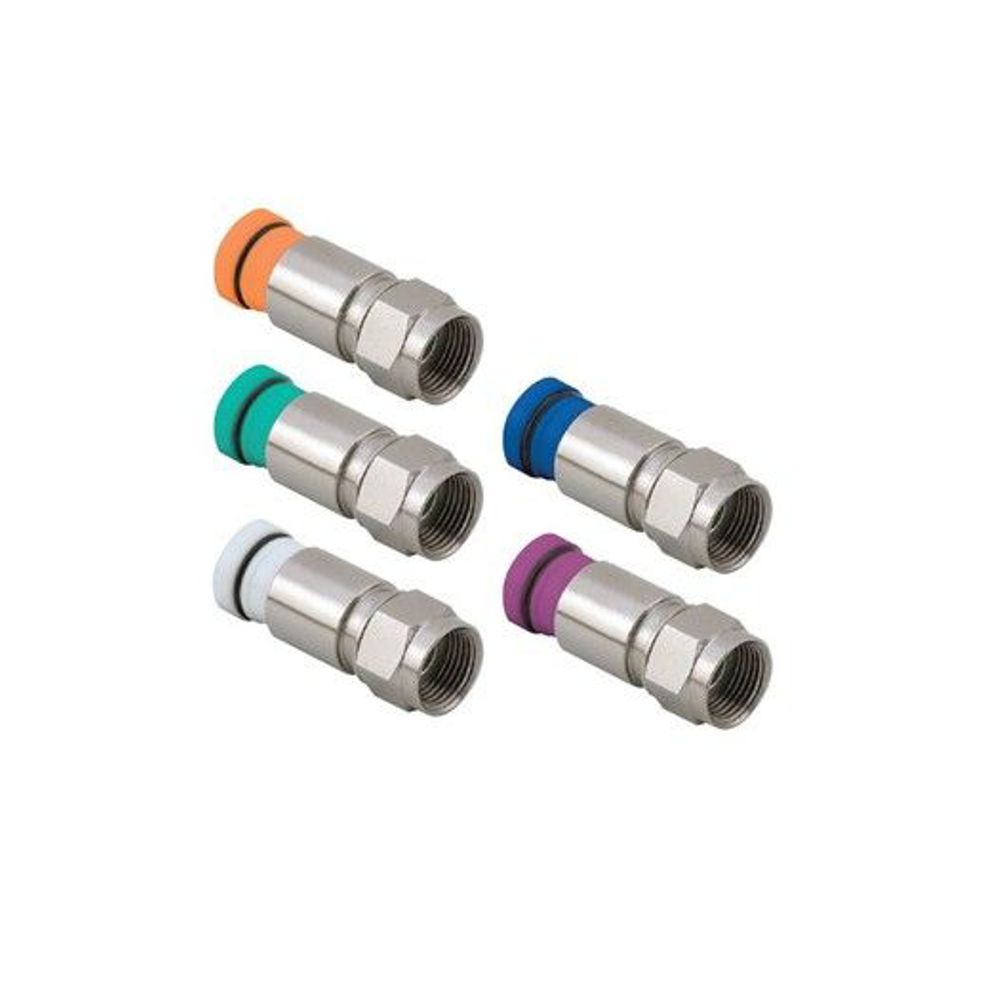

SNS1P6 SNS 1 Piece RG6 F Compression Connector
**DISCONTINUED** EX6XL IS DIRECT REPLACEMENT EX6XL Universal RG6 Compression F Connector
Belden SNS One-Piece Compression Connectors, feature a user-friendly, pre-positioned and detachably coupled plastic sleeve, incorporating time-proven advantages for a reliable connection.
Snap-N-Seal® One Piece Connectors use the same proven 360º compression design and installation tools as other Snap-N-Seal® products.
- To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body.
- True 360º compression onto cable ensures superior RF shielding performance, -90 dB effective shielding (typical on 60% bonded foil cable).
- Permanently stamped part numbers and color-coded sleeves for easy identification before and after installation.
- Installation requires one-step 1/4” – 1/4” cable preparation and standard compression tools used for all 59 & 6 series Snap-N-Seal® product families.
- Quad-sealed system prevents moisture migration.
- Incorporates a NiTin finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product.
- Superb return loss performance of -30 dB to 1GHz.
- Cable retention exceeds 40 lb. minimum as specified by the SCTE.
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 1.5 × 0.5 × 0.5 in |
Brand
Belden
Quality Coaxial Connectivity Solutions Belden is a global leader in end-to-end signal transmission solutions for data,video and audio applications. Our coaxial connectivity solutions productsfeature superior quality, high-performance compression connectors, tools andaccessories for a variety of coaxial installation applications.The patented design features of our Snap-N-Seal®, Double Bubble™ and F-Conn™connector brands provide a secure, dependable connection from start to finish.• TRUE 360º compression technology creating tools and connectors to work together asa complete, intregrated system• Connectors meet/exceed SCTE-IPC and Bellcore requirements• Connectors provides superior pullout strength• One-piece design option on connectors eliminate loose pins and sleeves• Non-blind entry sleeve and pin-guide in one-piece connectors assist with theinsertion of the cable into the connector• Connectors feature internal compression rings to reduce/eliminate water migration
