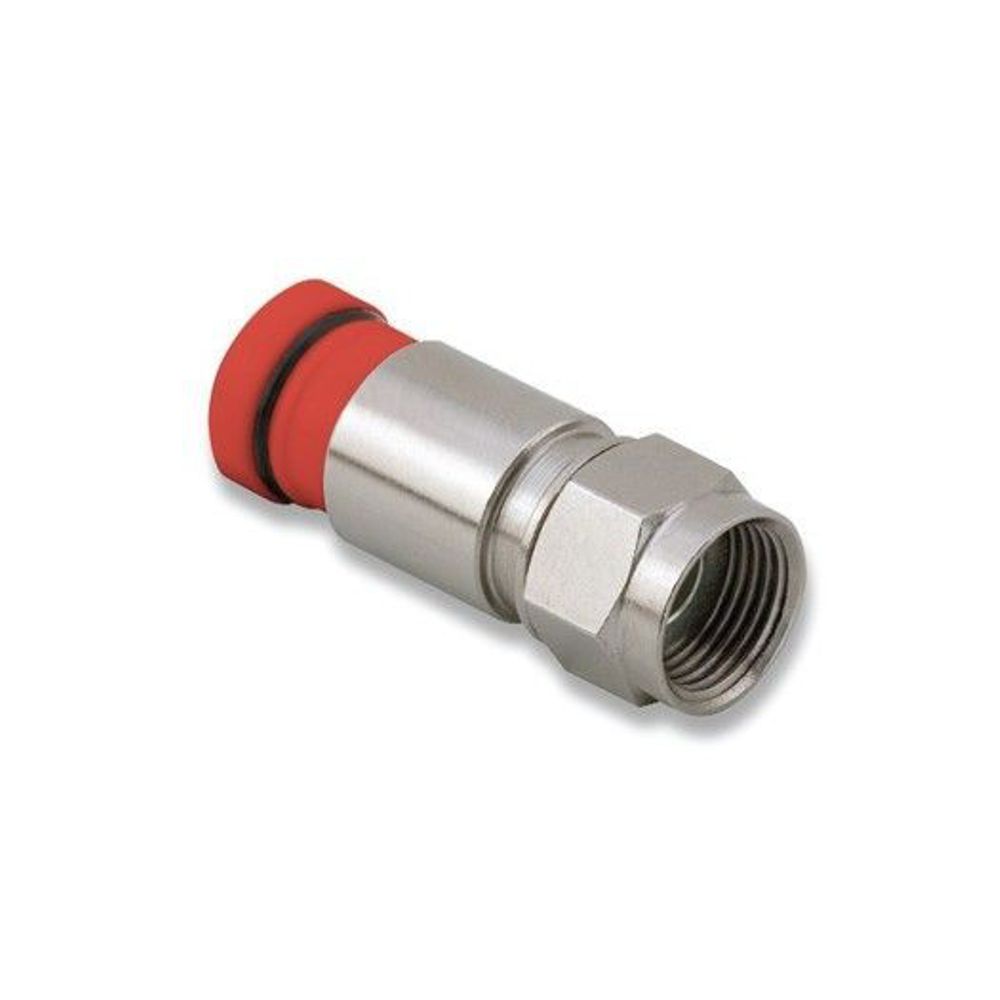

SNS1P6U SNS 1 Piece RG6 F Compression Connectors

**DISCONTINUED** Please see replacement EX6XL Universal RG6 Compression F Connector

SNS1P6U Ultimate, RG6 compression connector for 60% braid, Tri-shield & Quadshield cable. Features traditional 1P Snap-N-Seal design.

Full Description & Specs Call 215-675-2053

To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body.
The plastic sleeve’s separability from the connector body further simplifies difficult installations.
True 360° compression onto cable ensures superior RF shielding performance, -90 dB effective shielding (typical on 60% bonded foil cable).
Installation requires one-step 1/4” – 1/4” cable preparation and standard compression tools used for all 59 & 6 Series Snap-N-Seal® product families.
Quad-sealed system prevents moisture migration.
Incorporates a NiTin finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product.
Cable retention exceeds 40 lb. minimum as specified by the SCTE.

Additional information

Weight	.5 lbs
Dimensions	1.5 × 0.5 × 0.5 in

Brand

Belden

Quality Coaxial Connectivity Solutions Belden is a global leader in end-to-end signal transmission solutions for data,video and audio applications. Our coaxial connectivity solutions productsfeature superior quality, high-performance compression connectors, tools andaccessories for a variety of coaxial installation applications.The patented design features of our Snap-N-Seal®, Double Bubble™ and F-Conn™connector brands provide a secure, dependable connection from start to finish.• TRUE 360º compression technology creating tools and connectors to work together asa complete, intregrated system• Connectors meet/exceed SCTE-IPC and Bellcore requirements• Connectors provides superior pullout strength• One-piece design option on connectors eliminate loose pins and sleeves• Non-blind entry sleeve and pin-guide in one-piece connectors assist with theinsertion of the cable into the connector• Connectors feature internal compression rings to reduce/eliminate water migration
