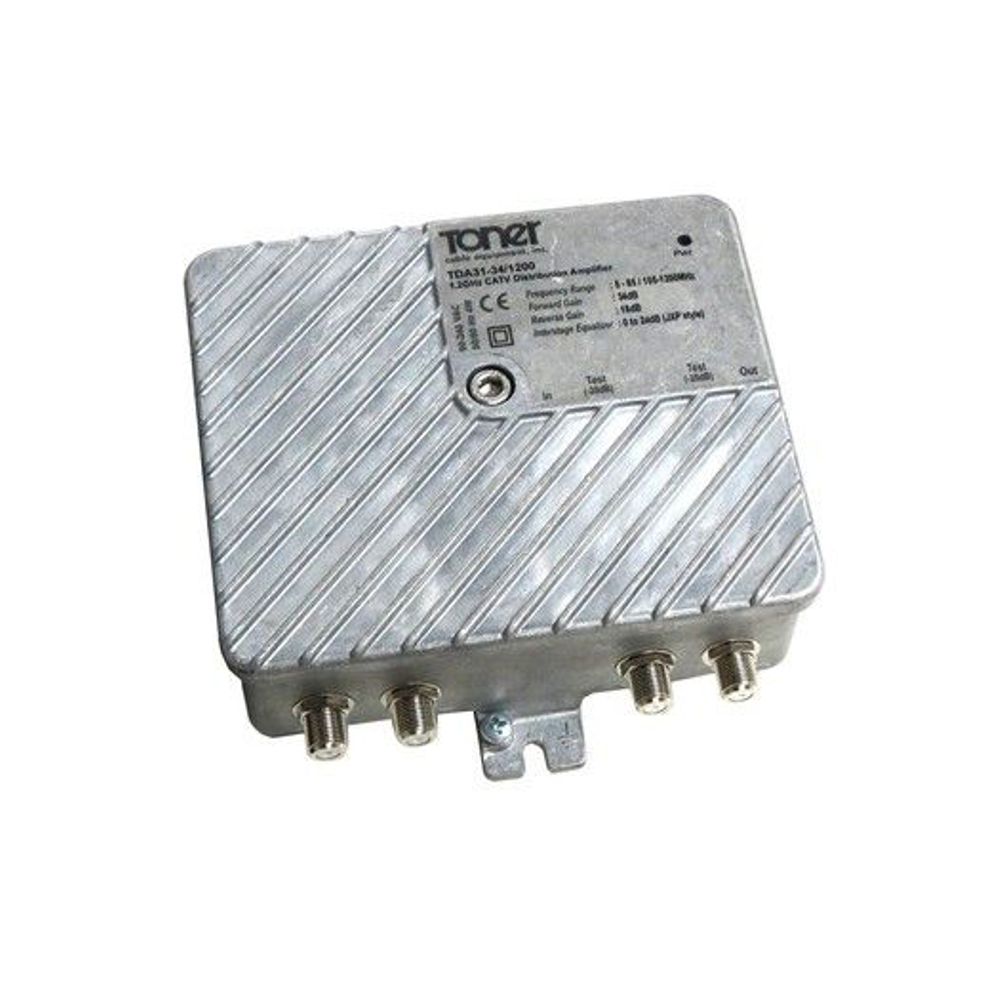

TDA31-34/1200 Distribution Amp, 2 Way, 1220 MHz, 34 dB Gain

$129.00 Each

TDA31-34/1200 5-1220 MHz DOCSIS 3.1 Amplifier, 34 dB Gain 105-1220 MHz Forward, 18 dB 5-85 MHz Reverse

Toner Cable’s TDA31/34/1200  is the newest amplifier in the Toner TDA series.  This amplifier is designed for the latest DOCSIS 3.1 deployments where bandwidth to 1220 MHz is needed.  It features an expanded 5 to 85 MHz reverse path and a 105 to 1220 MHz forward path which meets the latest bandwidth requirements for deployment of DOCSIS 3.1 systems.

The TDA31/34/1200DOCSIS amplifier uses GaAs E-pHEMT hybrids which reduce distortion levels while providing a high 34/46 dBmV output level.  With 34 dB of forward gain and 18 dB gain in the reverse band the amplifier is suited for just about any broadband system application such as CATV AV Systems, Apartments, Hospitals, Hotels or Motels and Sporting Venues, Stadiums, Arenas, Race Tracks, etc.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • DOCSIS 3.1 Broadband Compatible
  • 1.2 GHz Bandwidth
  • 105-1200 MHz Forward Path
  • GaAs E-pHEMT Hybrid
  • 34 dB Gain
  • 6 dB Noise Figure
  • JXP Style Plug-in Pads & Equalizers (the JXP pad is used as a Equalizer as well, see images!
  • 5-85 MHz Reverse
  • 18 dB Reverse Gain
  • 90-240 Volt Power Supply
  • Die Cast Aluminum Housing

Additional information

Weight 4 lbs
Dimensions 14 × 9 × 4 in

Brand

Toner Cable Equipment Inc.

Toner Cable Equipment Inc. Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.
Toner Cable
TDA31-34/1000 Spec-Sheet
TDA31-34/1000 User Manual

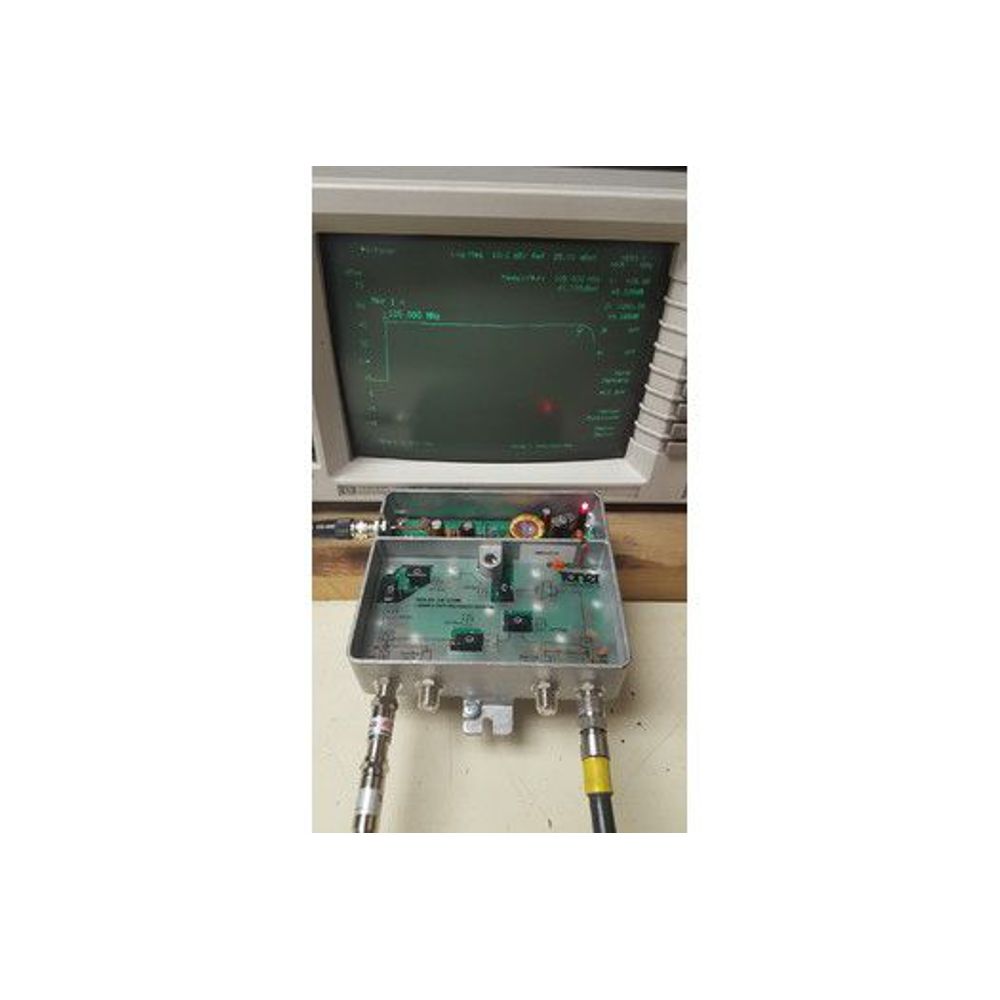

TDA31-34/1000 with 10 dB Pad as a Equalizer
