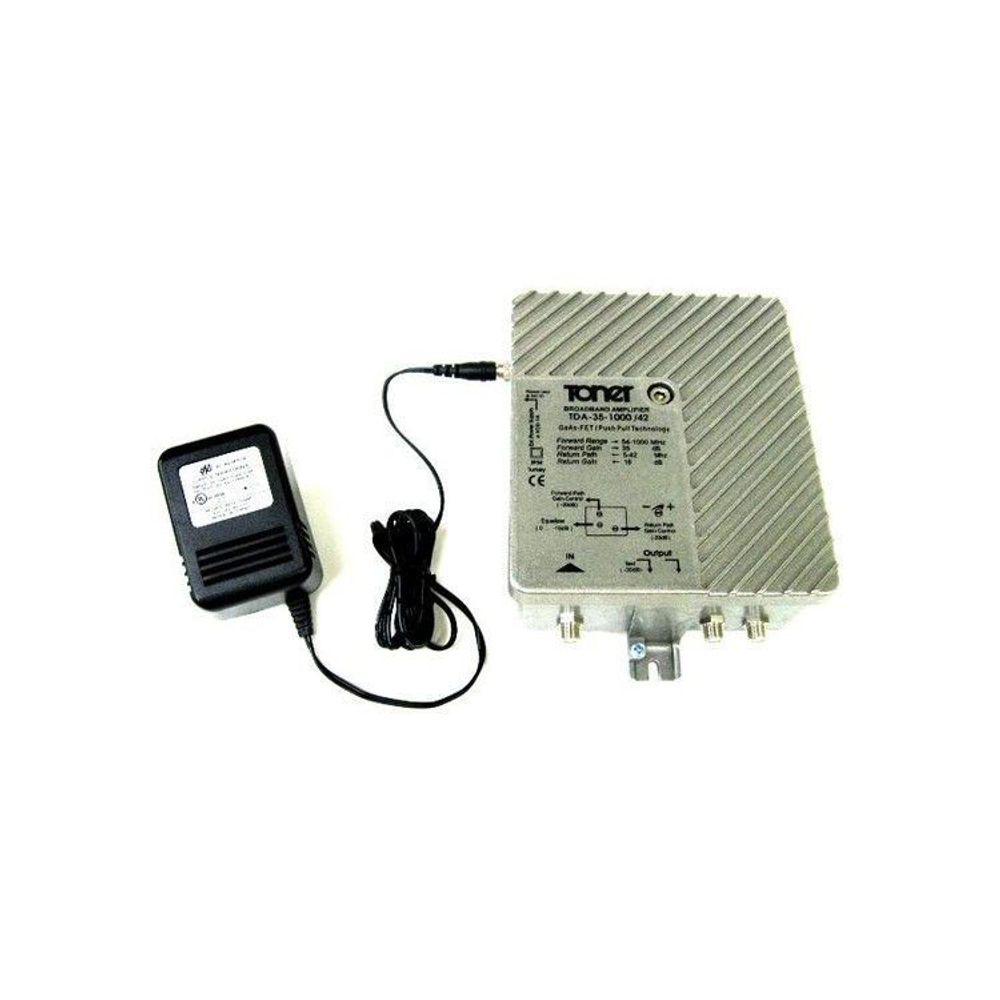

TDA35-1000 RF Distribution Amplifier Product Image

TDA35-1000 2 way 1 GHz Amplifier, 35 dB Gain

$195.00 Each

Toner Cable’s TDA35-1000  two-way apartment house type amplifiers with active return are broadband indoor GaAs-Fet / Push Pull distribution amplifiers designed for 1 GHz RF distribution systems such as those in Cable Television Apartments, Hotels, Hospitals and other applications where a high quality, low noise figure amplifier is necessary to amplify the signals in both the forward and return paths.

Two models are available with two different reverse signal bandwidths 5-42 MHz and 5-65 MHz.

These are all designed with flat operational gain of 35 dB in the forward bandwidth and 18 dB in the reverse bandwidth. They have an input equalizer in the forward bandwidth for balancing, a forward 20 dB gain control and a 20 dB reverse gain control.

The amplifiers are powered by a plug in wall type 6 VDC power transformer that is available in either 117 or 230 volt. Internal power supply models are also available with item codes as TDA35-1000/65/IP.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • 1 GHz forward bandwidth
  • GaAs-Fet push pull for high output levels with low distortion
  • Active push pull reverse
  • Gain and equalization controls
  • RFI housing
  • Diecast aluminum housing for heat dissipation
  • UL and CE listed power transformers
  • 117 or 230 volt

Additional information

Weight 4 lbs
Dimensions 14 × 9 × 4 in
