1.2 GHz RF amplifier

TDA40D31-1220 Amplifier, 2 way 1220 MHz 40 dB Gain

$355.00 Each

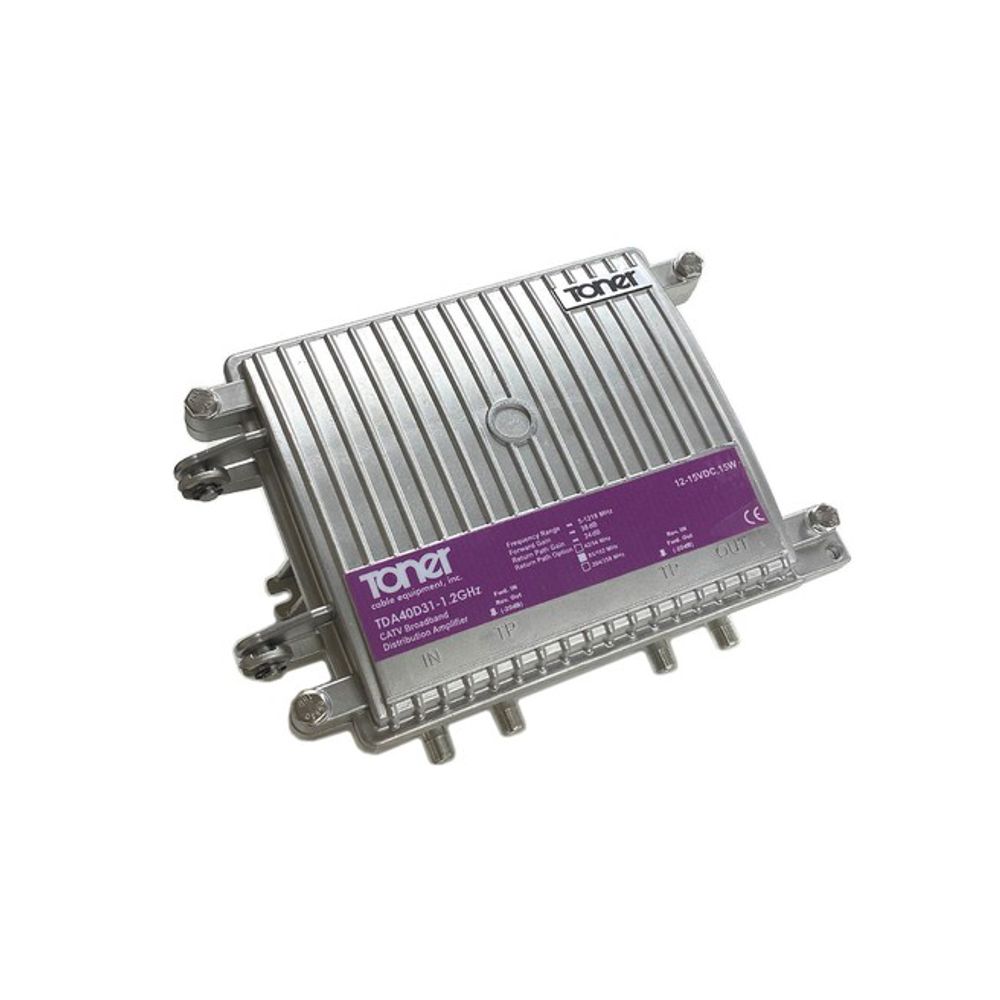

The Toner TDA40D31-1200 Broadband Amplifier is the newest addition to the Toner TDA series of amplifiers.

This amp was specifically designed for the newer DOCSIS 3.1 systems where bandwidth to 1220 MHz is required and several reverse frequency splits are available. Amplifier comes with a fully upgradeable configuration from a stock 42/54, reverse split to 85/102 and 204/258 by simply exchanging the diplex filter sets- future proofing upstream bandwidth requirements.

This broadband DOCSIS 3.1 amplifier has 40 dB of forward gain with minimal distortions which is accomplished with the use of GaAs hybrid silicone technology with a 50 dBmV output capability. The amp has a GaAs reverse amp with 24 dB of gain. Both forward and reverse are set using JXP style plug in pads for both gain and output control as well as for equalization. The TDA40D31-1200 is built in a hinged aluminum housing that ensures 100 dB RFI and weather protection to IP54. Powering is by a remote 24 VDC plug in transformer. Meets or exceeds the following standards CE, FCC Part 15, RoHS, IP54

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • Fully meets the requirements of DOCSIS 3.1.
  • Downstream frequency bandwidth can reach up to 1220 MHz.
  • The amplifier comes stock with standard 42/54 MHz split and can be upgraded to 85/102 MHz or 204/258 MHz split with plug in diplex filter kits.
  • GaAs-Fet Push Pull technology providing superior distortion performance and low noise.
  • Powering options as 90-240 VAC mains, 14-16 VDC external power supply and 40-90 VAC
  • Remote (HFC).
  • Universal JXP style pads are used for both attenuator and equalizer functions as technician friendly controllers.
  • Surge protected to 6kV on all ports.
  • -20dB external test points
  • Aluminum die-cast housing with superior heat dissipation.
  • CE RoHS, FCC Part 15, IP54 Conformance

Additional information

Weight 6 lbs
Dimensions 11.5 × 6.5 × 3 in

Brand

Toner Cable Equipment Inc.

Toner Cable Equipment Inc. Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.
Toner Cable
TDA40D31-1200 Spec-Sheet
TDA40D31-1220 Users Manual
