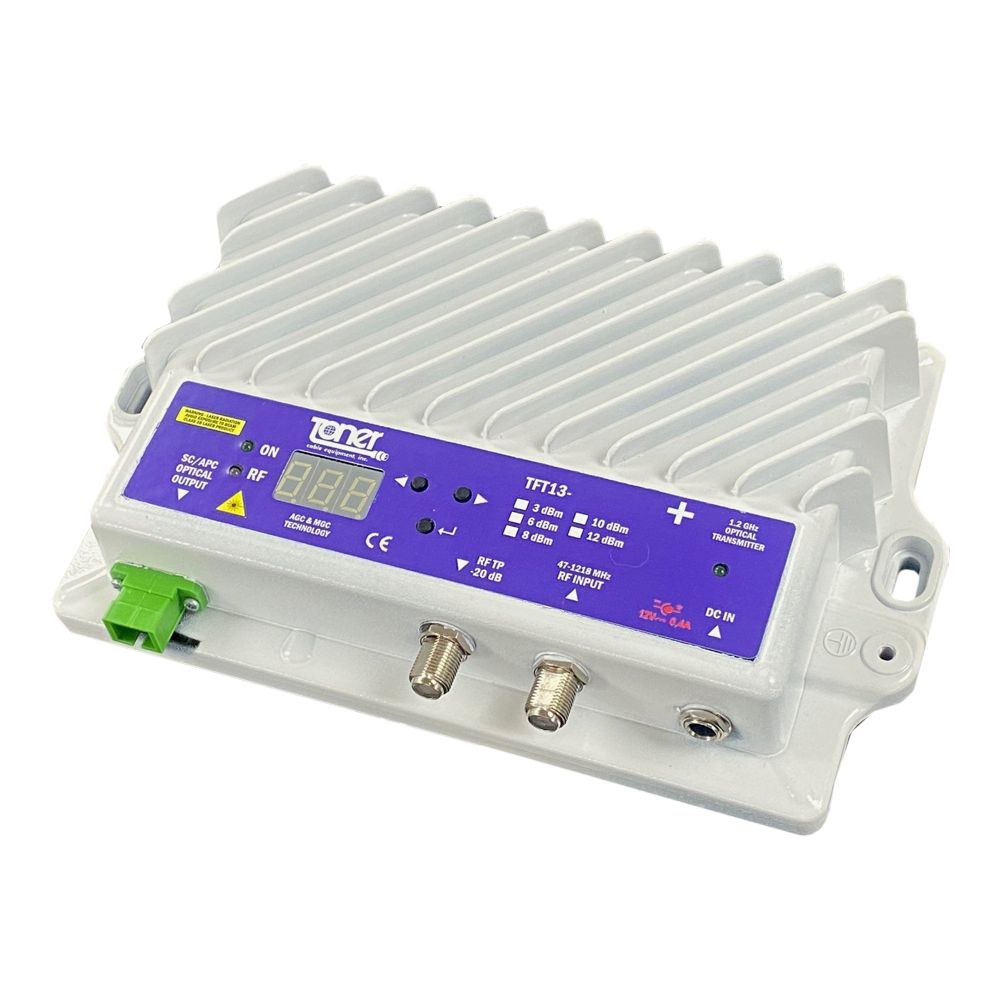

TFT13 Series Fiber Optic Transmitter, 1310nm
$580.00 – $1,160.00
The TFT13 series optical transmitter is for any broadband application where a stable high performance transmitter is required such as in FTTX applications. The TFT13 transmitters have a wide RF input window of 6 to 41 dBmV with a AGC function to ensure a stable optical output level with DFB lasers. Output is on a SC/APC optical connector with 5 different output levels available; 3 dBm, 6 dBm, 8 dBm, 10 dBm and 12 dBm. The AGC and Manual Gain Control is accomplished by use of 3 front panel buttons and an LCD display. Powering is by a 12 VDC adapter (included) which uses a F Male type fitting to ensure a reliable connection.
Usually ships same business day1 Year Limited Warranty
- Wide RF Bandwidth to 1220 MHz to support newer DOCSIS deployments
- 5 optical output levels to choose from: 3, 6, 8, 10 and 12 dBm
- Rugged Diecast Aluminum housing with integral heat sinks for optimum operation and no Fans to fail or ingest dust
- Manual or AGC Operation
- Wide RF input window 6 to 41 dBmV
- 12V Powered with supplied P/S
- F Female input connector for power
- F Female RF input and test point
- SC/APC Optical Connector
- Compact 8-1/8” x 5” x 1-3/4” size
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Select An Option | 3 dBm, 6 dBm, 8 dBm, 10 dBm, 12 dBm |
