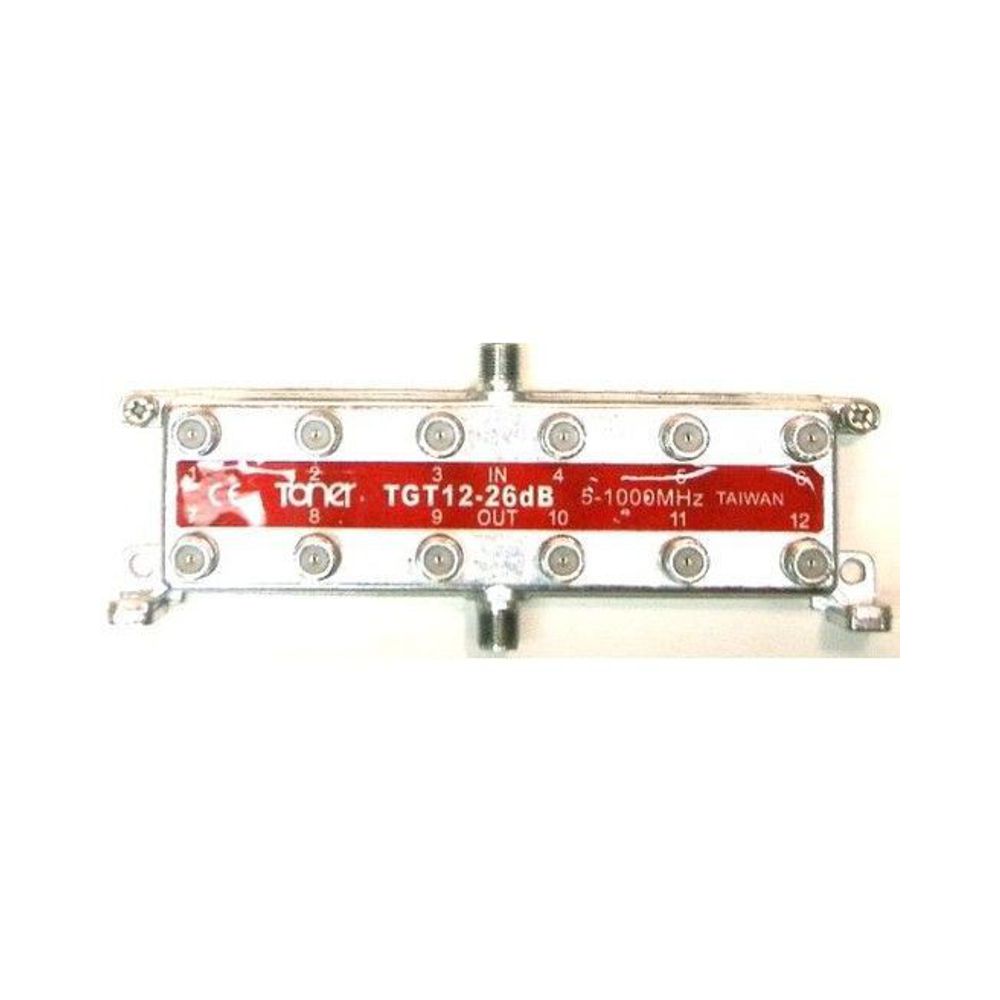

TGT12-* 12 Port 1GHz taps (replace * with tap value)

$17.00 Each

These multiport, indoor/outdoor directional coupled taps are the most recent state of the art design, and feature our patented circuit design and surface mount technology.  These taps feature our unique dual tongue and groove cover installation to maintain better than -100 dB RFI integrity which minimizes or eliminates RF ingress or leakage. The housings are then further epoxy sealed to prevent any moisture absorption. The housings are zinc diecast with Tin Nickel plating for superior corrosion protection.

Available in 2, 4, and 8 port configurations with standard 3 dB tap value spacing for optimum system design. The 2 and 4 port models both use a small 1 3/4 ” x 1 3/4 ” housing and the 8 port model uses a 1 3/4 ” x 3 7/8 ” housing. These small sizes allow the taps to be installed in the tightest of locations. Each housing incorporates integral mounting slots and ground blocks for convenience. The taps have “F” ports for input and output, as well as for the tap ports. Tap ports are on 7/8 ” centers to allow for trap and filter installation.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • 5 to 1000 MHz Bandwidth
  • RFI greater than -100 dB
  • 75 Ω Impedance
  • Port to Port Isolation 23 dB minimum
  • Return Loss 20 dB typical, 18 dB minimum
  • Available in the following tap values:17, 20, 23, 26, 29 dB

Additional information

Weight 0.75 lbs
Dimensions 6 × 2 × 2 in
Select dB Value

17, 20, 23, 26, 29

Brand

Toner Cable Equipment Inc.

Toner Cable Equipment Inc. Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.
Toner Cable
TGT12 Spec-Sheet
