- Available in the following tap values: 11T, 14, 17, 20, 23, 26, 29, 32 dB
- Tongue & Groove Housing
- Supports DOCSIS® 3.1 expanded bandwidth
- 5 MHz to 1.2 GHz Bandwidth
- Supports various band splits, 47/54, 85/102, 204/258 MHz MHz
- Minimum 110 dB RFI Shielding
- Low Intermod Distortions < 100 dB
- Nickel Plated Zinc Alloy Housing
- 15 PSI Waterproofed F Ports
- 200 G Center Conductor Retention
- 75 Ohm Impedance
- Machined F Connectors On 1” Spacing
- Blocking Capacitor On All Ports
- Integral Ground Block
- 6 kV Ring Wave Surge Protection

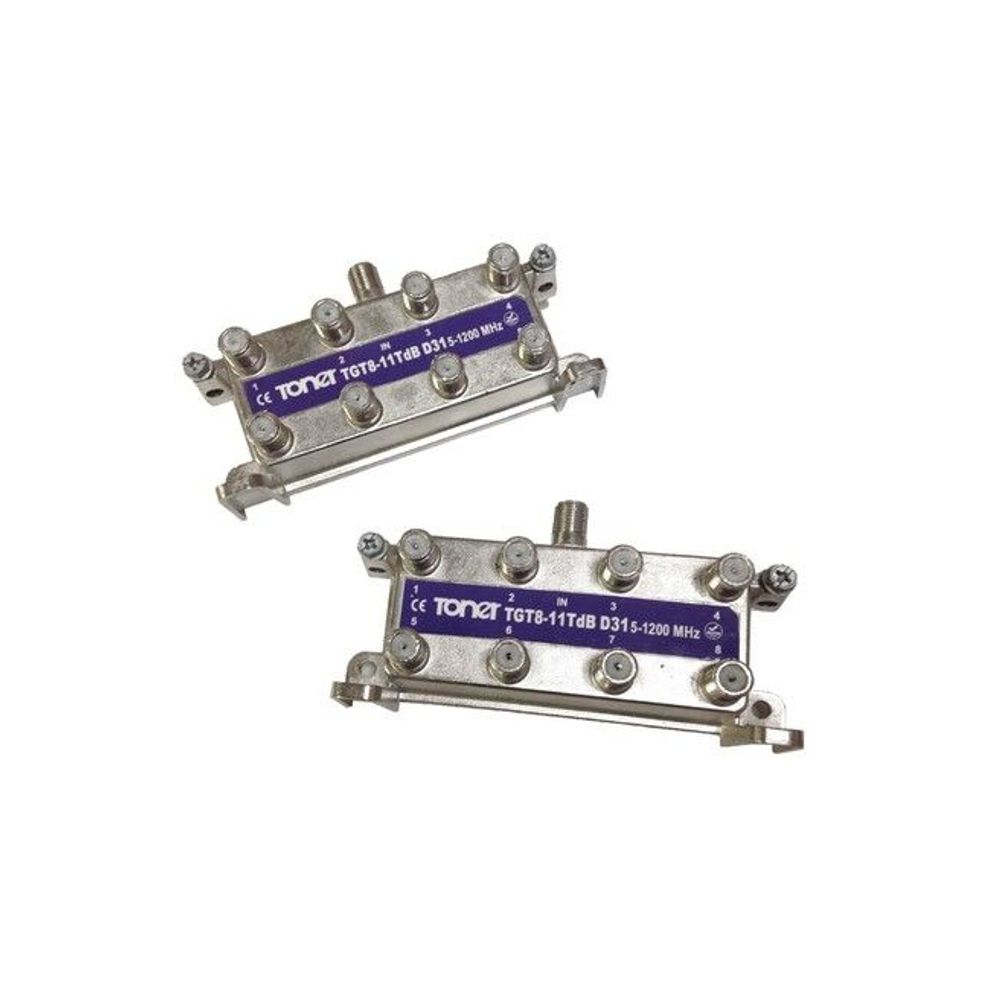

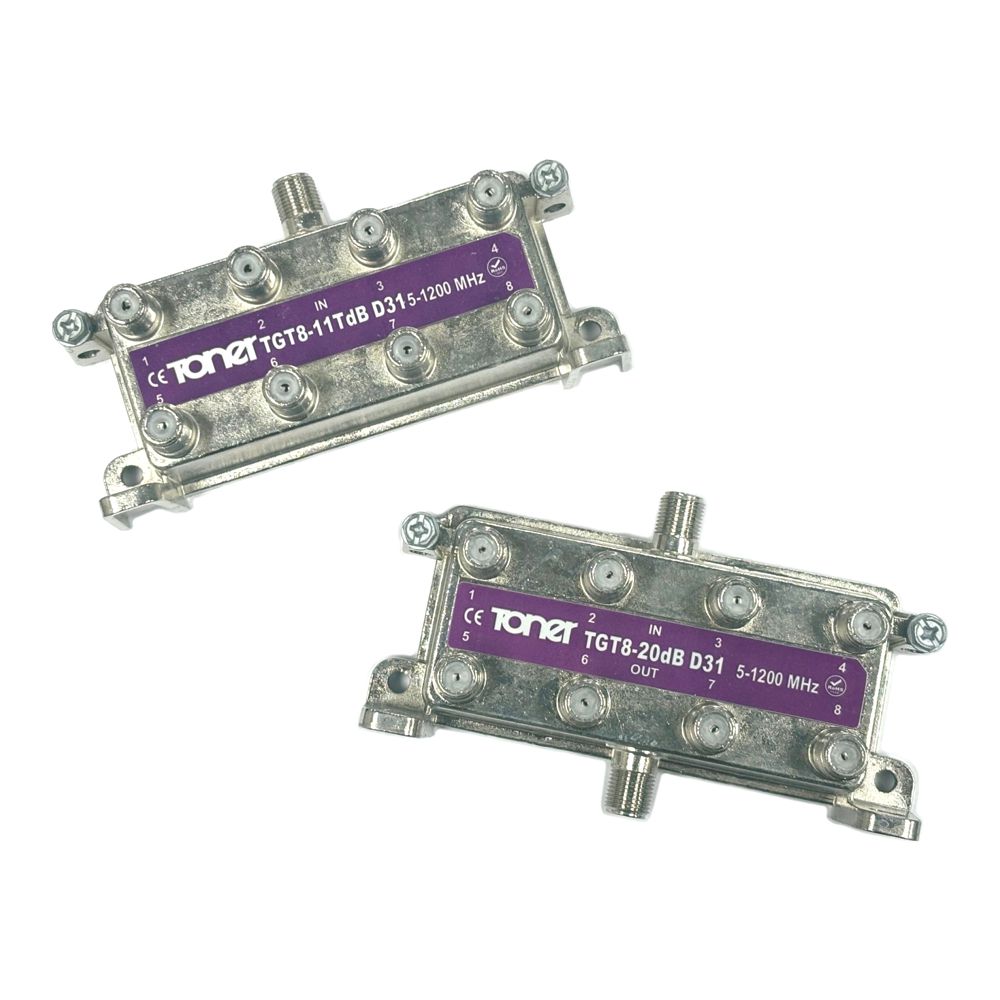

TGT8-*D31 8 port taps, 1.2 GHz (replace * with tap value)
$10.00 Each
The Toner TGT Series of 2, 4 and 8 Port Taps are designed for cable signal distribution systems. The bandwidth to 1220 MHz make these ideal for any system deploying DOCSIS 3.1 technology. They are also backwards compatible with other DOCSIS deployments. Built with SMT Technology on premium PC Boards the taps have the best performance available. Meeting all current SCTE and ANSI requirements these taps are ideal for any Cable TV system or other TV Signal RF distribution system.
Additional information
Weight | 0.10 lbs |
---|---|
Dimensions | 3 × 6 × 1 in |
Select An Option | 11T (terminating tap), 14, 17, 20, 23, 26, 29, 32 |
