TIBA-30-1220 1.2 GHz 2 way amplifier, 30 dB Gain

$515.00 Each

The Toner TIBA-30-1220 RF distribution amplifier is the latest addition to the Toner line of amplifiers designed for systems out to 1220 MHz such as those using expanded DOCSIS 3.1 frequencies. The TIBA amp features high performance GaAs-Hybrid silicone which provides better performance and better distortion characteristics than older PushPull and PHD type amplifiers. The amplifier is supplied with standard 5 – 42 / 54 – 1220 MHz diplex filters but has optional 5-55 / 102-1220 or 5-204 / 258-1220 MHz diplex filters available. It has a forward gain of 33 dB and a reverse gain of 24 dB. Setup of the amplifier is done with JXP series pads and equalizers. The reverse path has both input and output plug-in attenuator pads as well.

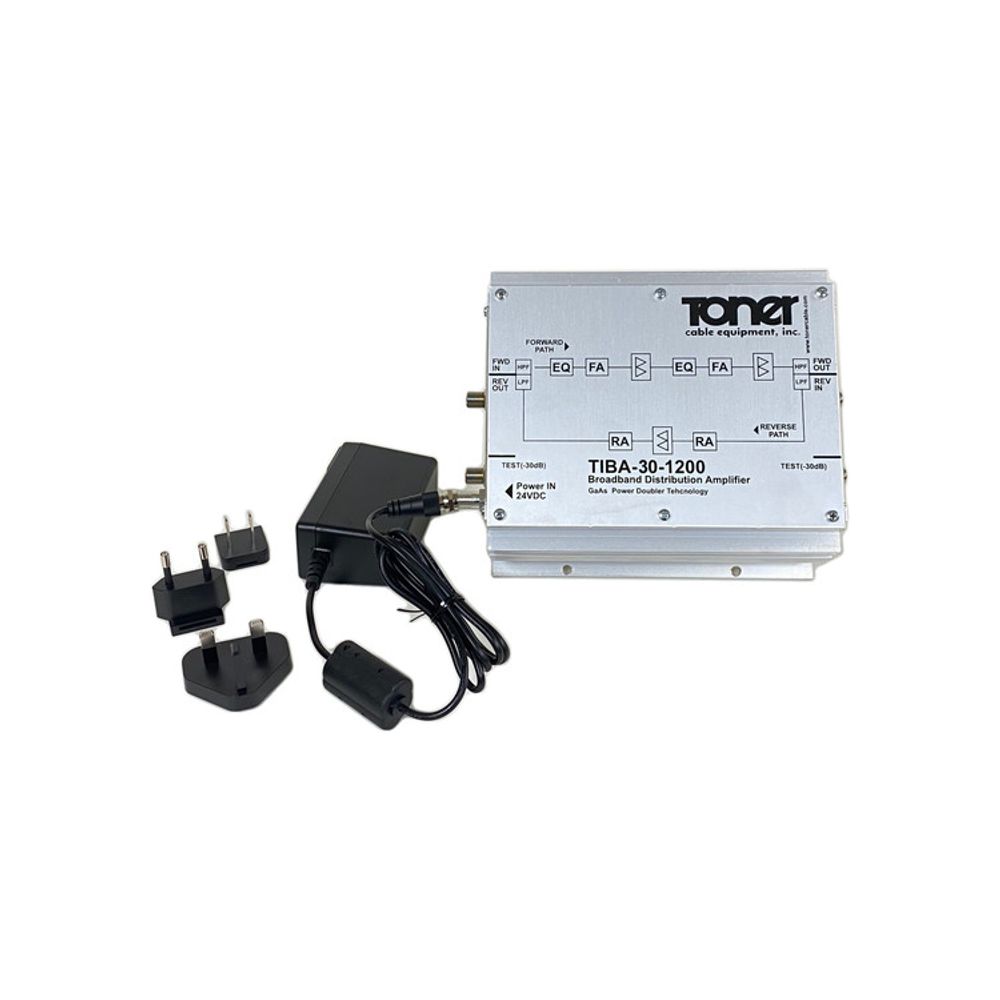

The TIBA is built in an extruded aluminum housing that is designed for heat dissipation as well as RFI. The cover is removable for access to the pads and equalizers. Power is with a UL listed plug in switched mode transformer 100-240 VAC that is supplied with US, British, and European plugs.

Meets or exceeds the following standards CE, FCC Part 15, RoHS, IP54

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • 54-1220 MHz forward path, 5-42 MHz reverse (5-55 / 102-1220 & 5- 204 / 258-1220 MHz Model Options)
  • 33 dB forward gain, 24 dB reverse
  • Plug-in attenuators and equalizers
  • GaAs power doubling technology (forward)
  • Separate UL listed universal power supply
  • Extruded aluminum housing with heat sink for optimum heat dissipation
  • Optional Toner JXP Pad Kit Available Contains 10 Each 1, 3, 6, 9, 12, 16, 18 & 20 dB
  • Optional Toner JXP EQ Kit Available Contains 1 Each 2, 6, 10, 15 & 18 dB
  • CE RoHS, FCC Part 15, IP54 Conformance

Additional information

Weight 6 lbs
Dimensions 14 × 8 × 6 in
