TOX HDTV Encoder/Modulator

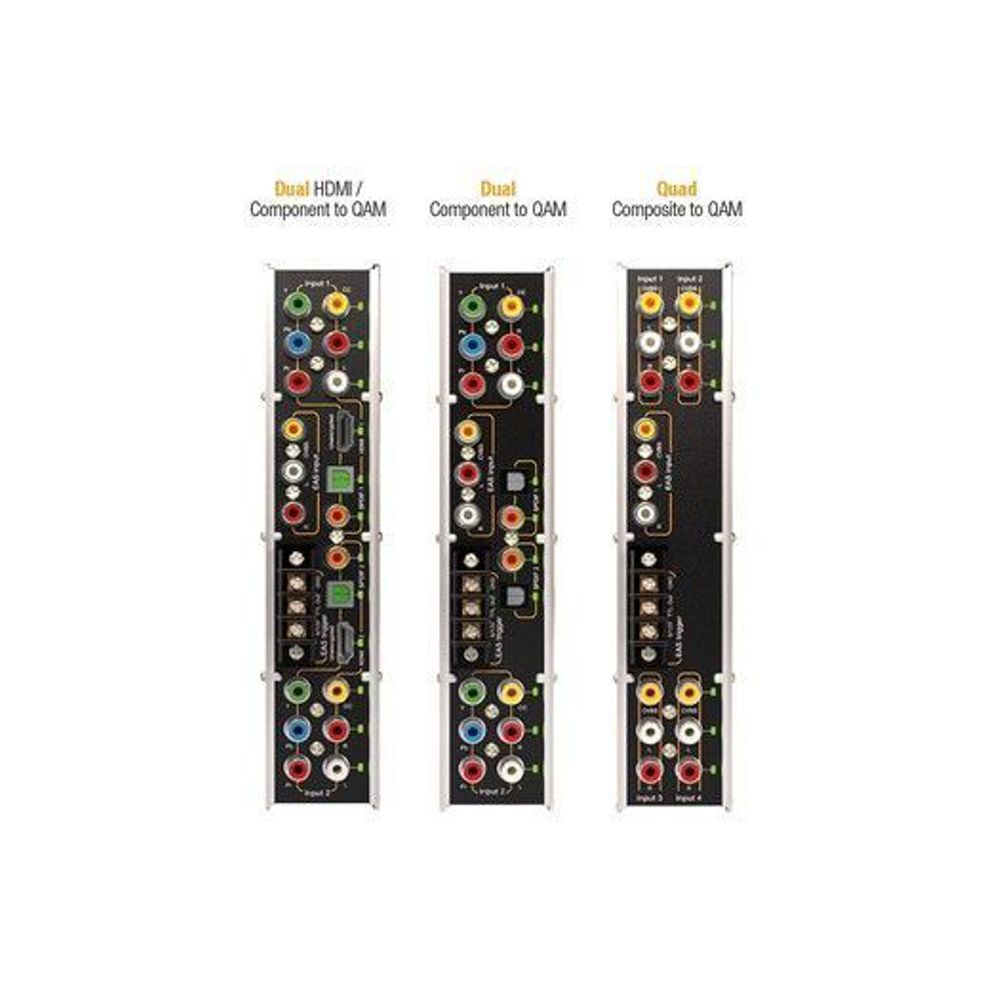

The Televes family of HDTV encoder/modulator products offers MPEG-2 or H.264 encoding at rates up to 1080p, with either 2 HDMI and component, 2 component, or 4 composite inputs with a single 􀀁QAM RF channel out for broadcast over new or existing single-wire coax cable 􀀁infrastructure to an unlimited number of HDTVs.

It supports Dolby® Digital audio encoding ô€€ensuring quality and compatibility with any HDTV, Closed Captioning,ô€€ and an optional EAS interface with ASI input and output for convenient signal ô€€management, and a watermarking option that enables forensic analysis ofô€€the content in support of content owners and licensing.

The units are also equipped with􀀁 the innovative Televes integrated RF combiner and a built-in ethernet switch for integration and control of an entire system without needing additional 􀀁accessories. Its high density, with up to 28 encoded channels per chassis,􀀁 is optimum for large channel count environments􀀁 where􀀁 modularity 􀀁and 􀀁flexibility are critical.

All this with the same form factor and􀀁 comprehensive local and web based remote monitoring, control, and update􀀁 capability of the T.0X family of products for easy integration and operation of a 􀀁unified video headend.

Full Description & SpecsCall 215-675-2053
Safe Checkout

  • Up to 1080p MPEG-2 and H.264 encoding with auto-detection of input type and format
  • Real-time Dolby® Digital audio encoding
  • PSIP tables (VCT) allow users to configure 3 types of virtual channel maps for each channel
  • High power with +55 dBmV fully agile RF output from 5 to 1002MHz and >40dB MER
  • Optional EAS interface with composite video and L/R audio
  • Integrated ASI I/O provides easy EAS signal management
  • Same form factor and interface as the other T.0X family members
  • Easy-to-use and comprehensive remote control/monitoring/alarms from any web browser
  • Local configuration with hand-held programmer
  • Integrated RF Combiner and Ethernet switch for rapid deployment
  • Automatic remote firmware upgradeability for new future-proof features
  • Invisible watermarking for forensic content analysis

Brand

Televes

Providers Of Industry-Leading Hand-Held Meters And Analyzers Televes believes in delivering superior quality products through a truly “state-of –the-art” manufacturing process, as well as vigorous post-production certification testing. They stay true to their company motto: “Quality is manufactured, not controlled”.Their hand-held meters and analyzers, available through Toner Cable, provide lab-quality real time digital processing with an intuitive user interface, which reduces the learning curve. Televes Analyzers provide unrivaled speed and mathematical precision for all your measurements needs.
Televes Brand
T.OX Quick Start Guide
T.OX Spec-Sheet
