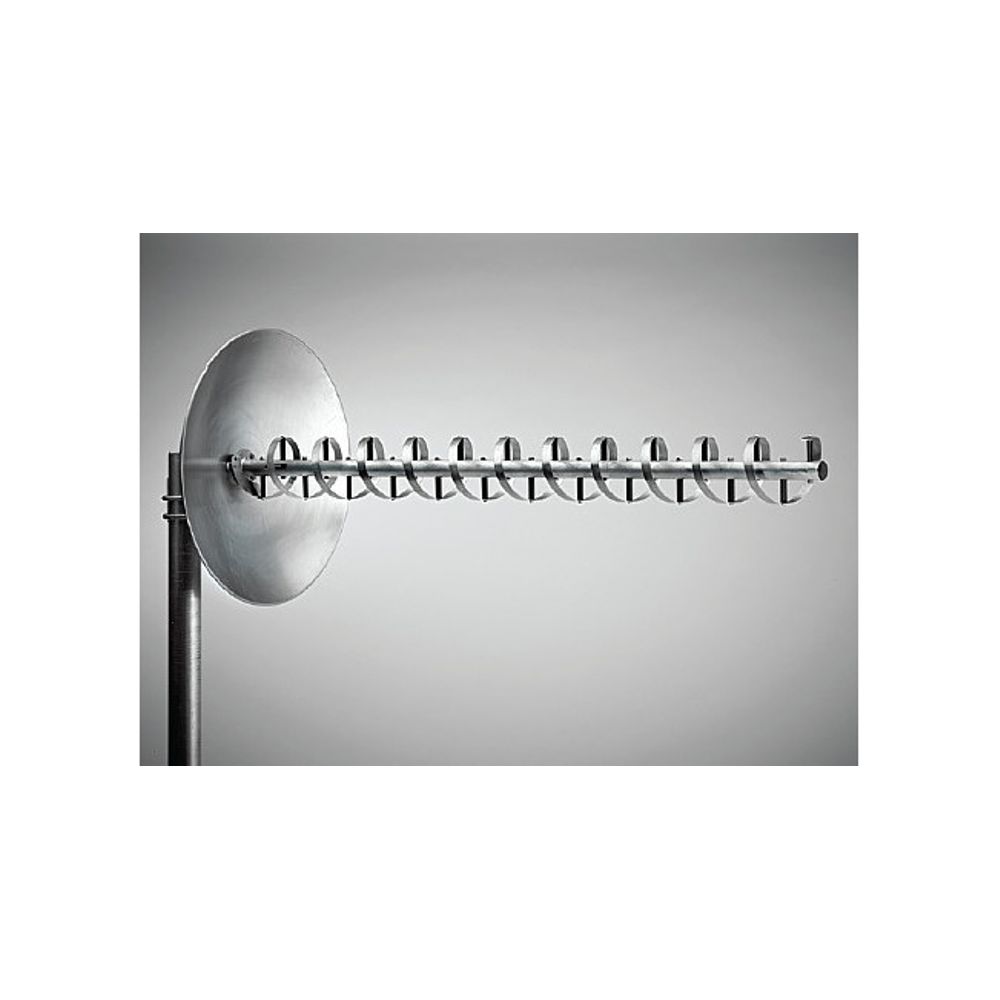

WH14-69/32 UHF Broadband Helical Antenna with 32 Inch Dish
$1,065.00 Each
The WH14-69/32 UHF helical antenna with 32 inch ground plane for channels 14 to 69 is circularly polarized for CATV Off-Air reception. The WH14-69 covers the entire UHF band (470- 806 MHz), channels 14 through 69.
Available as a single antenna or a customized antenna array. Electrical performance of the WH14-69, along with the high quality of materials used in the construction of this antenna, have resulted in a superior performance and longevity even when exposed to the most extreme weather conditions.
Ships in 1 to 2 weeks1 Year Limited Warranty
- 32″Â circular reflector
- Circular Polarization
- Broadband 470 to 806 MHz
- Gain: 18 dBic / 15 dBi
- Frequency: 470-806MHz
- Channels: 14-69
- HPBW Horizontal: 27°
- HPBW Vertical: 25°
- VSWR: 1.9 Max / 1.4 Typical
- Impedance: 75 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: F Connector
- Max Power: 25 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
Additional information
| Weight | 50 lbs |
|---|---|
| Dimensions | 120 × 16 × 12 in |
Brand
Wade Antenna
Wade Antenna specializes in the VHF/UHF cable television antennas and Wi-Fi 802.11 telecommunications antennas. The Wade Log Antenna was developed over 50 years ago and was tested by the Grand Alliance in 1996 and found to be the optimum antenna for digital off-air reception. With progressive leadership that emphasizes customer service through sales, marketing, research and innovation, Wade delivers unrivalled service and satisfaction alongside leading edge technology.
