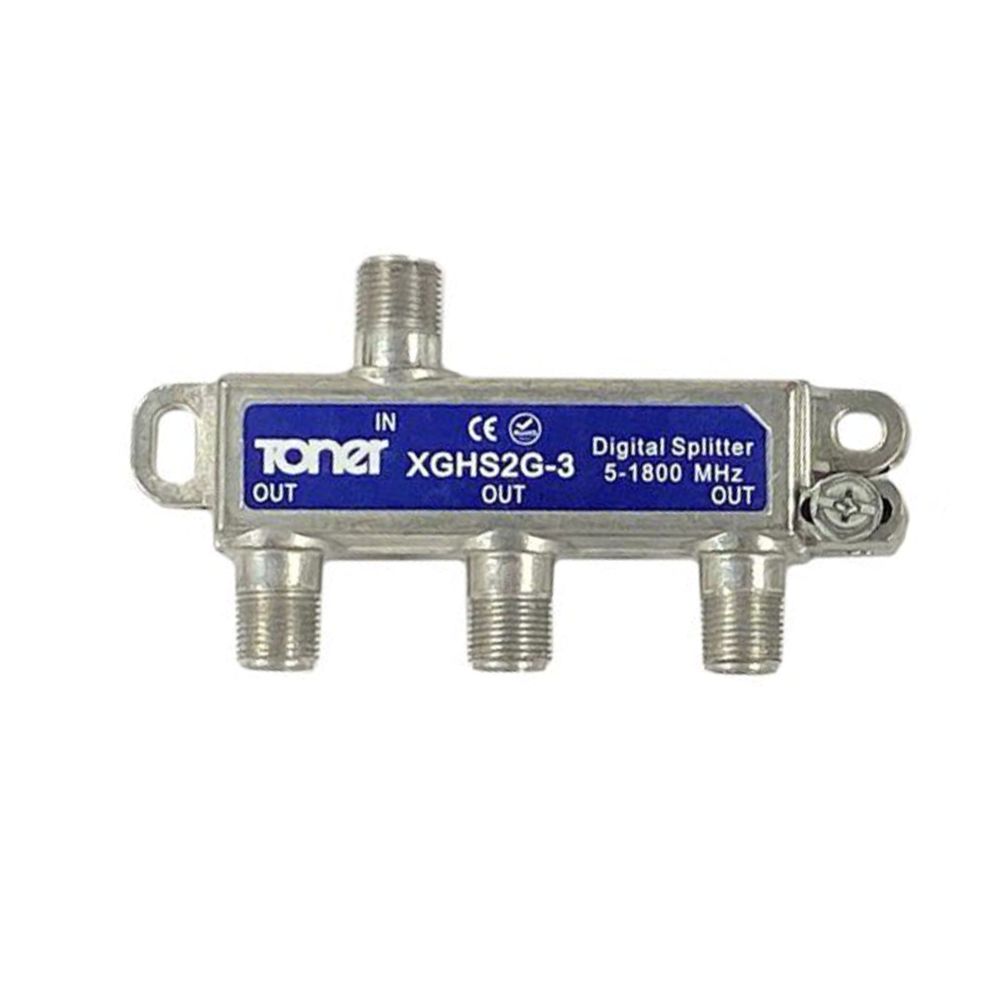

XGHS2G-3 1.8 Ghz 3 Way Splitter

XGHS2G-3 3 Way 1.8 GHz Horizontal Splitter

$2.55

Now the Toner XGHS series drop splitters are available to 1.8 GHz for any system deploying DOCSIS 3.1 or DOCSIS 4.0 where an increase in upstream bandwidth is needed and even greater downstream bandwidth in necessary.

By using the latest in ferrite core and winding technology along with premium PC boards and components we have been able to increase bandwidth without any sacrifice in performance.

These splitters feature a diecast zinc alloy housing with a nickel plating for superior corrosion resistance. Each F port is machined with 3/8-32 UNEF threads to meet SCTE and ANSI specifications and incorporates a patented seal that is waterproof to 15 PSI. The seizure mechanism for the center conductor is also patented and contacts the center conductor on 4 sides and provides more than 200g of retention force which ensures correct electrical contact. The F ports are on 1” spacing which meets SCTE & ANSI specifications.

All of these splitters feature DC blocking capacitors on all ports for power isolation protection and for induced spikes protection. These splitters feature superior performance, low intermediation distortions and meet or exceed all current industry standards.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • Solder Back
  • 5 MHz to 1.8 GHz Bandwidth
  • Minimum 120 dB RFI Shielding
  • Low Intermod Distortions < 100 dB
  • Nickel Plated Zinc Alloy Housing
  • 15 PSI Waterproofed F Ports
  • 200 G Center Conductor Retention
  • 75 Ohm Impedance
  • Machined F Connectors On 1” Spacing
  • Blocking Capacitor On All Ports
  • Integral Ground Block
  • 6 kV Ring Wave Surge Protection

Additional information

Weight .25 lbs
Dimensions 4 × 2 × 1 in
