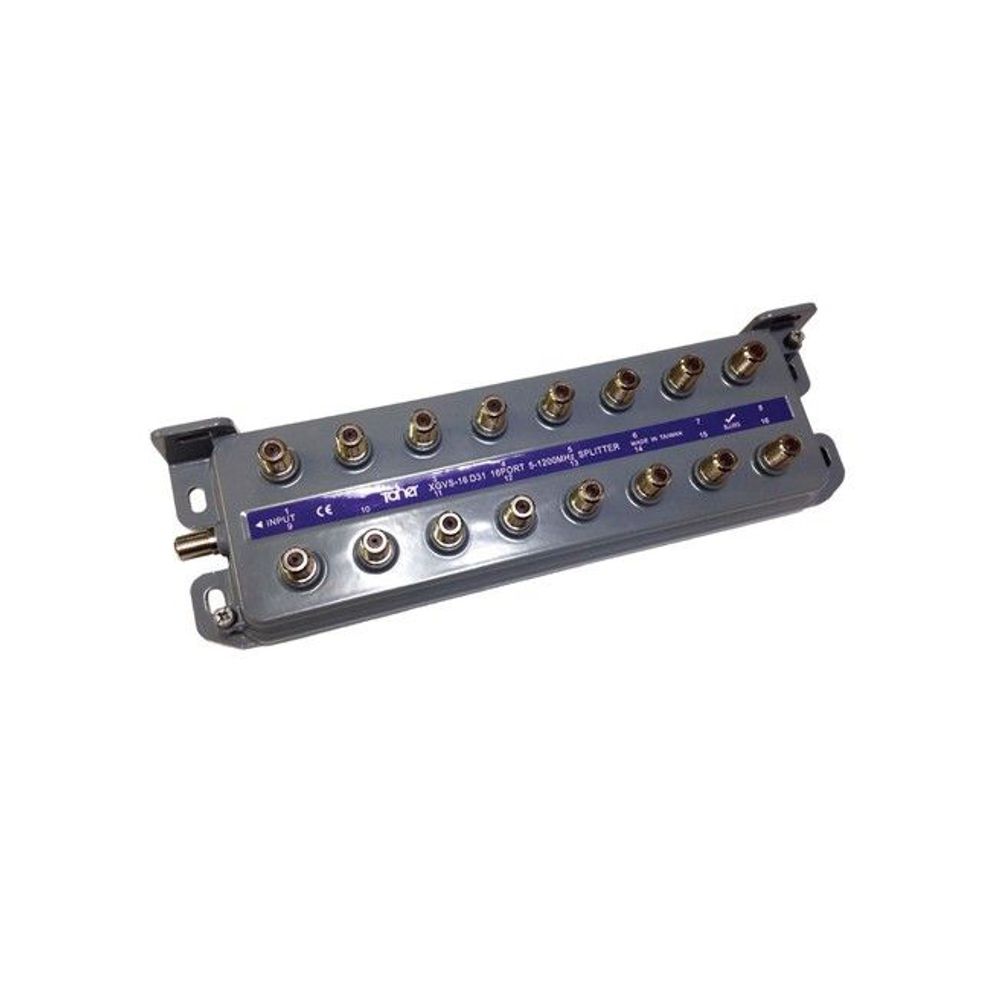

XGVS-16D31 16 Way 1.2 GHz Vertical Splitter

Name: XGVS-16D31 16 Way 1.2 GHz Vertical Splitter
SKU: TCE61102060
Price: 18.50 USD
Availability: InStock

$18.50 Each

This new series of drop splitters from Toner are designed to work in digital systems deploying DOCSIS 3.1 that utilizes the 5-85 MHz spectrum for upstream, and the 102 to 1200 MHz spectrum for downstream. By using the latest in ferrite core and winding technology along with premium PC boards and components we have been able to increase bandwidth without any sacrifice in performance.

These splitters feature a diecast zinc alloy housing with a nickel plating for superior corrosion resistance. Each F port is machined with 3/8-32 UNEF threads to meet SCTE and ANSI specifications and incorporates a patented seal that is waterproof to 15 PSI. The seizure mechanism for the center conductor is also patented and contacts the center conductor on 4 sides and provides more than 200g of retention force which ensures correct electrical contact. The F ports are on 1” spacing which meets SCTE & ANSI specifications.

All of these splitters feature DC blocking capacitors on all ports for power isolation protection and for induced spikes protection. These splitters feature superior performance, low intermediation distortions and meet or exceed all current industry standards.

Full Description & Specs

Usually ships same business day1 Year Limited Warranty

100 dB RFI Shielding
State-of-the-art Design
Aluminum Die-cast Housing and Back
Integral 90° Mounting Brackets
Plated Brass “F” Connectors
Integral Ground Block
Bandwidth: 5-1220 MHz
Baked Acrylic Anti-corrosive Finish
Featuring our Surface Mount Technology
Input Return Loss 16 dB Minimum

Additional information

Weight	1.75 lbs
Dimensions	10 × 4 × 1.5 in
