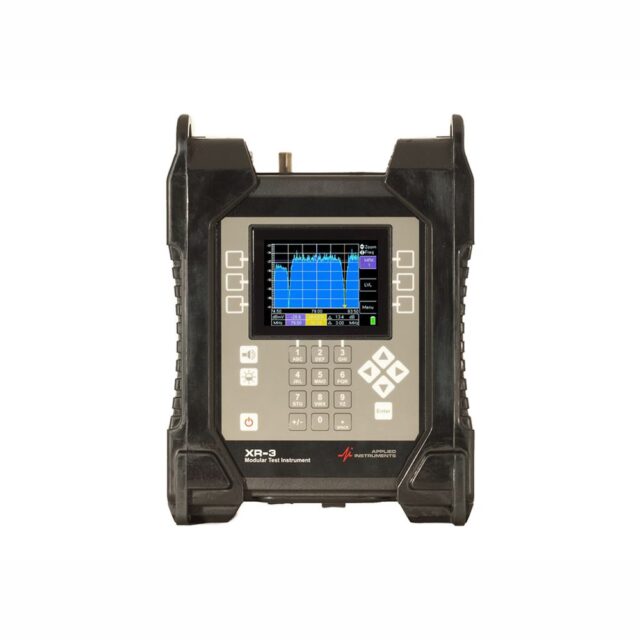

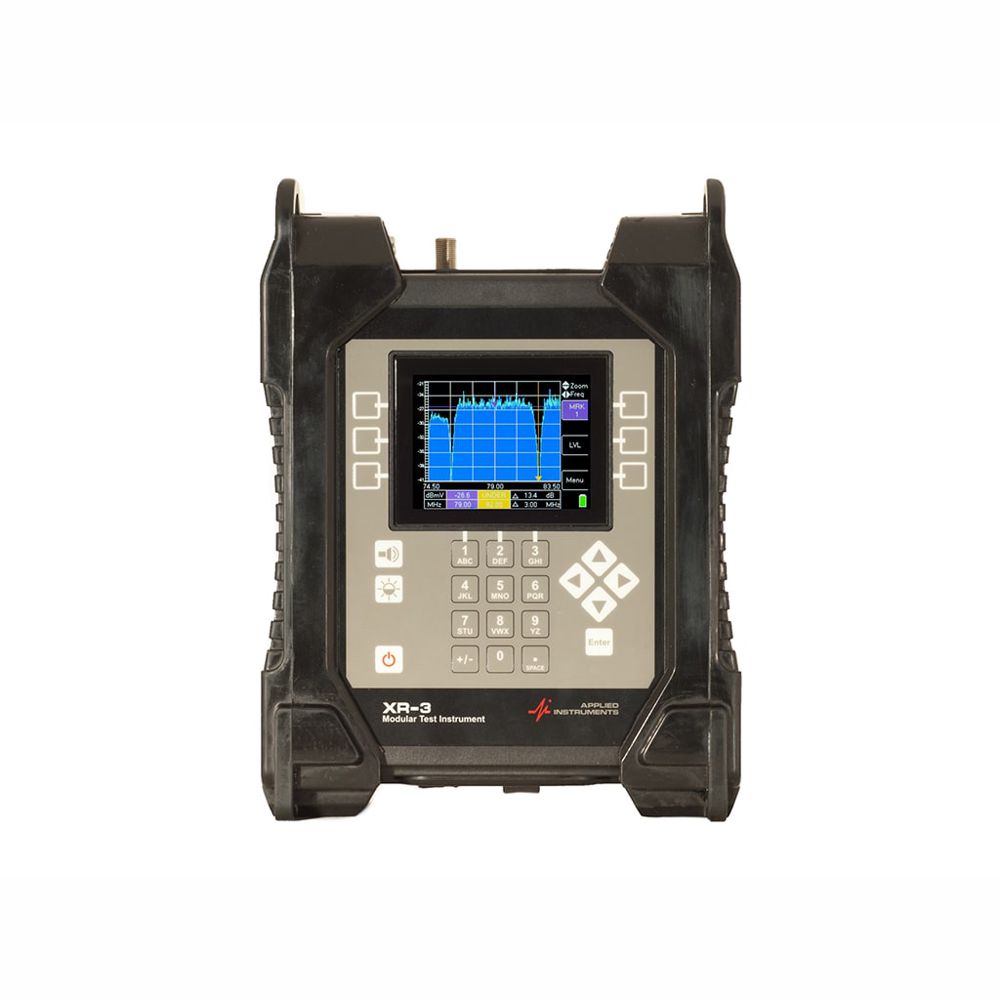

XR-3 Modular Test Instrument

$975.00 – $1,525.00 Each

The XR-3 is a revolutionary test instrument platform. The base unit is a rugged chassis, display, and portable power supply that accepts easily swappable modules for test signal measurement purposes.

The XR-3 is economically efficient because it allows you to choose only the test modules that your application requires. In the future as your testing needs change, you’ll need only a new module, not an entire instrument.

Test modules that “slide and click” into the XR-3 available now include DBS satellite, VSAT satellite, and cable TV / off-air broadcast. Other modules will follow.

The XR-3 platform is ideal for installers and private cable operators that demand fast, easy signal measurements today and in the future.

Full Description & Specs
Ships in 1 to 2 weeks1 Year Limited Warranty
Safe Checkout

  • Durable case with rubber shock guards
  • Color graphic LCD screen, sunlight readable display
  • Glow-in-the-dark numeric keypad with arrow key controls
  • Rechargeable / Easily Replaceable Li-Ion battery
  • USB computer interface for firmware updates
  • Operates while charging via AC
  • Quick charge battery with universal AC or vehicle 12 VDC
  • Modular design for longer life and more flexibility
  • Accepts various easily-swappable modules (sold separately)

Additional information

Weight 3.5 lbs
Dimensions 8 × 8 × 3 in
Select An Option

XR-3 Base Unit Only, XR-3 with Cable Air Modul XR-CA-02, XR-3 with DBS Module XR-TS2-01, XR-3 with VSAT Module XR-S2XACM-01

Brand

Applied Instruments

Applied Instruments has been Manufacturing RF Test and Measurement Equipment since 1986 Applied Instruments designs and manufactures RF test equipment used in the Satellite and Cable Television sectors of the Telecommunications Industry. Product lines include signal measurement meters, test signal generators and signal switches. Customers include the major satellite and cable television service providers and their contractors and equipment manufacturers. Applied Instruments' equipment is primarily used for the installation and maintenance of the service providers' networks, or to ascertain performance thresholds by their equipment manufacturers. Other market segments using Applied Instruments' equipment include commercial, institutional, and military for their delivery of voice, video, and data via RF signals. Toner Cable is a stocking distributor for Applied Instruments products.
XR-3 Spec-Sheet
