Z-Band Z-Balun UNV (ZBT0010257)
$170.00 Each

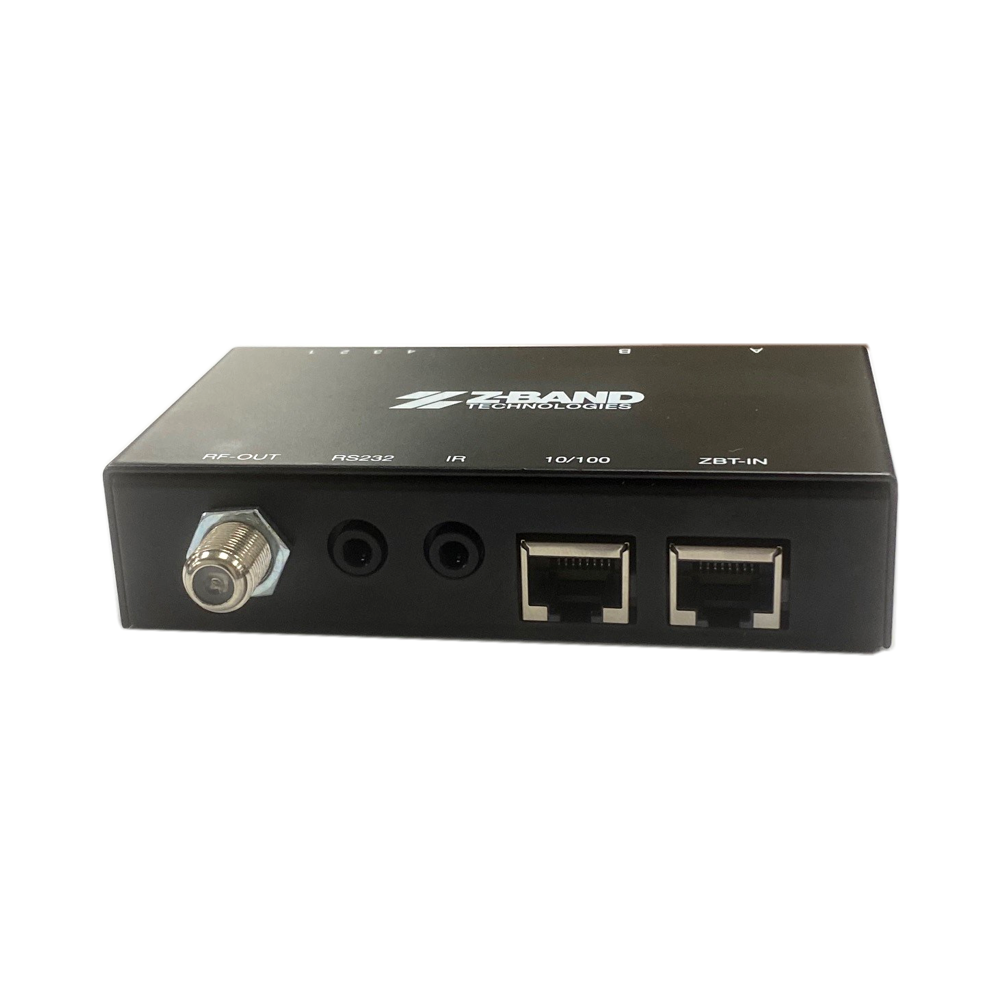

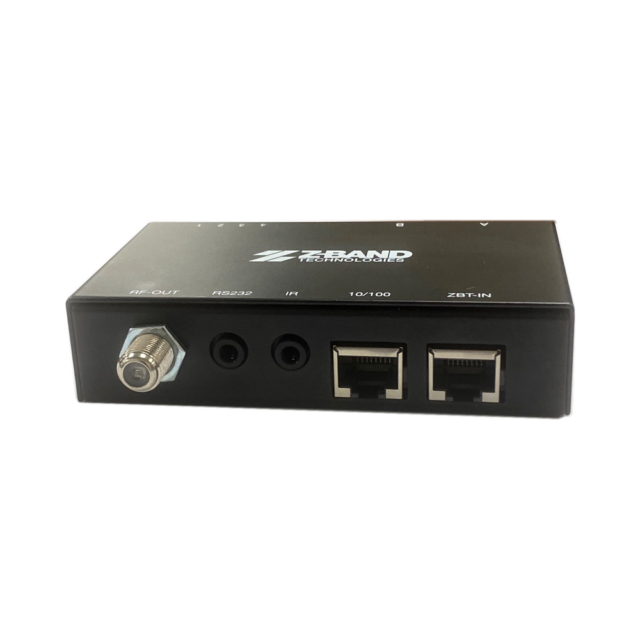

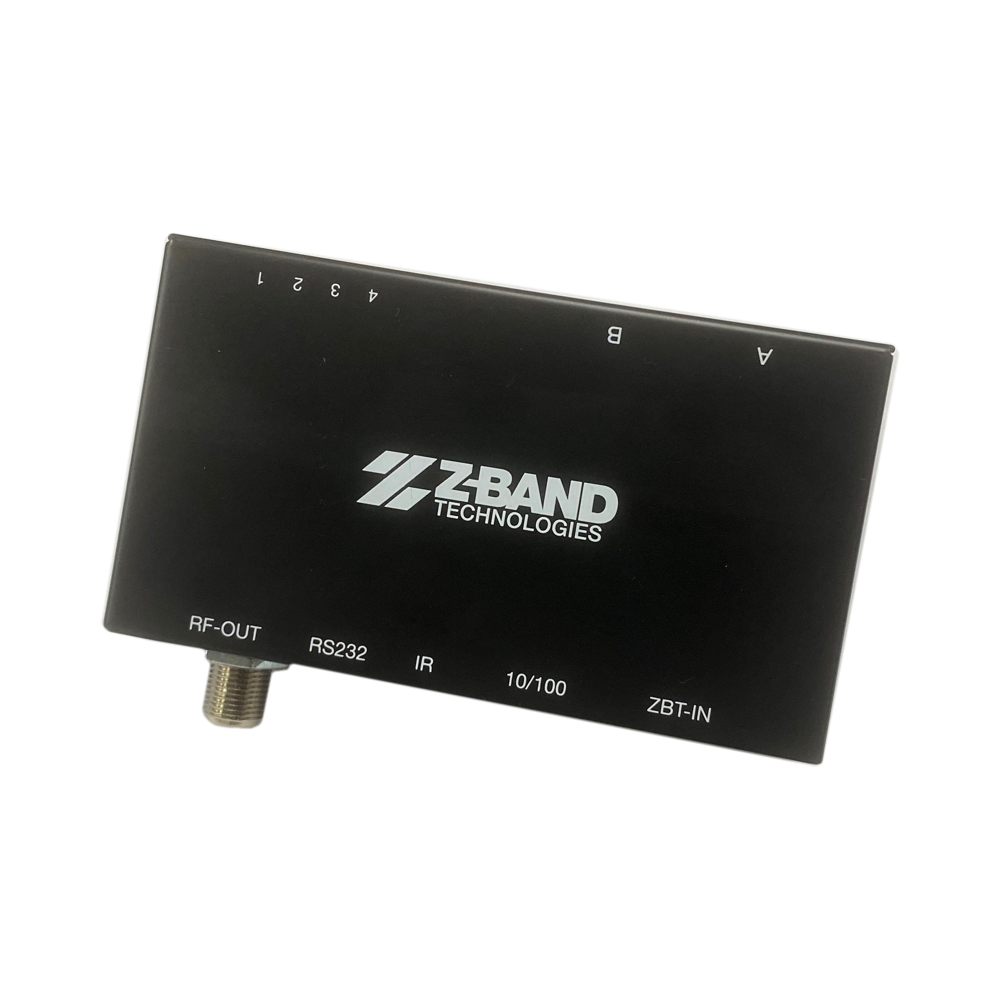

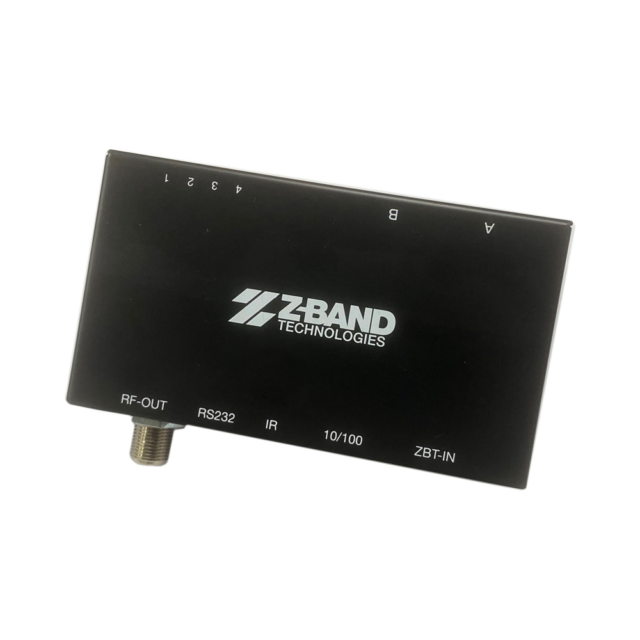

The Z-Balun UNV is one of the essential components of Z-Band’s video distribution system. It is located at the end points of the system and permits a TV or other devices with an RF Tuner to be connected to a Z-Band system for HDTV over CAT6 or better cable. The Z-Balun UNV calculates the approximate distance from the Z-Band Distribution unit, then applies an appropriate balance of signal conditioning to ensure the correct amplitude from the RF-OUT F-connector jack. The ZBT-IN jack is connected to the Z-Band Distribution unit through the infrastructure over CAT6 cable. This provides both RF and ethernet connectivity in addition to RS232 and IR controls all over a single cable.
Ships in 3 to 5 days1 Year Limited Warranty
- Signal conditioning is automatic by default with manual override available for customized applications.
- Provides unique identification signature to a Z-Distribution unit for port activation.
- Compatible with ZHC, HD860, 1000, & Z-REG generations of Z-Band Distribution units.
- With the optional server-based web GUI (ZHC-Insight), users can remotely change the signal conditioning parameters, send RS232 and IR commands to TVs, power-off, and check balun connectivity and serial numbers/locations.
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.1 × 2.3 × 1 in |
Brand
Z-Band Video
The Leader in Enterprise Video Distribution Systems Z-Band's Z-TV system is a modern RF video distribution system that sends CATV/MATV video over CAT 6 cable. Z-TV was designed to help customers eliminate coax, achieving convergence of all media onto a single cabling infrastructure. Z-TV systems utilize two core pieces for distribution of television signals; the Z-Distribution hub and Z-Balun. Our Z-TV system stands out for its intelligence, and the ability of the Z-Distribution unit to communicate with other Z-Distribution units and Z-Baluns to deliver consistent picture quality to 1000+ TVs in a self-adjusting system. Since 1999, Z-Band systems have been deployed in some of the most prominent buildings in the United States. Z-Band’s knowledgeable staff have designed hundreds of distribution systems, using Z-Band’s reliable Z-TV systems to support over 100,000 televisions in the United States.
